Sound Reflective Materials Floor To Ceiling Acoustic Partition Wall For Hotel
Product Details:
| Place of Origin: | China,Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 65 mm acoustic wall partition |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 92 / 126 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Height: | Less Than 4 M | Width: | 800-1300 Mm |
|---|---|---|---|
| Surface: | Leather,fabric,melamin | Open Style: | Sliding And Folding |
| Function: | Sound Insulation | Application: | Hotel,banquet Hall,restaurant |
| Thickness: | 65 Mm | Product Name: | Acoustic Wall Partition |
| Service: | OEM Service | ||
| High Light: | acoustic operable wall,movable acoustic partition walls |
||
Product Description

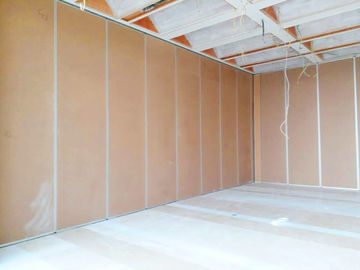

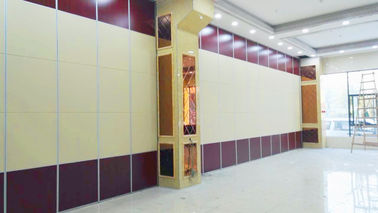

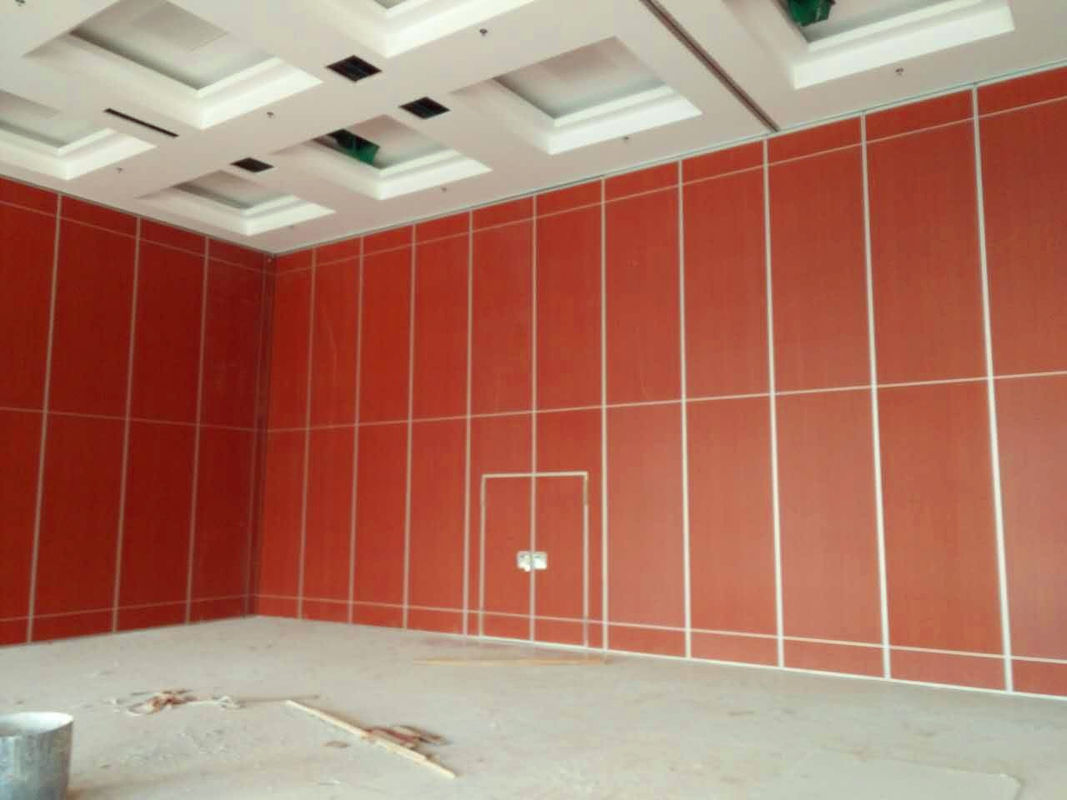

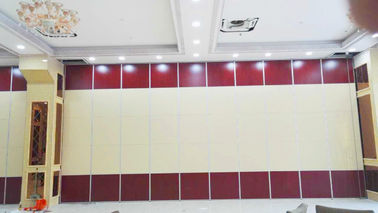

Sound Reflective Materials Floor to Ceiling Sliding Acoustic Wall Partition for Hotel
Specification:
The acoustic wall partition has a simple operation that can be a centre fold or an end folding system which can be either top hung or floor track supported.The panels consist of a timber construction with aluminium frame, integrated seals and multiple acoustic infills to provide a good level of sound reduction.
Feature:
Divide the whole area into a number of rooms.
Provide privacy to the inmates from sight and sound.
Are fashionable in design, sizes and finishes customization.
Occupy lesser area.
Ceiling tracks, no floor track.
Sliding and folding.
Easily operate by manual in any position.
Advantage:
Long-term use: with more economy and higher decorative, beautiful and safe, will not scratch the skin.
Cost savings: installation does not affect the construction of smallpox and the ground.
Various forms: optional with a variety of occasions partition wall, can be customized according to customer requirements.
Easy combination: in the re-assembly can make full use of building materials.
Material environmental protection: selection of high-quality melamine particleboard, sound insulation and sealing a good variety of accessories a variety of options.
Technical information:
| TYPE | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | ||
| Track system | Single or twin point | ||
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. | |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 500 - 1200mm 1' 5/8" -- 4' | 500 - 1200mm 1' 5/8" -- 4' | 500 - 1200mm 1' 5/8" -- 4' |
| Frame | Aluminum | Aluminum | Aluminum |
| Surface material | 9mm | 9mm | 12mm |
| Fire safety | Optional class I | Optional class I | Optional class I |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
| Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle | ||
| Locking | Optional lock to passing doors | ||
| Passing doors | Single open in one panel or double open in two panel | ||
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
Acoustic performance:
Our sliding partition walls are consistently rated with the highest acoustical performance in the industry in real life environments not just in the Lab.
Identify Sound Flanking paths to reduce sound transmission to and from the entire acoustical envelope,walls, ceiling, floors, air ducts, windows, etc.
Determine optimal sound absorbing material to help minimize the level of sound generated in your space.
Sound proofing maximization.
Provide stylish acoustical design solutions.
Sound testing provided by us or independent sound testing company.
Our service:
Smooth out cosmetic and surface damage.
Replacement of seals and activation hardware.
Reconditioning of trolleys, track, intersections and switches.
Relocation and rerouting of existing operable walls.
Demolish and replace with new acoustical partitions.
Improve soundproofing of partition walls and building envelope.
Repair and adjust to factory specification.
