Classroom Movable Partition Walls Ceiling Sliding Aluminium Track
Product Details:
Place of Origin: | China,Guangzhou |
Brand Name: | BUNGE |
Certification: | ISO9001 |
Model Number: | Series 65 mm movable partition wall |
Payment & Shipping Terms:
Minimum Order Quantity: | 10 square meters |
---|---|
Price: | 87 / 136 dollar per square meter |
Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 5000 square meters per month |
Detail Information |
|||
Product Name: | Movable Wall Partition | Height: | Less Than 4 M |
---|---|---|---|
Surface: | Melamine,fabric,leather,plywood | Service: | OEM Service |
Application: | Banquet Hall,hotel,restaurant | Color: | Custom Design Color |
Thickness: | 65 Mm | Material: | MDF Board+Aluminium |
High Light: | movable walls on wheels,movable partitions systems |
Product Description

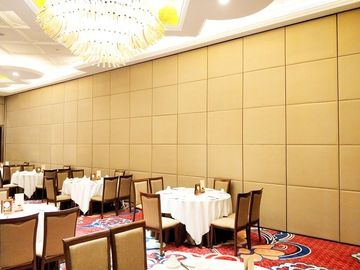

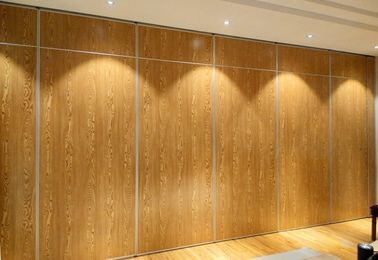

Ceiling Sliding Aluminium Track Acoustic Partition Classroom Movable Wall
Description:
The movable partition is a kind of operable wall that can divide a large space into a small space or a small space into a large space at any time according to needs and has a general wall function. It can serve as a multi-purpose room with multiple functions.
The movable partition has the characteristics of easy installation, reliability, industrial production, fire prevention, and environmental protection.
Feature:
No floor rails: Top hung system without the need for a floor track.
Stable and safe: Stable and reliable after the partition, easy to swing.
Sound insulation: Sound insulation effect, the maximum sound insulation up to 570B, we can offer various levels of sound reduction.
Insulation energy saving: Excellent insulation performance, according to different seating rate, the large space is divided into small space to reduce air conditioning power consumption.
Efficient fire: The use of highly efficient fire prevention materials, fire performance is good.
Retractable and flexible: Retractable top and bottom seals ensure effortless movement of panels, numerous panel stacking options for complete flexibility,only a person can complete the whole process of cutting off.
Technical information:
Panel Suspension | Top hanging system without the need for a floor track. |
Panel Width | Each panel 600mm-1200mm. |
Track | Aluminum Or Steel Track |
Roller on panel | Single or Double Roller |
Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
Top and bottom seals | Top and bottom pressure retractable seals ensure effortless moved and locked. |
Module | 700mm - 1200mm maximum. |
Panel stacking | Numerous panel stacking options for complete flexibility. |
Panel Surface | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
Finishes | Satin anodized or polyester powder coating to all exposed aluminium components available in a wide range of colour as standard. |
Advantage:
Long-term use: with more economy and higher decorative, beautiful and safe, will not scratch the skin.
Cost savings: installation does not affect the construction of smallpox and the ground.
Various forms: optional with a variety of occasions partition wall, can be customized according to customer requirements.
Easy combination: in the re-assembly can make full use of building materials.
Material environmental protection: selection of high-quality melamine particleboard, sound insulation and sealing a good variety of accessories a variety of options.

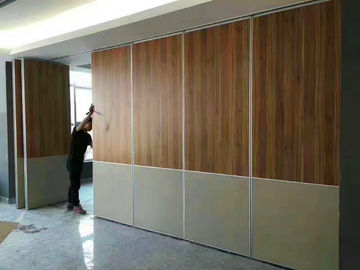

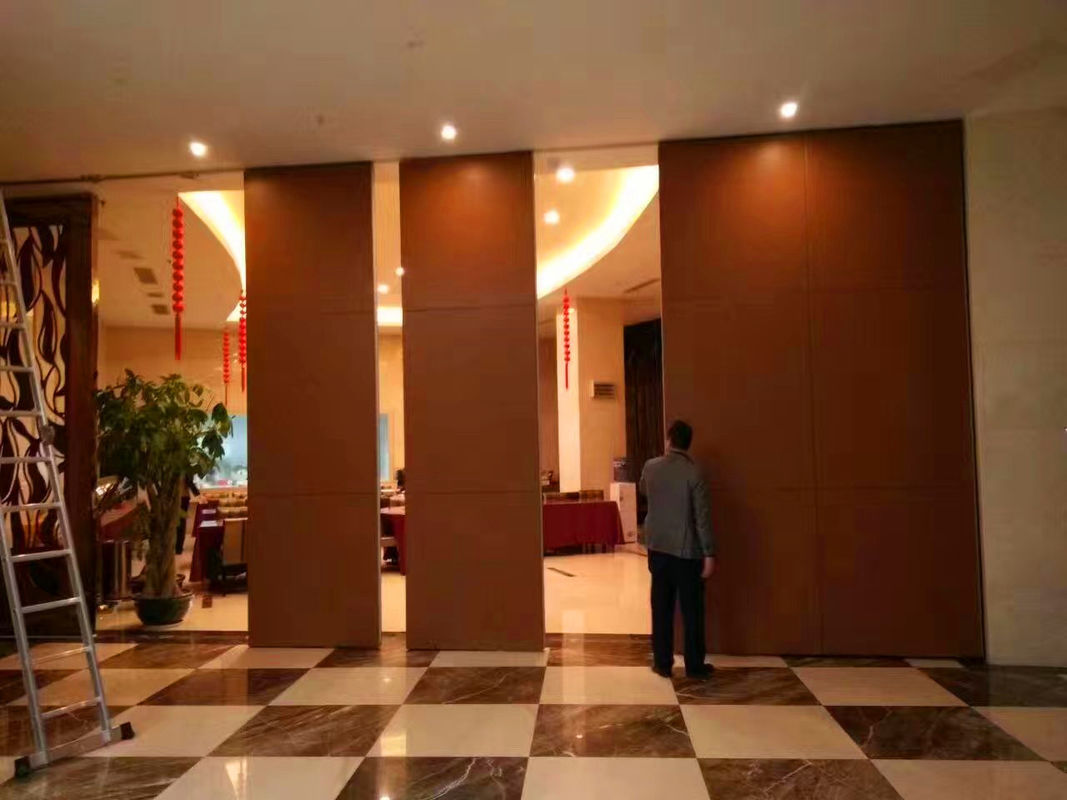

Movable Partition Wall installing:
When the operable folding wall system is supported at the ceiling it runs along an adjustable aluminum upper track that is equipped with bearings inside of carriages.
This enables the walls height to be adjusted by 15 mm. The carriages are installed on every second wall panel and are located at the center of the panel. Because the wall hangs from the ceiling, it is important for the installation of the wall that the wall is attached to something solid (i.e. concrete ceiling, steel structure, wood beam etc.).
In the case that the folding wall is supported by the ground, an aluminum track is installed on the floor where the carriages move the wall and at the top there is a guiding track. The height is also adjustable by 15 mm.
At the end of the wall, a jamb profile is installed to close the last panel and which is also used as a door. This, together with the jamb is installed to start the wall and allows for the walls width to be adjusted 20 mm.
