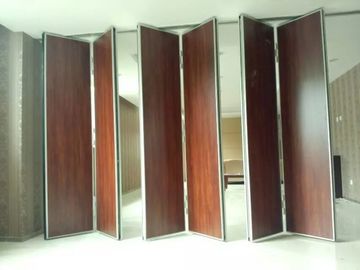

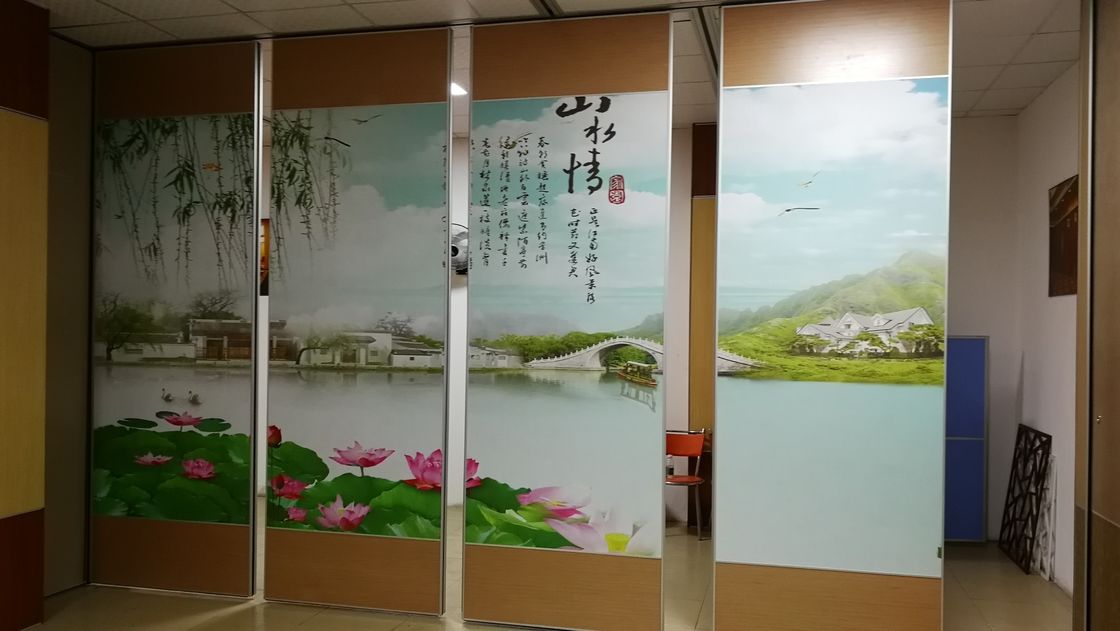

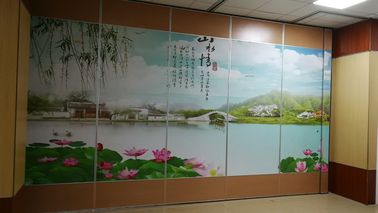

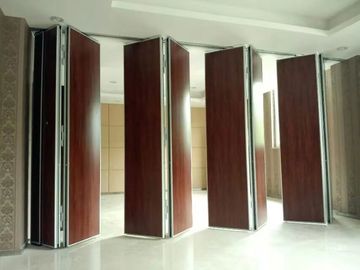

Conference Room Sliding Wall Partition Melamine Surface Ceiling Track Roller

China Conference Room Sliding Wall Partition Melamine Surface Ceiling Track Roller supplier
Conference Room Sliding Wall Partition Melamine Surface Ceiling Track Roller supplier Conference Room Sliding Wall Partition Melamine Surface Ceiling Track Roller supplier Conference Room Sliding Wall Partition Melamine Surface Ceiling Track Roller supplier Conference Room Sliding Wall Partition Melamine Surface Ceiling Track Roller supplier

Large Image :  Conference Room Sliding Wall Partition Melamine Surface Ceiling Track Roller

Product Details:

Place of Origin: China,Guangzhou
Brand Name: BUNGE
Certification: ISO9001
Model Number: Series 85 mm sliding partition wall

Payment & Shipping Terms:

Minimum Order Quantity: 10 square meters
Price: 91 /136 dollar per square meter
Packaging Details: Carton package, MDF batten on four section sides ,foam board on both front face.
Delivery Time: Shipped in 10 days after payment, based on the quantity.
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 square meters per month
Contact Now
Detailed Product Description
Application: Banquet Hall,restaurant Height: Less Than 6 M
Material: MDF Board+Aluminium Thickness: 85 Mm
Color: Multi Color Open Style: Folding And Sliding
Product Name: Sliding Wall Partition

Melamine Surface Sliding Ceiling Track Roller Conference Room Sliding Wall Partition



Description:



The sliding partition is a kind of operable wall that can divide a large space into a small space or a small space into a large space at any time according to needs and has a general wall function. It can serve as a multi-purpose room with multiple functions.



The sliding partition has the characteristics of easy installation, reliability, industrial production, fire prevention, and environmental protection.



Technical information:



Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Panel thickness 65 mm 85 mm 100 mm
Max height 4000 mm 6000 mm 18000 mm
Panel width 500-1200 mm 500-1200 mm 500-1200 mm
Face material 9 mm 9 mm 12 mm
Pass doors Single door or Double door
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw



Finish Material

Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)



Conference Room Sliding Wall Partition Melamine Surface Ceiling Track Roller



Feature:



Top hung system without the need for a floor track.


Retractable top and bottom seals ensure effortless movement of panels.


Concealed or exposed panel edge profiles.


Numerous panel stacking options for complete flexibility.


Extensive range of surface finishes available, easy construction and transportation.


The system offers various levels of sound reduction.


Combines elegance with robust construction.


Allow Customization.



Track adjustment:



1. Remember that the rails are loose enough on all brackets. Guaranteed track pause time.


2. Tighten all rail connections and adjust the rail height correctly. The rail mounting direction must also be straight and horizontal.


3. In the installation of track facilities, sound insulation and mineral wool are necessary for installation.


4. There are "L", "T" and "Ten" spurs for the track. There are left and right points for the connection of the steering. It is generally not

recommended to use the "10" spur. L and T are trimmed to their corresponding size, and their position is indicated by a numerical marker.



Conference Room Sliding Wall Partition Melamine Surface Ceiling Track Roller



Sliding partition wall benifits:



Hinged pair panels for quick andeasy operation.



Robust aluminum frame construction for demanding environments.



Room divider wide range of surface finishes.



Partial and fully operating panels available.



Parition divider just only top hung supported without floor track.



We can offer:



A full professional design service.


Survey and installation guide.


Using top quality materials and components.


A fully experienced work team.


Maintenance contracts to ensure your valuable asset remains in full work order.
