Acoustic Material System Operable Sliding Partitions Walls For Hotel Decorative
Product Details:
| Place of Origin: | Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ASTM E90 |
| Model Number: | 85 mm sliding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ |
|---|---|
| Price: | US $60-105 per square meter. |
| Packaging Details: | Carton package, MDF batten on four section sides , foam board on both front face. Outside with wooden boxes. |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Sliding Partition Walls | Feature: | Sound Proofing |
|---|---|---|---|
| Color: | Accept Customized | Application: | Banquet Hall,hotel,ballroom |
| Panel Width: | 500 Mm--1220 Mm | Finish: | Melamine |
| Height: | 2000 - 6000 Mm | Style: | Folding Sliding Doors |
| High Light: | acoustic sliding partition,sliding folding partition |
||
Product Description

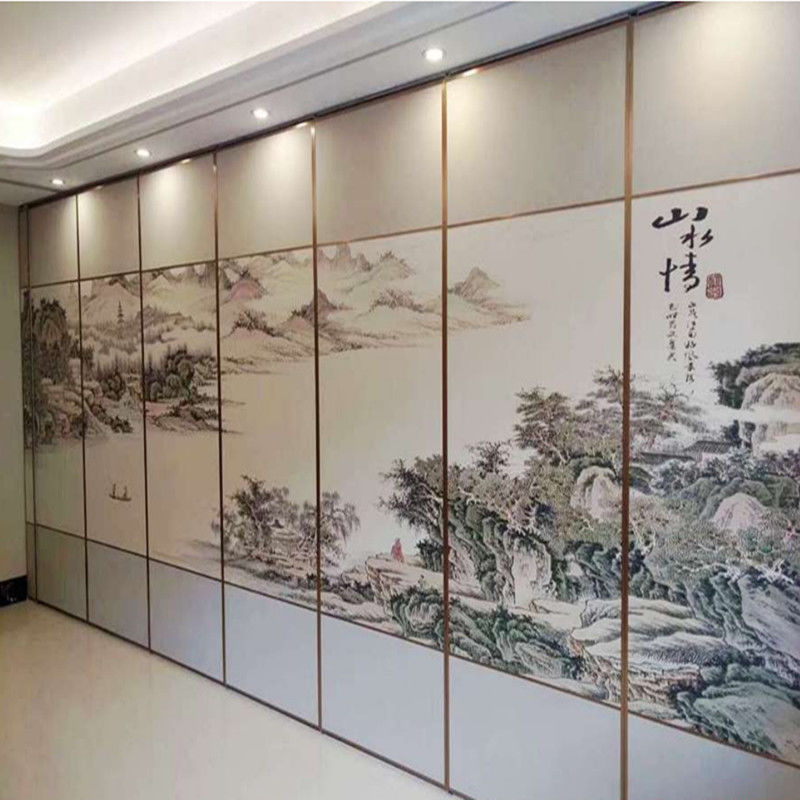

Banquet Hall Decorative Acoustic Material System Operable Sliding Partitions Walls
Sliding partition walls features:
1. Overhead Type track: No need to fix floor track, will not destroy the overall decoration effect;
2. Stable and safe: Each partition panel can stand independently, not easy to swing;
3. Soundproofing and Environmental: Effective sound insulation, max acoustic coefficient can be more than 50 dB;
4. Heat Insulation and Energy Save: Good heat-insulating property, can divide large space into small one according to the attendance rate to reduce the air conditioning power consumption;
5. Effective Flame Retardant: Using effective fireproof materials to make better fireproof performance;
6. Elegant Appearance: The surface decorating can be the same ad the indoor decoration;
7. Retractable and flexible: the partition is freely retractable and flexible, and one person can complete the whole process of partitioning;
8. Convenient Collecting: Can collect the partition panels in the cabinet, will not affect the overall view.
9. Wide range of applications: can be used in conference halls, exhibition halls, restaurants, high clean factories and offices;
Sliding partition walls construction method
2.Sliding partition walls installation: according to the design drawing, draw on each partition panel to mark the line wheel, fix the wheel with screws on the partition board top; Then the panel be put into track, let each panel in the perpendicular to the ground; Test and push-pull flexible rotation, and finally to fixed connection.
3.Debugging: sliding partition walls panel need to discretion, sealing and so on debugging after installed. Then cleaning up the panel, complete the installation work
Bunge Sliding Partition Walls Systems-Technical Information
|
Panel Suspension
|
Top hunge system without the need for a floor track.
|
||
|
Panel Width
|
Each panel 600mm-1200mm.
|
||
|
Track
|
Aluminum OR Steel Track
|
||
|
Roller on panel
|
Single or Double Roller
|
||
|
Panel Frames
|
Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.
|
||
|
Top&bottm seals
|
Top and bottom pressure retractable seals ensure effortless moved and locked.
|
||
|
Module
|
700mm - 1200mm maximum.
|
||
|
Panel stacking
|
Numerous panel stacking options for complete flexibility.
|
||
|
Panel face
|
MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
|
||
|
Finishes
|
Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard.
|
||
Sliding Partition Walls Details

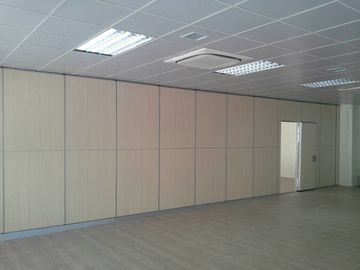

BUNGE sliding partition walls are used to divide meeting rooms, conference rooms, restaurant and banquet halls etc., it provides convenient and effective space management solutions, the panels move on a ceiling track with no requirement of floor guides or rails, its has been extensively applied to hotel industry.
BUNGE Factory offers products and service with the end user in mind. We build in features that provide benefits to the owner over the life of the partition. Features such as protective edge trim will keep your partitions looking good for many years to come.
The sliding partition walls consist of a series of interlocking flat panels and the fast set retractable top and bottom seals provide the easiest in-field operation, a simple half-turn of the waist high removable handle extends or retracts the sound seals.
The quick set retractable seals save the owner a great deal of time during setup and take down
Time means money, especially for clients that rent their facilities for meetings and other functions.
BUNGE factory provides panel finishes such as melamine, fabric, leather, wood veneer, high-pressure laminate or other custom surfaces, panels also be supplied unfinished(raw mdf or plywood) for field decoration to compliment the building environment.
