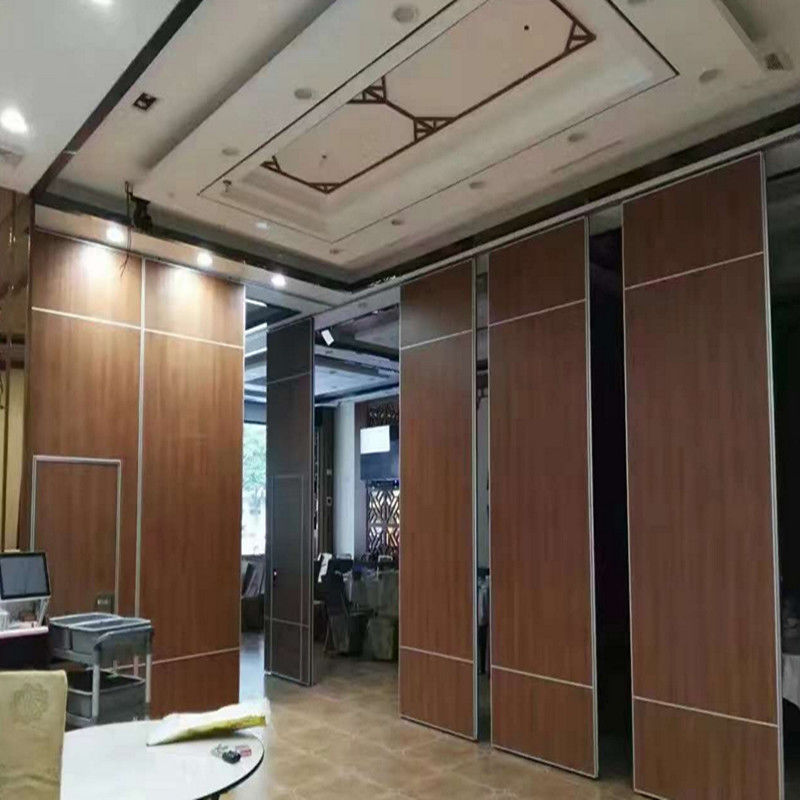

Custom Banquet Hall Soundproof Partition Wall , Folding Room Partitions
Product Details:
| Place of Origin: | Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ASTM E90 |
| Model Number: | 85 mm sound proof partitions |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ |
|---|---|
| Price: | US $60-105 per square meter. |
| Packaging Details: | Carton package, MDF batten on four section sides , foam board on both front face. Outside with wooden boxes. |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Sound Proof Partitions | Feature: | Sound Proofing |
|---|---|---|---|
| Color: | Accept Customized | Application: | Banquet Hall,hotel,ballroom |
| Thickness: | 85 Mm(3 1/4 Inch) | Service: | OEM ODM |
| High Light: | sounproof folding partition,movable soundproof partition |
||
Product Description
Custom Design Acoustic Folding Room Partitions Banquet Hall Sound Proof Partitions
Sound proof partitions application:
1. Sound proof partition is exclusively used as the facade of the separation in the interior space, its' application is more flexible, it usually produce the blocking effect, generally don't do it under the board, some of it even can move.The biggest difference between partition and wall is that a partition is made under the plate, that is to say, the height of the facade is different.
2. The operate method of scalability fully embody the people-oriented concept, flexible tactile touch, spring operation became more safe and durable.
3.Overhead type track, you just need to install the orbit on the floor or on the rack, there is no track on the floor, have no damage on the ground.
4.Unique aluminium materials ,which can be used for painting.
5. Sound proof partition is convenient to collect,plate can be hide in special coffer, have no effect to the whole appearance.
6. Sound proof partition is widely used for many occasions.
Sound proof partitions construction method
2.Sound proof partitions installation: according to the design drawing, draw on each partition panel to mark the line wheel, fix the wheel with screws on the partition board top; Then the panel be put into track, let each panel in the perpendicular to the ground; Test and push-pull flexible rotation, and finally to fixed connection.
3.Debugging: sound proof partitions panel need to discretion, sealing and so on debugging after installed. Then cleaning up the panel, complete the installation work
Bunge Sound Proof Partitions Systems-Technical Information
| TYPE | BG65 | BG85 | BG100 & BG125 |
| Panel suspension | Top hung only | ||
| Track system | Single or twin point | ||
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. | |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
| Frame | Aluminum | Aluminum | Aluminum |
| Surface material | 9mm | 9mm | 12mm |
| Fire safety | Optional class I | Optional class I | Optional class I |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
| Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle | ||
| Locking | Optional lock to passing doors | ||
| Passing doors | Single open in one panel or double open in two panel | ||
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
Sound Proof Partitions Details
Track: The sound proof partitions tracks are made from extruded 6063 - T5 anodized aluminium. The movable partition walls track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.
Panels:The sound proof partitions panels will be made from 12mm MDF boards and shall be 100mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminium frames with interlocking corner construction .The sound proof partitions panel faces shall be finished with selected material.
Panel Surface Finish:The sound proof partitions panel surface will be as per the clients requirement finished either in factory – China or by others . The normal finish such as:laminate,veneer,melamine,fabric etc.
Seals: vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system.Retractable seal drop will be 23 mm.
