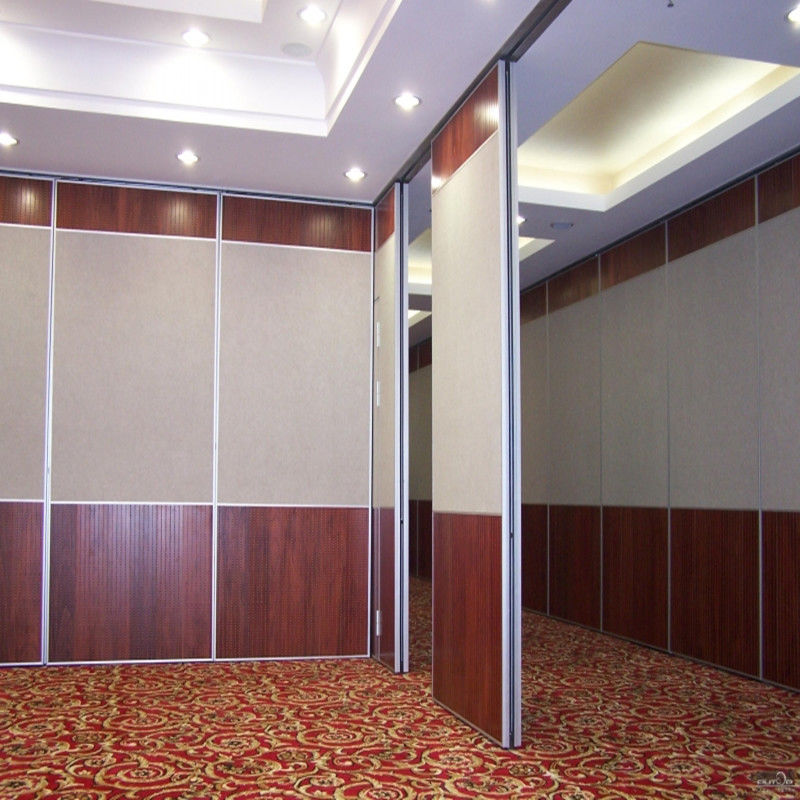

College Classroom Sliding Folding Partitions Panel Thickness 85mm
Product Details:
| Place of Origin: | Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ASTM E90 |
| Model Number: | 85 mm movable partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ |
|---|---|
| Price: | US $60-105 per square meter. |
| Packaging Details: | Carton package, MDF batten on four section sides , foam board on both front face. Outside with wooden boxes. |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Movable Partition Walls | Feature: | Sound Proofing |
|---|---|---|---|
| Color: | Accept Customized | Application: | Banquet Hall,hotel,ballroom |
| Thickness: | 85 Mm(3 1/4 Inch) | Service: | OEM ODM |
| High Light: | movable walls on wheels,movable partitions systems |
||
Product Description
Classroom Soundproof Operable Walls Banquet Hall Soundproof Movable Wall Partitions
Movable partition walls application:
Stadium, Auditorium, Multifunction room, Meeting room, Studio and any other places where seek for high acoustic requirements.
Movable partition walls are specified where functional space delineation is an integral element within the partition project.
Due to their flexibility and cost effectiveness they allow large rooms to be conveniently sub-divided to maximize space utilization.
Principle applications include office interiors, meeting rooms, sports and leisure facilities, schools, colleges, churches, conference and function suites, exhibition centers, banks and restaurants.
Movable Partition Walls Advantages
Bunge Movable Partition Walls Systems-Technical Information
| TYPE | BG65 | BG85 | BG100 & BG125 |
| Panel suspension | Top hung only | ||
| Track system | Single or twin point | ||
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. | |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
| Frame | Aluminum | Aluminum | Aluminum |
| Surface material | 9mm | 9mm | 12mm |
| Fire safety | Optional class I | Optional class I | Optional class I |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
| Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle | ||
| Locking | Optional lock to passing doors | ||
| Passing doors | Single open in one panel or double open in two panel | ||
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
Movable Partition Walls Details
Track: The movable partition walls tracks are made from extruded 6063 - T5 anodized aluminium. The movable partition walls track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.
Panels:The movable partition walls panels will be made from 12mm MDF boards and shall be 100mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminium frames with interlocking corner construction .The movable partition walls panel faces shall be finished with selected material.
Panel Surface Finish:The movable partition walls panel surface will be as per the clients requirement finished either in factory – China or by others . The normal finish such as:laminate,veneer,melamine,fabric etc.
Seals: vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system.Retractable seal drop will be 23 mm.
