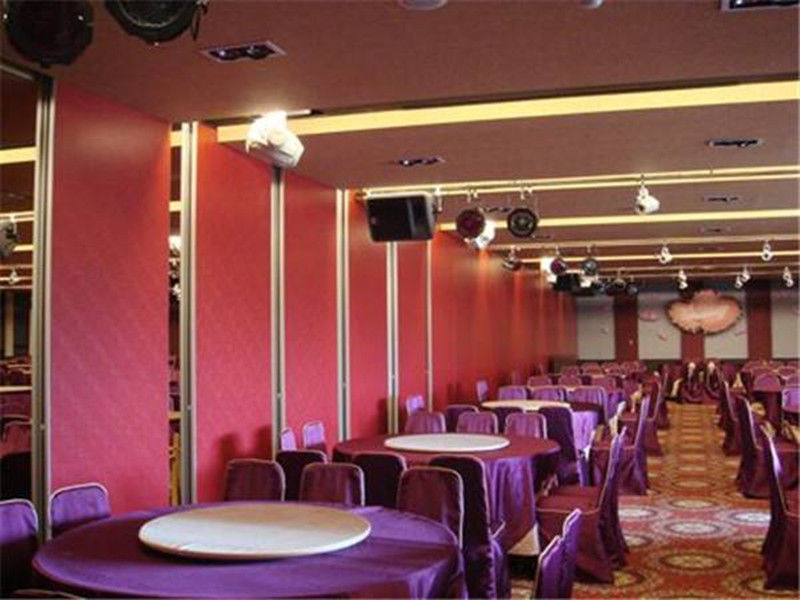

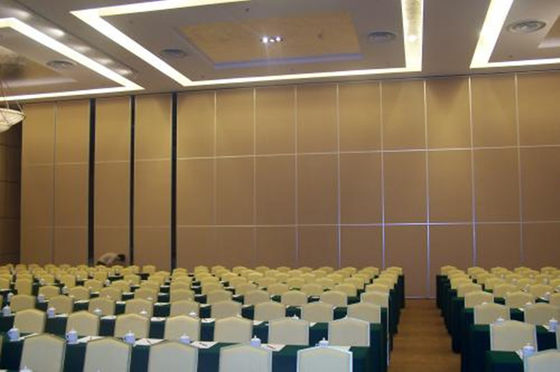

Sliding Aluminium Track Roller Sound Absorbing Wall Partition For Conference Hall
Product Details:
| Place of Origin: | Guangdong,China |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | 65 mm acoustic partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 82 / 135 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Thickness: | 65 Mm | Material: | MDF Board+Aluminium |
|---|---|---|---|
| Height: | Less Than 4 M | Service: | OEM Service |
| Application: | Conference Hall,office | Panel Style: | Laminate,leather,fabric |
| Open Style: | Sliding And Folding | Surface: | Fabric,melamine,plywood |
| High Light: | acoustic operable partitions,movable acoustic partition walls |
||
Product Description

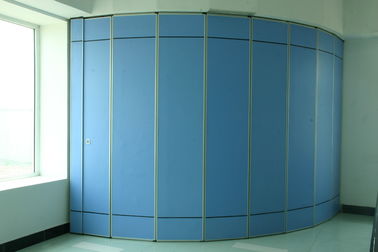

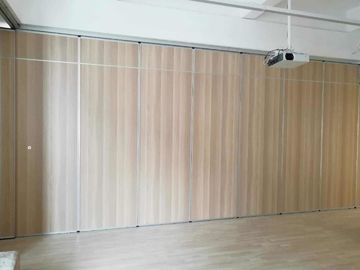

Sliding Aluminium Track Roller Acoustic Wall Partition for Conference Hall
Specification:
Acoustic partition is made of high quality anodized aluminum frame with composite materials.The panel has a standard thickness of 65mm and a width up to 1200mm.Maximum height can reach 4500mm tall.Its vertical seal.together with the horizontal top and bottom retractable seals provide excellent acoustic insulation property of maximum STC 53 db in laboratory setting.Its high performance per dollar value make it becomes the most economical suitable for restaurant,schools,office,church,hospitals,shopping arcades and many other indoor applications product.
Maximize Your Space.
Acoustic partition walls provide a simple and cost-effective way of generating space. We have installed them in a wide range of commercial and public sector environments including offices, exhibition halls, and conference areas.
Quick to install and easy to operate, acoustic partition walls are popular and functional. They maximize space and versatility in the workplace and provide powerful acoustic and fire performance, whilst seamlessly blending into your interior design thanks to a huge variety of possible finishes.
Feature:
Stable and self-supporting frame construction.
Flexibility through wide variety of panel arrangements.
Ease of use & movement due to light in construction.
Smooth and silent while in operation.
Good acoustic performance.
Availability of unlimited choice of finishes.
Installing:
(1)Size of wall: all panels should be installed in accordance with the manufacturers recommendations.
(2)Cutting: all necessary hardware and accessories for a complete job installation are to be furnished by the contractor.
(3)Install the acoustic panels: the installation of acoustic panels should be carried out in a sequence from the left to the right, from upside to downside, the panels are cut to fit on site, traditional woodworking tools are suitable for cutting the panels, if panels are cut using a fine tooth table saw the panels should be cut face up to avoid scratching and at a much slower speed to avoid any tearout or chipping.
(4)Fix on keel:
Wooden keel fixing using nails, staples or screws into prefixed timber battens on the walls via the tongue and groove joint.It also can fixing by: light steel keel.
Instruction:
First, how to open a muti-directional screen. All operations should be gentle and should pay attention to safety. Facing the screen station, use both hands to grab the screen and pull the screen in the direction of the rails; turn the screen in the direction of the rails. After pushing the screen to its place, fix the screen. Tip: When pushing the screen to the intersection, you should pay attention to the direction of the rail, and then gently push the screen along the rail to the position where it should be placed.
Second, how to fix a muti-directional screen. With one hand holding the screen, the other hand puts the handle into the hexagonal steel at 1100mm on the side of the screen, grasps the handle and rotates it 180 degrees in the clockwise direction, and the telescopic seal inside the screen pops up to fix the screen. Insert the handle into the groove on the side of the screen, and pull the handle upwards to open the expansion screen inside the screen to fix the screen. After the entire group of screens are placed, check whether the screen is straight, whether it is on the same plane as the rails, and if it is not straight, retract the upper and lower expansion seals until the screen is flat.
Technical Information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 18000 mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9 mm | 9 mm | 12 mm |
| Pass doors | Single door or Double door | ||
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. | ||
