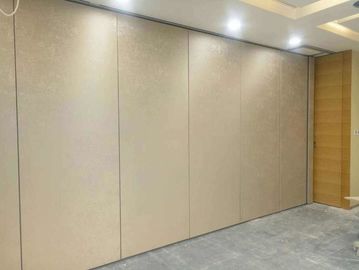

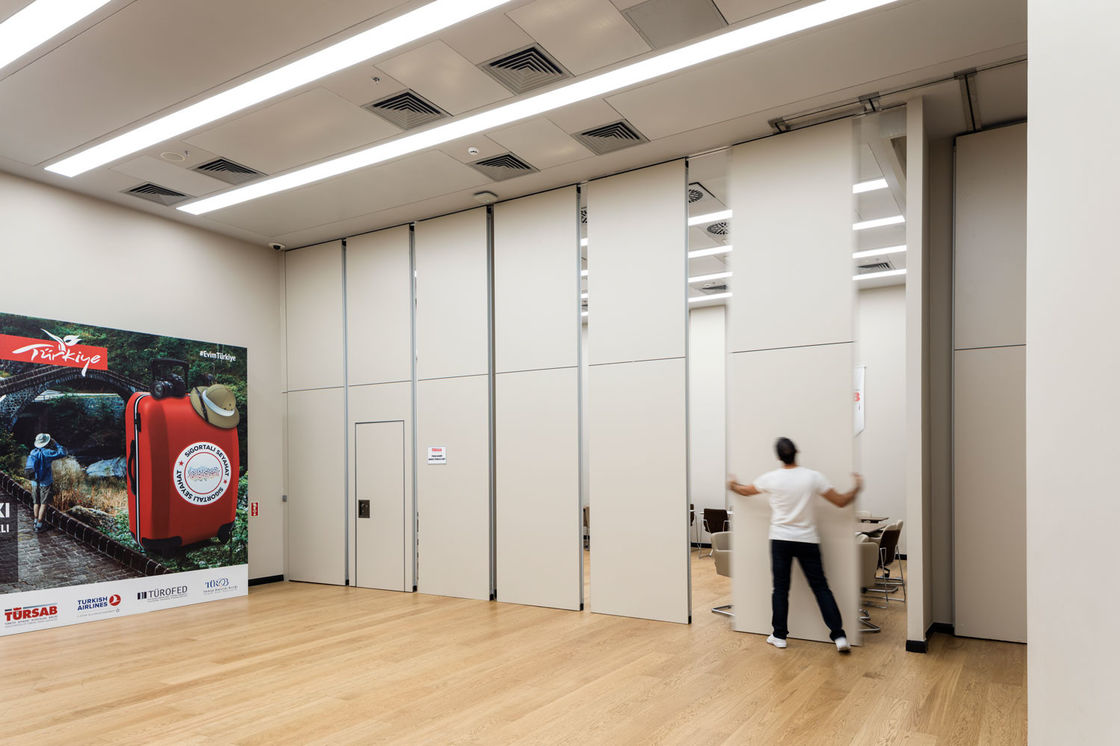

Sound Proofing Foldable Movable Partition Walls For Conference Room / Hotel
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | BUNGE |
| Certification: | ASTM E90 |
| Model Number: | 85 mm movable partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ |
|---|---|
| Price: | US $80-112 per square meter. |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. Outside with wooden boxes. |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 square meters per month. |
|
Detail Information |
|||
| Feature: | Sound Proofing | Application: | Banquet Hall,conference Room |
|---|---|---|---|
| Thickness: | 85 Mm(3 1/4 Inch) | Position: | Interior |
| Height: | 2-6 Meters | Product Name: | Movable Partition Walls |
| High Light: | movable walls on wheels,acoustic movable walls |
||
Product Description
Hotel Foldable Operable Walls Acoustic Movable Partition for Banquet Hall
Acoustic partition walls details
1. Movable partition wall is exclusively used as the facade of the separation in the interior space, its' application is more flexible, it usually produce the blocking effect, generally don't do it under the board, some of it even can move.The biggest difference between partition and wall is that a partition is made under the plate, that is to say, the height of the facade is different.
2. The operate method of scalability fully embody the people-oriented concept, flexible tactile touch, spring operation became more safe and durable.
3.Track installation:Suspension fixed way is at the top of the partition board install the hanging wheel, and connected to the track suspension. The track and hanging wheel should be chosen according to the partition size and load weight.
4.Partition panel installation: according to the design drawing, draw on each movable partition walls panel to mark the line wheel, fix the wheel with screws on the movable partition walls board top; Then the panel be put into track, let each panel in the perpendicular to the ground; Test and push-pull flexible rotation, and finally to fixed connection.
5.Debugging: movable partition walls panel need to discretion, sealing and so on debugging after installed. Then cleaning up the panel, complete the installation work.
Features&Benefit
- Reinforced aluminium frame construction for demanding condition.
- Hinged paired panels or single panel meet your different use.
- Wide range of wall surface finishes and colors
- Passdoor enabling access to neighbouring rooms.
- Stacking one or both ends.
- Top hung and floor with Rubber seals achieving excellent soundproof effect.
- Various levels of soundproof reduction.
Acoustic partition walls technical details
| Description of the whole system | |
| Item | Soundproof office partition walls |
| Partition Height | 2-17 meters |
| Sound Transmission Class(STC) | 32-53db |
| Description of partition accessories | |
| Roller | Imported dupont POM material roller,bearing capacity 225-1300kg |
| Track System | Clear anodized 6063-T6 aluminum double track |
| Surface finish option | MDF,melamine,HPL,fabric,PU,wood veer |
| Junction | "T"junction, "L" juntion, cross/ "X" juntion |
| Glass wool density inside | 64kg/m3 |
| Interior profile | Wooden, aluminum, steel |
| Application | Hotel, banquet hall, ballroom , conference room, classroom, function hall, auditorium |
