Fireproof Veneer Sound Absorbing Boards For Walls And Ceilings 2440mm * 133 mm

China Fireproof Veneer Sound Absorbing Boards For Walls And Ceilings 2440mm * 133 mm supplier
Fireproof Veneer Sound Absorbing Boards For Walls And Ceilings 2440mm * 133 mm supplier Fireproof Veneer Sound Absorbing Boards For Walls And Ceilings 2440mm * 133 mm supplier Fireproof Veneer Sound Absorbing Boards For Walls And Ceilings 2440mm * 133 mm supplier Fireproof Veneer Sound Absorbing Boards For Walls And Ceilings 2440mm * 133 mm supplier

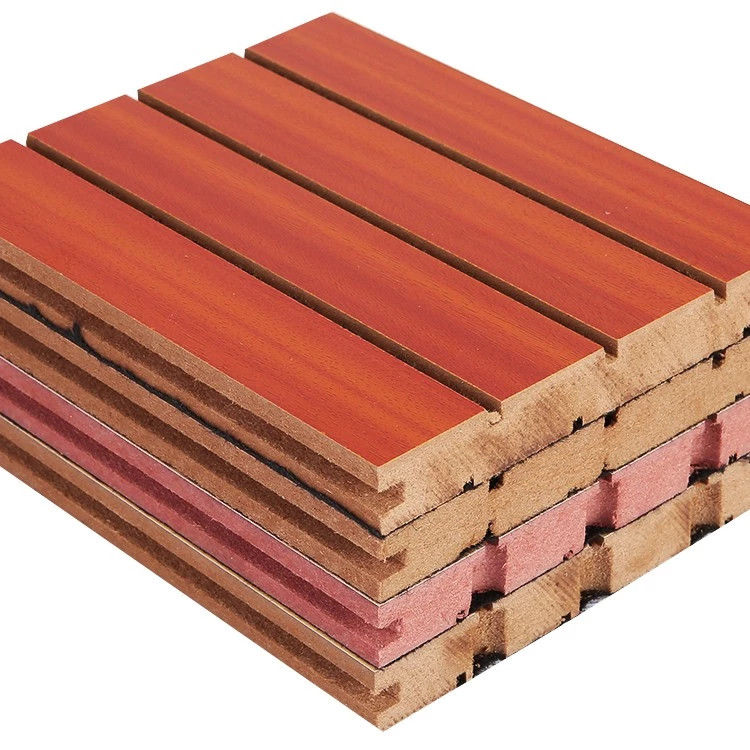

Large Image :  Fireproof Veneer Sound Absorbing Boards For Walls And Ceilings 2440mm * 133 mm

Product Details:

Place of Origin: Guangzhou,China
Brand Name: BUNGE
Certification: ISO9001
Model Number: BG grooved wall panels

Payment & Shipping Terms:

Minimum Order Quantity: No MOQ
Price: US $10-28.8 per square meter.
Packaging Details: Standard paper carton or customized packaging.
Delivery Time: 10-25 days
Payment Terms: T/T, Western Union
Supply Ability: 50000 square meters per month.
Contact Now
Detailed Product Description
Product Name: Wooden Grooved Acoustic Panels Feature: Sound Insulation
Size: 2440 Mm*133 Mm Finish: Melamine
Back Finish: Black Felt Eco-friendly: E0
Thickness: 12,15,18 Mm Color: Accept Customized
Type: Acoustic Wall Panels

Fireproof Veneer Ceiling Sound Absorbing Wall Board Cinema Wood Grooved Acoustic Panels


Grooved acoustic panels installation



1.Pre-installation preparation and installation requirements:



* The installation site must be dry and the minimum temperature should not be less than 10 degrees Celsius.


* The maximum humidity change after installation should be controlled in the range of 40% -60%.


* The installation site must meet the above specified humidity standards at least 24 hours prior to installation.


* Sound-absorbing board must be placed at the installation site for 48 hours, so that the sound-absorbing board to adapt to the indoor environment and fixed.


* Acoustic emission grooved panels must be installed according to the design drawings. Sound-absorbing panels must be arranged to accommodate 300-600mm pitch.


* If wood batten is use as keel, the distance between two battens is generally 500mm.



2. Wooden sound absorbing grooved panels are fixed by special light steel keel



* Fixed acoustic room absorbing material with the keel and screws.


* Insert the fastener H02, H03 with the keel. The distance between the fasteners should allow the sound absorbing plate to be fixed.


* Installation sequence should be in accordance with the principle from left to right, from top to bottom.


* If you need to adjust the position of the acoustic panel, you only need to adjust the clip H02, H03.



Technical Informations

Model type 28/4,30/2,29/3,14/2,13/3,59/5,5/3,40/3
Size 133*2440
Thickness 12,15,18mm
Finish melamine,veneer,
paint UV,PU painting
Base material Standard MDF, Eco-pine wood MDF, Fireproof MDF, Moistureproof MDF, Magnesium Composited MDF
MDF density 680kg/cubic meter~830kg/cubic meter
Backside finish Fiber proof acoustic fabric
Fireproof grade GB8624 2006 B,A
Eco-protection grade E0,E1
Installation aluminum keel and clips, wood frame, gun nail
Backside hole diameter 10 mm
Interval 2~4mm
Veneer type thickness 0.3,0.6mm
Veneer texture Mountain texture, straight line
Veneer tree species

Maple,cherry,Oak, teak,walnut, Sapele,beech,birch,
Chinese walnut,macore,sandalwood

Certification BV,CE,SGS,ISO9001-2008,
Test report Eco protction, sound absorption, flame retardant

Fireproof Veneer Sound Absorbing Boards For Walls And Ceilings 2440mm * 133 mm

Grooved acoustic panels features

1. Using a variety of materials and multilayer structure, and taking advantage of acoustic principle. Good effect on the absorption of high frequency sound



2. Excellent performance on decoration and plenty of color pattens. Can be used in many places



3. The sound absorption coefficient is not affected by the environment and time. Stable performance on sound absorption



4. Inorganic material, A1 grade fireproof



5. Applying the environmentally friendly chemical adhesive and inorganic material which is harmless to human body



6. Not contain formaldehyde, harmful substances such as heavy metals; non radioactive



7. Volume resistivity is 1×106~1×108Ω,which can effectively prevent the electrostatic discharge phenomenon. It also can reduce the dust adsorption that will purify the indoor air and save maintaining cost



8. High strength, and not easy to damage during the transportation, installation and using



9. Waterproof, damp-proof, anti-moth, antifungal and antibacterial. The strength does not slow down even in wet places



10. Comparing to conventional sound absorption materials, the maintaining cost of this product is much low, and also have a long life.



11. Easy to install
