Office Full Height Acoustic Sliding Partition Walls / Movable Room Dividers
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | BUNGE |
| Certification: | ASTM E90 |
| Model Number: | 65 mm sliding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ |
|---|---|
| Price: | US $78-105 per square meter. |
| Packaging Details: | Paper carton,outside with wooden boxes. |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Feature: | Acoustic,sound Proofing | Thickness: | 65 Mm |
|---|---|---|---|
| Size: | Accept Customized | Colors: | Can Be Customized |
| Service: | Free Sample And Design | Width: | 800-1220 Mm |
| Product Name: | Sliding Partition Walls | Height: | 20000-16000 Mm |
| Open Style: | Sliding | ||
| High Light: | sliding folding partition,sound proof sliding partitions |
||
Product Description

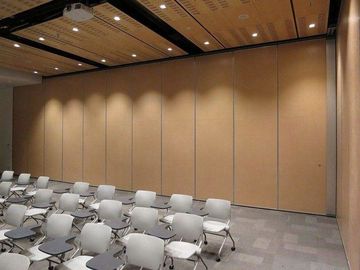

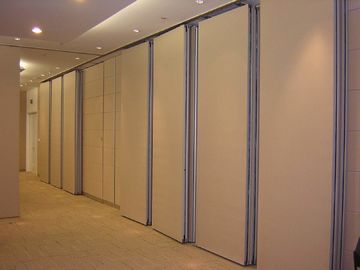

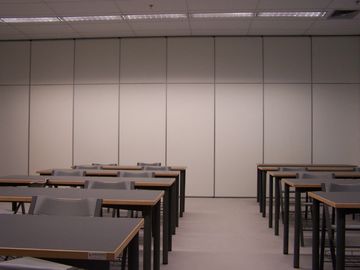

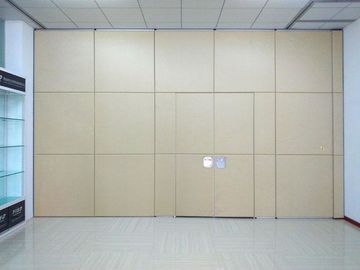

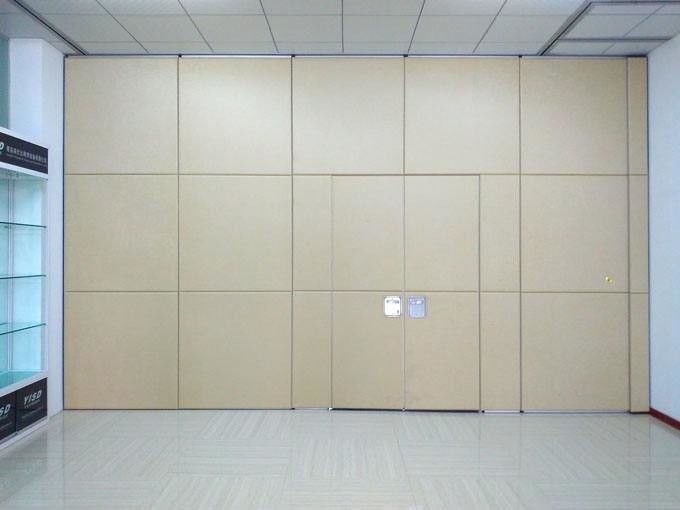

Office Full Height Acoustic Movable Sliding Partition Wall Room Dividers
Sliding partition walls details
Increasingly, flexible and efficient space utilisation is becoming a must for offices, hotels, exhibition centres, studios and similar. With our sliding partition walls system, you can have more choice to arrange your space rather than a room. Is not only provide visual insulation but also sound insulation which give you a more private space, the sound insulation could be 35dB to 55dB, as well as a concreat wall.
Sliding partition wall is made of high quality anodized aluminum frame with environmentally composite materials.The sliding partition walls panels move on a ceiling track with no requirement of floor guides or rails which provide you a better environment.
Type of sliding partition wall :
<A> Galvanized sheet base board: soundinsulation coefficient RW=36dB, the density is 30kg/m2;
<B>MDF or ply wood base board: sound insulation coefficient RW=32dB, the density is 24kg/m2;
<C>Magnesium board base board: sound insulation coefficient RW=26dB, the density is 25kg/m2;
Features & Benefits
Top hung system without the need for a floor track.
Retractable top and bottom seals ensure effortless movement of panels.
Combines elegance with robust construction .
Concealed or exposed panel edge profiles.
Numerous panel stacking options for complete flexibility.
Sealed for life roller assemblies provide smooth and silent movement.
The system offers various levels of sound reduction.
Extensive range of surface finishes available.
Acoustics
The monoplane system offers various levels of sound reduction starting at 30dB through to 54 dB. All of these levels have certification awarded by reputable independent acousticians. They are not based "in-house" test. Copies of certification available on request.
Fire Performance
Class "0" or "1" Spread of Flame Panels are available to your requirements.
This type product has 1 hour and 1/2 hour fire assessments.
Sliding partition walls technical informations
| MODEL | 65 sliding partition wall | 85 sliding partition wall |
| Panel Thickness | 65 mm | 85 mm |
| Panel Width | 680mm-1210mm | 680mm-1230mm |
| Panel Hight | 2000mm-4500mm | 3000mm-6500mm |
| Frame | GB 6063 T6 Aluminium | GB 6063 T6 Aluminium |
|
Acoustic alreduction coefficient(db) |
32db | 45db |
|
Hermetic flex distance(mm) |
45mm | 45mm |
| Weight(kg/m) | 17,19,20,24 | 24,25,28,38 |
| Panel Material |
Class-fibr board,Melamine decorative lamminate board, Gypsum board,Color steel plate ,Fiberboard,Tempered glass |
Class-fibr board,Melamine decorative lamminate board, Gypsum board,Color steel plate,Fiberboard,Tempered glass |
| Panel Surface Finish |
Anodizing,electrophoresis, Powder coating; Wooden grain or customize surface treatment |
Anodizing,electrophoresis, Powder coating; Wooden grain or customize surface treatment |
| Advantages |
65 light-based activities are cut off cut off,their light weight,flexible operation,each door can be a single A hanging round hanging sliding door can be rotated 360 degrees,or two hanging round hanging round slide can turn. |
85 screen-based activities are better off cost, weight,moderate and flexible operation,each door can be a single hanging round hanging sliding door can be rotated 360 degrees,or two hanging round hanging round slide can be Tum can be pushed to move anywhere. Slide show steady and smooth transformation of space diversity. |
| High degree | 2-4.5m | 3-6.5m |
|
The largest rail loading |
250kg/m | 450kg/m |
| Usage |
Widely used in hotels,guesthouses and medium-sized exhibition, multi-functional conference hall. |
Widely used in hotels,luxury suites, function rooms,exhibition center. |
| Installation methods |
slide type, curve type and folding type. |
slide type, curve type and folding type. |
| MODEL | 100 sliding partition wall | Ultrahigh sliding partition wall |
| Panel Thickness | 100 mm | 100 mm |
| Panel Width | 680mm-1230mm | 680mm-1230mm |
| Panel Hight | 5000mm-8500mm | 7000mm-17000mm |
| Frame | GB 6063 T6 Aluminium | GB 6063 T6 Aluminium |
|
Acoustic alreduction coefficient(db) |
60db | 60db |
|
Hermetic flex distance(mm) |
45mm | 60mm |
| Weight(kg/m) | 40,45,48,55 | 60,60,60,60 |
| Panel Material |
Class-fibr board,Melamine decorative lamminate board ,Gypsum board,Color steel plate,Fiberboard,Tempered glass |
Class-fibr board,Melamine decorative lamminate board, Gypsum board,Color steel plate ,Fiberboard,Tempered glass |
|
Panel Surface Finish |
Anodizing,electrophoresis, Powder coating; Wooden grain or customize surface treatment |
Anodizing,electrophoresis, Powder coating; Wooden grain or customize surface treatment |
| Advantages |
100 active partition is partition noise effect of a good,moderated 360 degrees,or both may be round hanging Tum can push the slide to any place.Slide show steady and smooth transformation of space diversiyt. |
Ultra-high partition screens employ heavy-duty steel rails and steel hanging wheels that the effective sliding can amount to 100,000 times,which is a leading technology in partition industry. |
| High degree | 5-8.5m | 7-17m |
|
The largest rail loading |
650kg/m | 1250kg/m |
| Usage |
Widely used in various types of training room,a large hotel,banquet hall. |
Widely used in airports and large exhibition hall and place. |
| Installation methods | slide type, curve type and folding type. | slide type and folding type. |
Q1. Can I have a sample order for sliding partition walls?
A: Of course,we can send the customers a free sample
Q2. What about the lead time?
A:Sample needs 10-20 days, mass production time needs 7-15 days for order quantity more than.
Q3. Do you have any MOQ limit for Partition order?
A: We have no MOQ. Everything can be customized.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea. It usually takes 2-5 weeks to arrive.
Q5. How to proceed an order for Partition?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the drawing and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 3-10 years warranty to our products.
