Customized Soundproof Removable Acoustic Partition Wall 800 - 1220 mm Width
Product Details:
Place of Origin: | Guangzhou,China |
Brand Name: | BUNGE |
Certification: | ASTM E90 |
Model Number: | 85 mm acoustic partition walls |
Payment & Shipping Terms:
Minimum Order Quantity: | No MOQ |
---|---|
Price: | US $78-108 per square meter. |
Packaging Details: | Paper carton,outside with wooden boxes. |
Delivery Time: | 7-15 days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 5000 square meters per month |
Detail Information |
|||
Product Name: | Acoustic Partition Walls | Panel Material: | MDF+Laminate |
---|---|---|---|
Open Style: | Sliding | Feature: | Acoustic,sound Proofing |
Thickness: | 85 Mm(3 1/4 Inch) | Size: | Accept Customized |
Colors: | Can Be Customized | Service: | Free Sample And Design |
Width: | 800-1220 Mm | ||
High Light: | acoustic operable partitions,movable acoustic partition walls |
Product Description

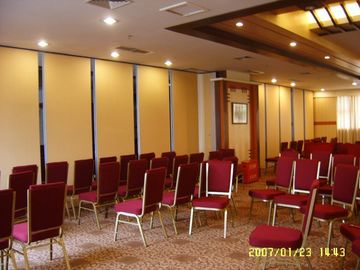

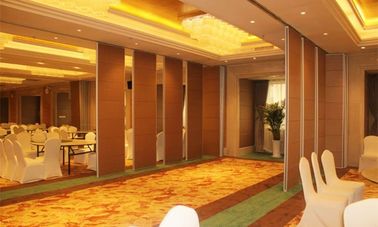

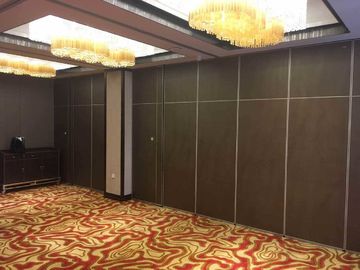

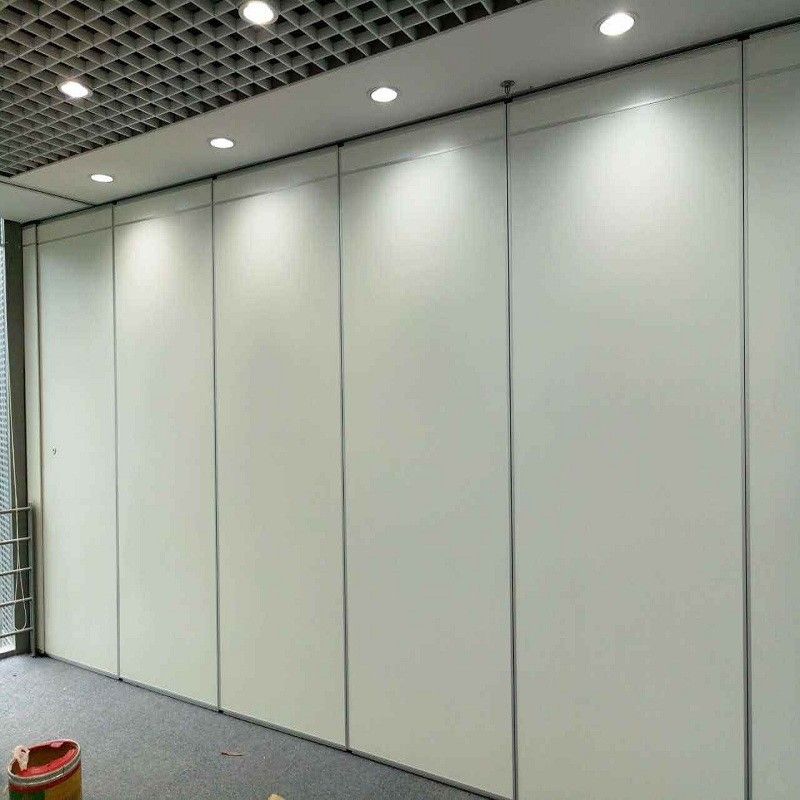

Customized Different Finish Soundproof Removable Acoustic Partition walls For Banquet Hall
Acoustic partition walls details
Size
|
Customized
|
Panel Material
|
Plasterboard/MDF board/HDF board/Cellular board,etc
|
Surface Material
|
Melamine/Galvanized steel/Wood,etc
|
Frame
|
Stainless steel/Aluminium alloy
|
Thickness
|
85 mm |
Open style
|
Sliding/Folding
|
Soundproof
|
36-45dB
|
Color&Pattern
|
Various color&pattern offered also can be customized
|
Certificate
|
ISO9001,ASTM E90
|
Acoustic partition walls advantages
Use one wall to turn a large meeting room into two smaller ones.
Your office can be changed according to your needs - easily and quickly.
Within no time, you can have several separate rooms.
You do not need to build anything - you will get more space for significantly less money.
Visible aluminium profiles – anodised or powdercoated.
A wide range of panel finishes – laminated, veneered, covered with cloth or sheet metal, or even as rock imitation; attractive and very durable HPL film suitable for highly exposed areas.
Solid panels can be installed in combination with partially or fully glazed panels.
We also provide panels with a special acoustically absorptive surface.
Acoustic partition walls technicals
Series | BG65 | BG80 / BG85 | BG100 & BG125 |
Panel suspension | Top hung only | Top hung only | Top hung only |
Track system | Single or twin point | Single or twin point | Single or twin point |
Panel thickness | 65mm | 80mm / 85mm | 100mm |
Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
Max height | 4000mm | 6000mm | 18000mm |
Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
Face material | 9mm | 9mm / 12mm | 12mm |
Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
Acoustic partition walls usage
Each acoustic partition wall movable piece can be rotated 360 degrees which makes it flexible.
Furniture type acoustic partition walls increases the internal space of residential changes.
Acoustic partition walls not only can save office space, but also make a simple modern environment.
Traditional building partitions closer to functional requirements and tastes.
Modern building zone creates a rich and personalized interior space.
