Product Details:

Place of Origin: Guangzhou,China
Brand Name: BUNGE
Certification: ASTM E90
Model Number: 85 mm folding partition walls

Payment & Shipping Terms:

Minimum Order Quantity: No MOQ
Price: US $78-118 per square meter.
Packaging Details: Paper carton,outside with wooden boxes.
Delivery Time: 12-20 days
Payment Terms: T/T, Western Union
Supply Ability: 5000 square meters per month
Get Best Price Contact Now

Detail Information

Product Name: Folding Partition Walls Application: Banquet Hall, Art Gallery
Width: 600 - 1200 Mm Height: 2000 - 4000 Meter
Weight: 30 Kg/sq Feature: Sound Proofing
High Light:

acoustic folding partition

,

folding room partitions

Product Description

Excellent Quality Banquet Hall Removable Movable Folding Partitions Wall Price



Folding Partition Walls Advantages

  • High Soundproof and High Quality

The Rw for acoustic insulation (acoustic rating from 32dB to 55dB) is a fundamental aspect of movable sound-insulated walls and partitions. Bunge products are manufactured in accordance with strict construction and testing criteria to give a high level of quality. (These characteristics also apply to our special products like access doors that are fitted within wall systems. Furthermore, each individual project is given special attention at the design stage so that the requested sound-insulation is always attained. )

  • Easy to Operate

Movable systems have the characteristic of being very easy to maneuver and position. This is the result of the high quality, long-lasting components. The panels have a tongue-and-grove profile designed to obtain a perfect visual, geometric and sound-insulation continuity solution. An extendable pressure seal element is located at the top and bottom of each panel that provide sealing and panel stability to the floor and ceiling. Access doors, which are available in different sizes, are inserted in the panels and do not exceed the thickness of the wall system. Doors can be single of double leaf. The locking and releasing of the panels is done in an easy and rapid manner by means of a removable handle that operates a mechanical system. Panels are also easily slid on the overhead guide and this is guaranteed by a reliable mono or bi-track device and also because all systems have no floor guide. Panel storage is also extremely simple and can be designed to be hardly visible and various configurations are possible.

  • Design and Technology

Design and technology are the essentials of a successful alliance of partition. The transformation of a large hall into two or more sound-insulated areas which perfectly respond to the requirements of the designer and the needs of the final user without sacrificing style and functionality, can all be achieved by means of Bunge movable sound-insulated walls. In view of the wide choice of finish available, Bunge movable walls can be personalized according to the individual whim or requirement.

  • Widely application

The operable wall series is used wherever room space needs to be fully utilized. Hotels, conference centers, multi-function rooms, banquet halls, offices, training areas, etc. can all benefit from the flexibility of Bunge movable operable walls.



Sound Proofing Removable Collapsible Partition Walls / Movable Room Dividers 0



Folding partition walls technical Information:



Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Panel thickness 65 mm 85 mm 100 mm
Max height 4000 mm 6000 mm 18000 mm
Panel width 500-1200 mm 500-1200 mm 500-1200 mm
Face material 9 mm 9 mm 12 mm
Pass doors Single door or Double door
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw



Finish Material

Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)



Height (maximum height) 3500mm
Width 450~~1200mm
Thickness 65mm
Left and right telescoping 140mm
Stretching up and down 45mm
Push and pull force 20N
Orbital load 225kg/m
Sound insulation coefficient 32DB
Panel material Three amine board

Sound Proofing Removable Collapsible Partition Walls / Movable Room Dividers 1

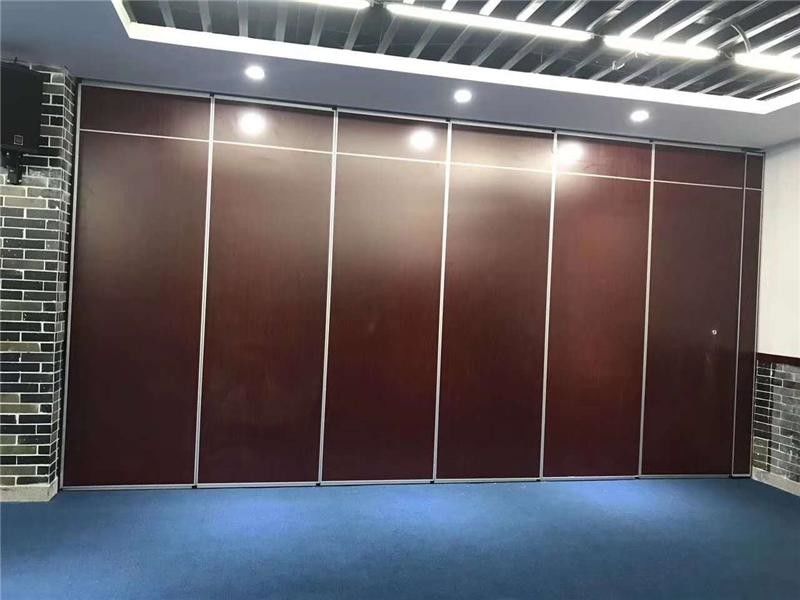

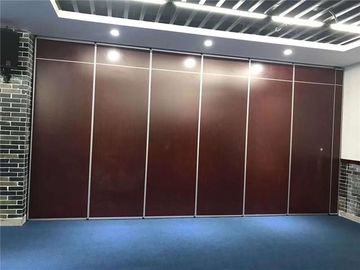

Movable Partition Walls Cases



Project site: India



Model: BUNGE 85 mm movable partition walls



Width: 3*10550 mm,1*6900 mm



Height: 3760 mm



Total: 4 sets, 145 square meters



Finish: Melamine



Color: CS-3087

Sound Proofing Removable Collapsible Partition Walls / Movable Room Dividers 2
