Aluminum Frame Mobile Sliding Office Partition Walls For Function Room
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | BUNGE |
| Certification: | ISO 9001 |
| Model Number: | Office partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ |
|---|---|
| Price: | US $78-125 per square meter. |
| Packaging Details: | Paper carton,outside with wooden boxes. |
| Delivery Time: | 10-25 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Feature: | Sound Proofing | Based Board: | 9/12 Mm MDF Or Plywood |
|---|---|---|---|
| Height: | Maximum 17 Meters | Thickness: | 65, 85 Or 100 Mm |
| Application: | Function Room, Office | Product Name: | Office Partition Walls |
| High Light: | sliding folding partition,sound proof sliding partitions |
||
Product Description

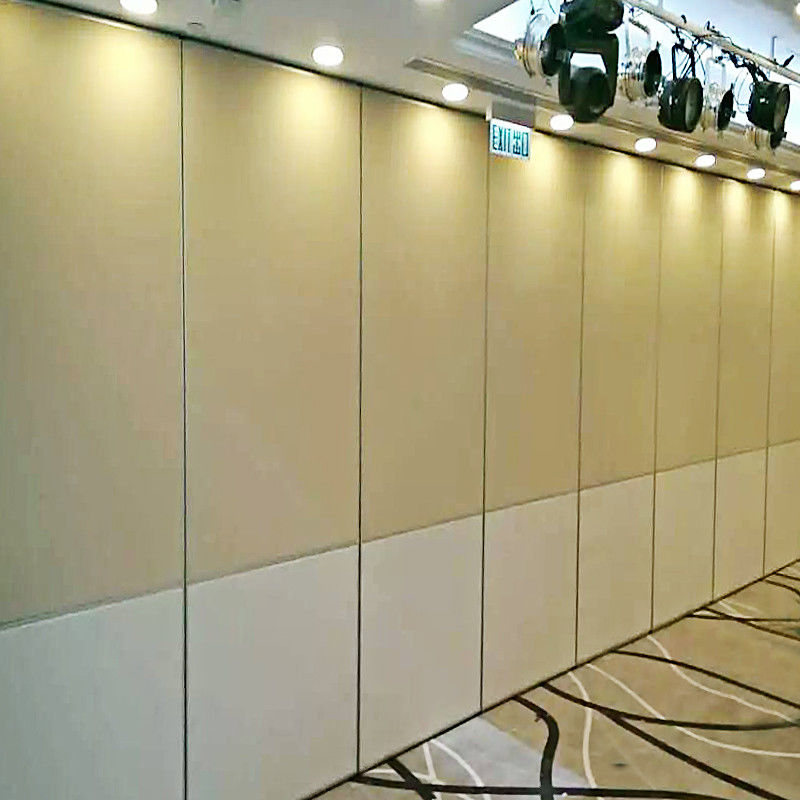

Office Aluminum Frame Movable Sliding Partition Walls for Function Room
Office partition walls accessories
Tracks: Made of good quality anodized aluminium 6063-T5 materials,hanging the office partition walls panels with wheels.
Wheels/Rollers: It is the carrier for the office partition walls,let panels move more flexibly.Pulley bearing is more than 1600 KGS.
Connectors: Made of anodized aluminium 6063-T5 aluminum tracks,“L”, “T”, “＋”types are available.
Rubber/vinyl seal: Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.
Rock Wool: Density of 60kg/m3,help us reduce the noise and heat.
Handle: Operate the retractable being up and down.
Retractable mechanism: Control the movement of the top and bottom seal to form a excellent sound insulation performance.
Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the office partition walls.
MDF board: 9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g.
Office partition walls technical details
| Technical Spec. BUNGE 65 SERIES | ||||||||||
| Model | Weight(kg/m) | Fire Rating(min) | STC Performance | Specification | Carrier | |||||
| Thickness(mm) | Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) | |||||
|
BG65
|
22 | 60min | 32db | 65 | 680-1219 | 2000-4500 | 22.5/35 | 22.5/35 | 140 | #60 |
|
BG65
|
27 | 60min | 38db | 65 | 680-1219 | 2000-4500 | 22.5/35 | 22.5/35 | 140 | #65 |
|
BG65
|
35 | 60min | 45db | 65 | 680-1219 | 2000-4500 | 22.5/35 | 22.5/35 | 140 | #80 |
| Technical Spec. BUNGE 80 SERIES | ||||||||||
| Model | Weight(kg/m) | Fire Rating(min) | STC Performance | Specification | Carrier | |||||
| Thickness(mm) | Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) | |||||
|
BG80
|
30 | 60min | 40db | 80 | 680-1219 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | #60 |
|
BG80 |
38 | 60min | 45db | 80 | 680-1219 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | #80 |
|
BG80 |
47 | 60min | 48db | 80 | 680-1219 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | #100 |
| Technical Spec. BUNGE 100 SERIES | ||||||||||
| Model | Weight(kg/m) | Fire Rating(min) | STC Performance | Specification | Carrier | |||||
| Thickness(mm) | Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) | |||||
| BG100 | 38 | 60min | 43db | 100 | 680-1219 | 5000-17000 | 30/40 | 30/40 | 140 | #60 |
| BG100 | 48 | 60min | 48db | 100 | 680-1219 | 5000-17000 | 30/40 | 30/40 | 140 | #80 |
| BG100 | 55 | 60min | 53db | 100 | 680-1219 | 5000-17000 | 30/40 | 30/40 | 140 | #100 |
Office partition walls features:
1. No rail suspension: the floor has no track, just install the track on the ceiling;
2. Stable and safe: stable and reliable after installing the office partition walls, not easy to swing;
3. Sound insulation and environmental protection: sound insulation effect is good, the sound insulation coefficient can reach 53dB;
4. Insulation and energy saving: excellent thermal insulation performance, according to different occupancy rates, the large space is divided into small spaces to reduce air conditioning power consumption;
5. Efficient fire prevention: It is made of high-efficiency fireproof material and has good fireproof performance;
6. Beautiful and generous: the surface is arbitrarily decorated, and can be combined with the interior decoration effect;
7. Retractable and flexible: the office partition wall is freely retractable and flexible, and one person can complete the whole process of partitioning;
8. Convenient collection: When closing the board, the partition can be hidden in the special storage cabinet, which does not affect the overall appearance;
9. Wide range of applications: can be used in conference halls, exhibition halls, restaurants, high clean factories and offices
