Payment & Shipping Terms:
|Feature:||Sound Proofing||Based Board:||9/12 Mm MDF Or Plywood|
|Height:||Maximum 17 Meters||Thickness:||65, 85 Or 100 Mm|
|Application:||Banquet Hall, Auditorium||Product Name:||Folding Partition Walls|
Aluminum Sliding Door Partitions Folding Operable Partition Wall Details
Folding partition walls details
1)Thickness panel:65mm,80mm,100mm, height from 2meter to 17meter.
2)Top supported without floor track or guide.
3) Clear anodized extruded aluminum tracks and frames,customized powder coated color are available.
4) Rock wool infill,with top and bottom retractable mechanism in the middle and mdf,plywood or plaster base board on both side.
5) Sound insulation coefficien :STC 32db to 53 db, ASTM standard of acoustic tested in HongKong.
6) Available in wide range of finishes.
7) Fast delivery and Rich experiences in oversea project installation guide & supervision.
Folding partition walls technical details
|Series||BG65||BG80 / BG85||BG100 & BG125|
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Track system||Single or twin point||Single or twin point||Single or twin point|
|Panel thickness||65mm||80mm / 85mm||100mm|
|Panel height||Up to 4000mm||Up to 6000mm||Up to 18000mm|
|Frame construction||Aluminum frame||Aluminum frame||Aluminum frame|
|Face material||9mm||9mm / 12mm||12mm|
|Fire safety||Optional Class I or O||Optional Class I or O||Optional Class I or O|
|Vertical profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles|
|Retractable seals||Aluminum black with
double rubber seals
|Aluminum black with double rubber seals||Aluminum black with double rubber seals|
|Operation of seals||Manual, with supplied
|Manual, with supplied operating handle||Manual, with supplied operating handle|
|Locking||Optional lock to pass doors||Optional lock to pass doors||Optional lock to pass doors|
|Pass doors||Single open in panel or
double open in two panel
|Single open in panel or double open in two panel||Single open in panel or double open in two panel|
|Sound insulation||20-32dB Rw||28-36dB Rw||32-50dB Rw|
|Weight||Approx 22-35kg/sq M||Approx 25-40kg/sq M||Approx30-48kg/sq M|
|Finish Material||Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.(Customized)|

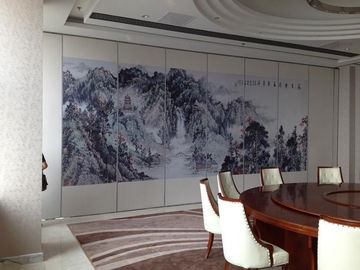

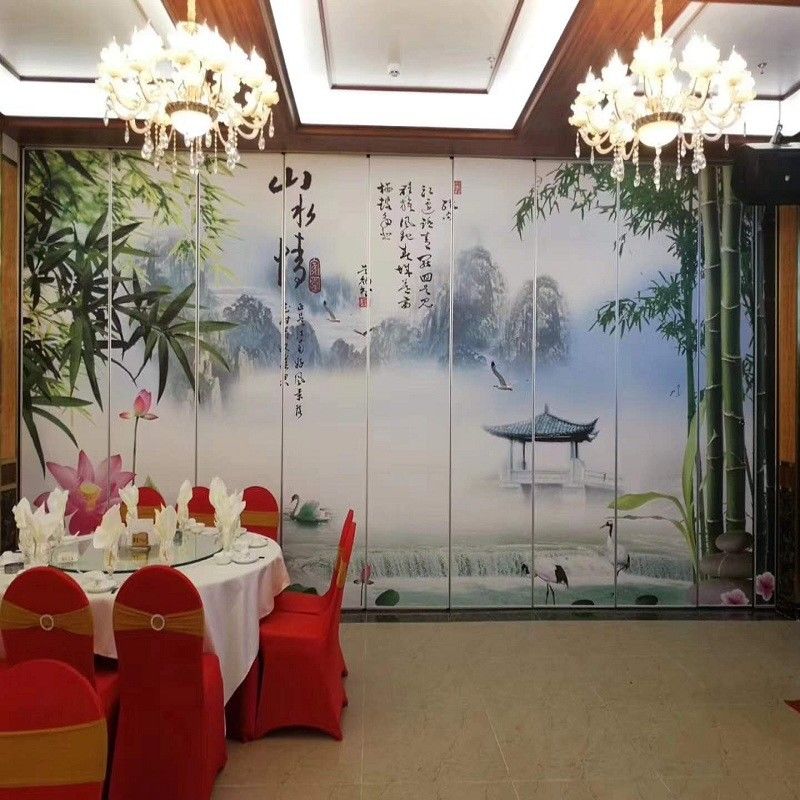

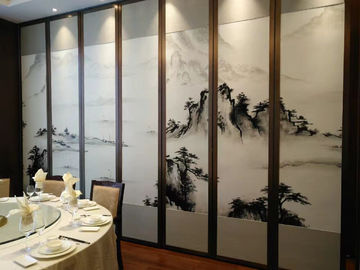

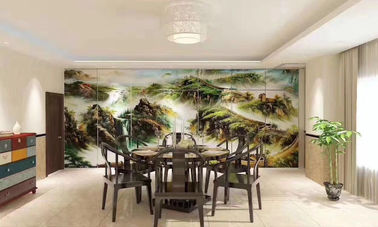

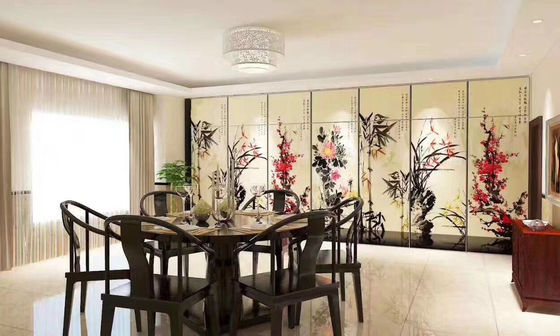

Folding Partition Walls Cases
Folding partition walls are made of high-quality anodized aluminum frame and environmentally friendly composite panels that move on ceiling tracks and do not require floor rails. The standard thickness of the panel is 65mm, 80mm and 100mm and the width is up to 1219mm. The maximum height is up to 17 meters high.
The folding partition walls consists of a series of interlocking panel and a quick set of foldable top and bottom seals. STC 32 to 53 is reached in the laboratory environment. Its excellent performance in sound insulation and the easy operation make it ideal for restaurants, schools, offices, religions, hospitals, shopping malls and many other indoor applications.
A wide range of finish options are available for folding partition walls: melamine faced MDF or particle board, fabric, carpet, leather, veneer, high pressure laminate, deck, acoustic board, white board. The panels can also supplied unfinished for site decoration.
