Interior Wooden Design Acoustic Partition Wall Sliding Doors For Auditorium / Banquet Hall
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | BUNGE |
| Certification: | ISO 9001 |
| Model Number: | Acoustic partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ |
|---|---|
| Price: | US $78-125 per square meter. |
| Packaging Details: | Paper carton,outside with wooden boxes. |
| Delivery Time: | 10-25 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Acoustic Partition Walls | Feature: | Sound Proofing |
|---|---|---|---|
| Based Board: | 9/12 Mm MDF Or Plywood | Height: | Maximum 17 Meters |
| Thickness: | 65, 85 Or 100 Mm | Application: | Banquet Hall, Auditorium |
| High Light: | acoustic operable wall,movable acoustic partition walls |
||
Product Description

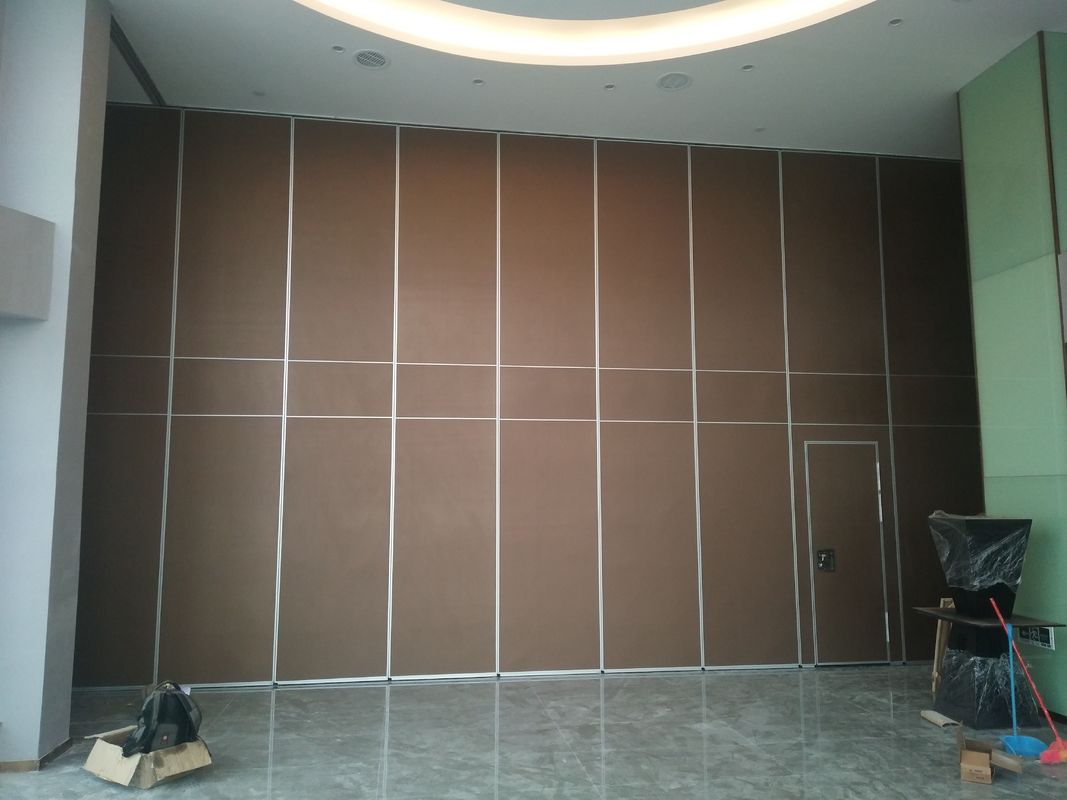

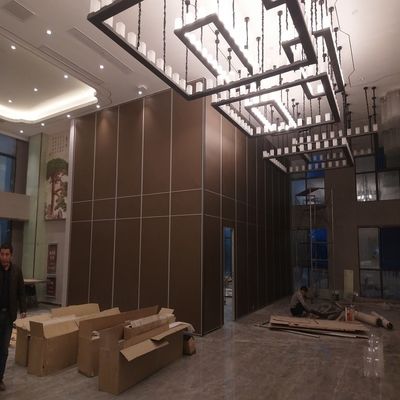

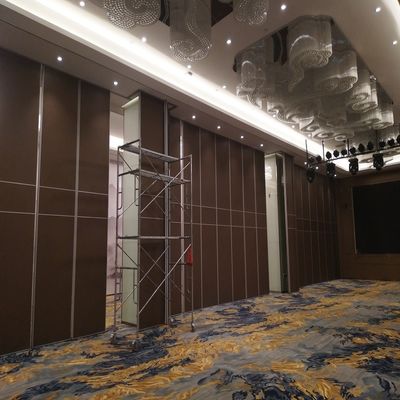

Banquet Hall Acoustic Partition Wall Sliding Doors for Auditorium Interior Wooden Design
Acoustic partition walls details
1) Acoustic partition walls board is modernized decoration style. It can separate the space speedly and conveniently, it is ususally used in banqueet hall, school, hote etc.It has sound insulation and heat insulation and fireproof function.
2) Our acousticwall partition is made of high quality anodized aluminum frame with composite materials.The panel Type 80 has astandard thickness of 65mm and a width up to1219mm. Maximum height can reach 4500mm tall.
3) Its vertical seal,together with the horizontal top and bottom retractable seals providing excellent acoustic insulation property of maximum STC-45.
4) The acoustic partition walls may be finished with a selection from our standard un-finish MDF or un-finish plywood board, or with optional fabric, leather, melamine, high pressure laminate, murals, or other custom surfaces. And pass through door or glass window can be applied additionally.Property of maximum STC-45.
5) The acoustic partition walls may be finished with a selection from our standard un-finish MDF or un-finish plywood board, or with optional fabric, leather, melamine, high pressure laminate, murals, or other custom surfaces. And pass through door or glass window can be applied additionally.
Technical details
| Series | BG65 | BG80 / BG85 | BG100 & BG125 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.(Customized) | ||
Acoustic partition walls features
1. Large selection of standard finish treatment.
2. It can quickly and easily separate the space.
3. Retractable top and bottom seals allow easy movement.
4. Quick divide by simple pull / latch operation.
5. No floor track is needed for movable dividers for rooms.
6. Tight vertical seal prevents sound leakage and helps align the panel during installation.
7. Acoustic partition walls are a modern decorative style with noise insulation, heat insulation, and fireproofing function.
