Folding Partition Door Sliding Wall Movable Partition Walls for Conference Room
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | 85 mm folding partition movable walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ |
|---|---|
| Price: | US $82-102 per square meter. |
| Packaging Details: | Paper carton, outside with wooden box. |
| Delivery Time: | 15-25 days |
| Payment Terms: | T/T, Western Union, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Folding Partition Movable Walls | Colors: | Customized |
|---|---|---|---|
| Feature: | No Floor Tracks | Application: | Conference Room Partitions |
| Size: | Partition Walls Customized | Service: | OEM ODM |
| High Light: | movable partitions systems,acoustic movable walls |
||
Product Description

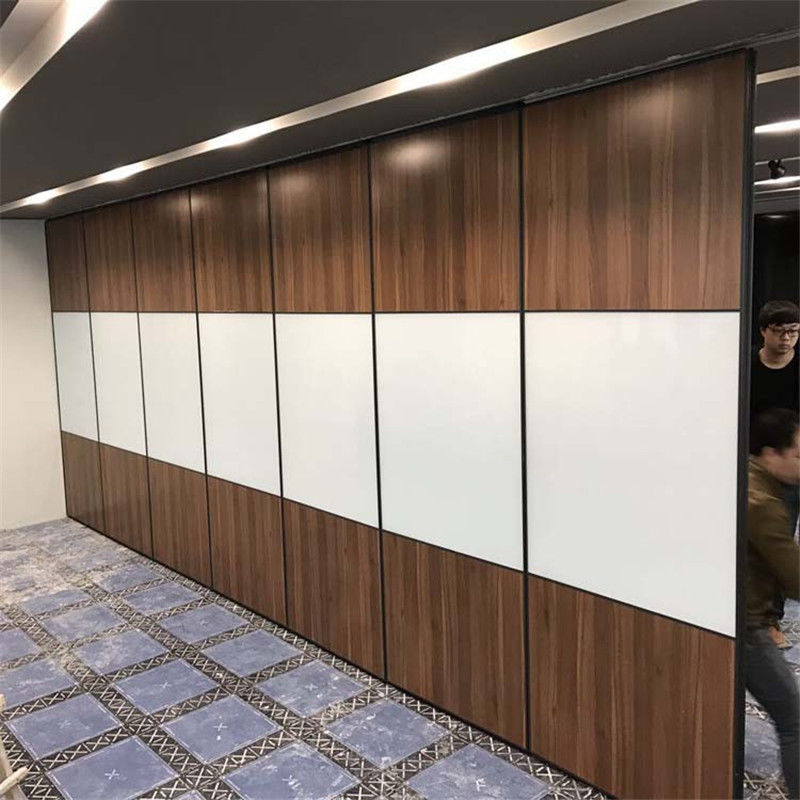

Folding Partition Door Sliding Wall Movable Partition Walls for Conference Room
Folding partition movable walls details
Room Partition Wall
Our folding partition movable wall is a movable soundproof room partition system which forms a removable wall. The folding partition movable walls are often used to temporarily divide a big room into several small rooms. Unlike other room partition materials, our folding partition movable wall has excellent soundproofing performance and they are hanging on an overhead track system.
Technical Specification Panel Configuration
The folding partition movable walls panels are customized to meet specific requirements. Each folding partition movable walls board thickness is 100mm and max width is 1200mm. Each single folding partition movable wall panel is welded with a welded aluminum frame and 9mm MDF is mounted on both sides of the outer surface. The internal structure is made of steel mechanism, which combines excellent performance at the top and bottom of the telescopic sound seal. Internal space is filled with less than 64 kg/m3 glass wool.
Overhead track system
specific aluminum alloy rails to meet the necessary stacking requirements. The intersection design should prevent the track wheel from falling into the track groove. Heavy-duty multi-way roller enables easy movement of the sliding partitions for rooms through the ceiling track.The panel of folding partition movable wall has a unique fast seal winding mechanism and a solid vertical seal edge profile to ensure that all panels fit perfectly.
Sound Seal System
Built-in excellent retractable top and bottom seals are anodized by extruded aluminum channels, rubber sealed, and operated by a handle with a cap lock system with spring-loaded telescopic rods. The vertical seal of each panel is made of thick and tongue-type extruded aluminum laminated with rubber seal.
Top and bottom seals do not collected to the ceiling track and floor during panel’s movement. When the sound seals are combined, the folding partition movable walls panel is placed in a stable position, and the top and bottom seals are compressed on the rails and floors by tight acoustic seals, including adjustable telescopic panels.
Folding partition movable walls technical information
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65mm | 85mm | 100mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9mm | 9mm | 12 mm |
| Pass doors | Single door or Double door | ||
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Folding partition movable walls advantages
Extensive worldwide sales network that has proved that our folding partition movable walls work well worldwide.
Technical advice or design is available, no matter where your facility is.
Integrated space management and acoustic product solutions that can be more profitable and economical to use in your building environment.
From your first query to the completion of the project, we are here to support.
Based on years of experience in architectural and design challenges, provide industry-leading technology to solve your space problems.
Unique custom applications that is flexible enough to meet the needs of any customer.
Strong industry support for other acoustic problems, not just our folding partition movable walls, but also acoustic wall and ceiling.
For more information about our folding partition movable walls, welcome to contact us for more details.
