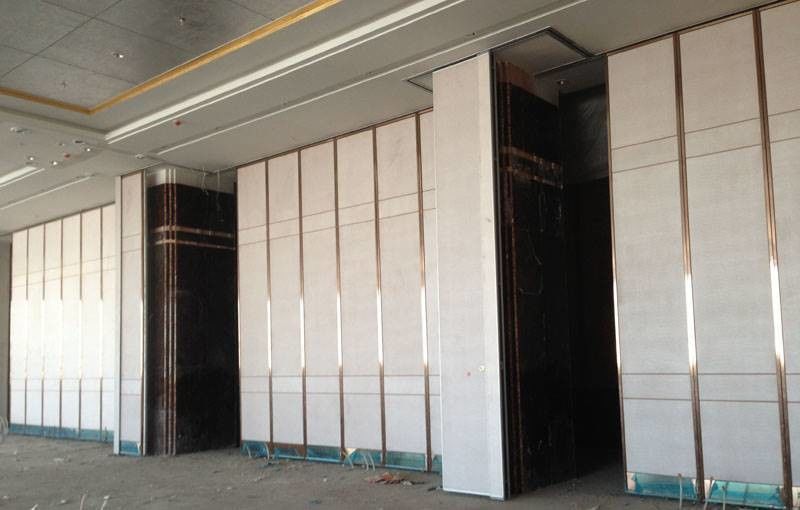

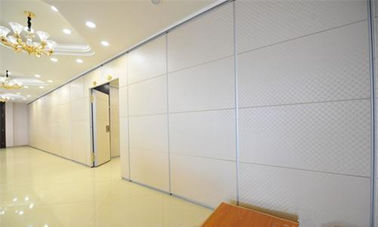

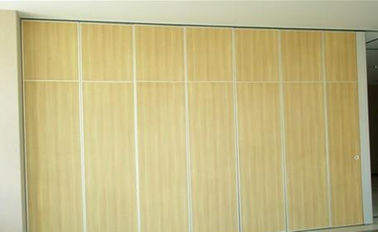

Modern Wood Dividers Folding Partition Walls Sliding Aluminium Track Roller
Product Details:
| Place of Origin: | China,Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 65 mm folding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 92 / 138 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Color: | Multi Color | Finished: | Fabric |
|---|---|---|---|
| Height: | Less Than 6 M | Thickness: | 85 Mm |
| Door Material: | Aluminium Alloy And MDF Board | Application: | Conference Room,restaurant |
| Service: | OEM Service | ||
| High Light: | soundproof folding partition,folding room partitions |
||
Product Description
Modern Type Cheap Price Sliding Aluminium Track Roller Wood Folding Partition Wall for Conference Hall
Specification:
Folding Wall Panels runs smoothly along its tracks on ball-bearing trolleys and is very easy to operate, it is rigid, robust and has safety features that assist in its operation.
It can benefit from a specially made steel self-supporting frame structure of which can achieve heights of more than 15 meters. Operated by a specialist scissor jack mechanism that ensures the greatest possible stability and the highest degree of sound proofing.
Feature:
Individually operated, top hung panels, purpose made to suit any opening size up to 15 meters high.
Retractable top and bottom seals, able to deal with floor level differences up to 22.5 mm.
Mechanically operated by worm screw drive providing of pressure for optimal acoustic performance.
No floor track.
Curved layouts, corner panels, junction panels, glazing cutouts, matching recess doors to special order.
Suitable for internal use only with a wide variety of features and finishes.
Advantage:
Top hung with no floor track.
Scissor-jack operating mechanism.
Available with virtually any surface finish.
Angled, glazed, corner or junction panels for maximum flexibility.
Single or double point suspension for versatile stacking options.
Panels with hinged pass door, single or double leaf inset pass door panels for access through.
Track system:
For single or paired panels up to 250 kg. One 4-wheeled carrier is provided per panel, each wheel is consists of molded polymer tires on hardened steel ball bearings.Resilient mounted body for quite operation and load distribution.special for center stacking option. Usual dimension from the ceiling to the structure is 200 mm.
For panel up to 225 kg. Two carriers are provided per panel. Each carrier has two horizontal counter-rotating wheels that roll (not slide) in the track. Each wheel has precision ground bearings, encased with POM for quiet operation. Carriers easily negotiate square or angled corners without switches. Usual dimension from the ceiling to the structure is 200 mm.
Technical information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Our service:
A full professional design service.
Survey and installation guide.
Using top quality materials and components.
A fully experienced work team.
Maintenance contracts to ensure your valuable asset remains in full work order.
