Collapsible Office Wooden Sliding Partition Walls Materials Aluminum Frame
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | BUNGE |
| Certification: | ISO 9001 |
| Model Number: | 85 mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ |
|---|---|
| Price: | US $78-128 per square meter. |
| Packaging Details: | Paper carton,outside with wooden boxes. |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 square meter per month |
|
Detail Information |
|||
| Feature: | Soundproofing | Finish: | Melamine |
|---|---|---|---|
| Weight: | 30-60 Kg/m² | Acoustic Coefficient: | 30-55 Db |
| Application: | Auditorium,hall,meeting Room | Product Name: | Sliding Partition Walls |
| High Light: | acoustic sliding partition,sound proof sliding partitions |
||
Product Description
Aluminum Frame Collapsible Office Wooden Sliding Partition Walls Materials
Sliding partition walls FAQ
1. Are you a trading company or a factory ?
Our company was established in Guangzhou city, with a factory about 5 minutes drive from company. Experience in acoustic solution for more than 10 years. Welcome to visit us.
2. Can you assist for design and installation?
Yes, we are a strong team, can arrange to assist in design and installation if needed.
3. Do you accept customization?
Yes, we can support our clients with OEM, so that it can be easier to open the local market and build a long-term partnership between us.
4. Can you offer sample?
Yes, we can offer standard samples for free, and customization is available.
5. How long is the lead time.
Normally 10-20 days upon receiving the deposit.
6. Do you have CE certificate?
Yes, we do. We have shipped many goods to European countries.
7. How can you guarantee the quality?
We have a modern management system. Take strict selection for upstream suppliers to insure the basic material to be good quality. And we pay more attention to production technology and staff training, so that the defective rate is less than 1% of each products, save cost at the production line.
Sliding partition walls technicals
| Model | BG-65 series | BG-80 series | BG-100 series | BG-high series |
| Suspension system | Aluminum hanging | Aluminum hanging | Aluminum hanging | Steel hanging |
| Basic thickness | 65mm | 85mm | 100mm | 100mm |
| Total thickness | 65/75/85/95mm | 85/90/100/110mm | 100/120/130mm | 100/120/130mm |
| Max height | Up to 3800mm | Up to 4500mm | Up to 6500mm | Up to 12000mm |
| Width | 600-1230mm | 600-1230mm | 800-1230mm | 800-1230mm |
| Floor/ceiling sealing strength | Telescopic aluminum tube with rubber strip | |||
| Side walls sealing strength | Double seal tape | |||
| Sound insulation level | 26dB-30dB | 28dB-34dB | 32-40dB | 32-40dB |
| Panel structure | Aluminum frame with wooden keel | Aluminum frame with steel keel | ||
| Panel density | 22-28kg/sqm. | 24-32kg/sqm. | 32-50kg/sqm. | / |
| Surface material | Melamine laminate/fabric/PU leather/wallpaper/veneer/customized | |||
Sliding partition walls details

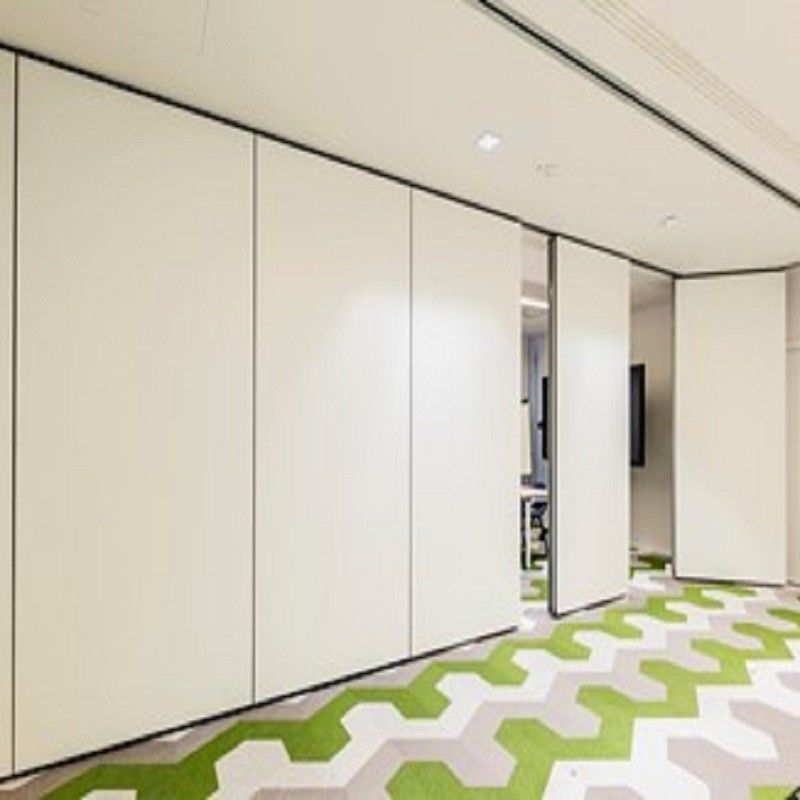

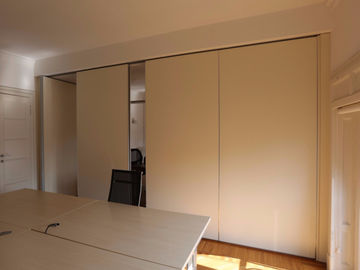

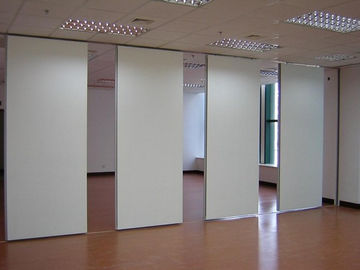

Sliding partition walls are custom built movable walls for keeping efficient open spaces. Our sliding partition walls system is top hung system without track.Let us help you find the best flexible solution for your environment and turn the room you have into the space you need. Designed especially for space where different uses and flexible layout changes are required.
The sliding partition wall is aluminum-framed operable partition is the most versatile operable wall constructed today. Sliding partition walls are a series of flat panels, approximately range from 600mm(23") to 1200mm(47") wide. They have a wide array of features and options to meet most design and budget requirements. Models are acoustically rated, available in 65mm(2.6") ,80mm(3")or 100mm(4") thick models, and in single, pair hinged configurations.

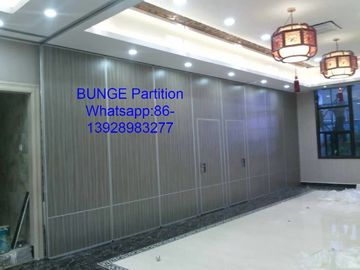

Ultra-high type is designed for sliding partition walls as high as 7 m to16 m with max soundproof rate 53 dB. Load bearing of each meter is more than 2000 kilograms, pulley bearing more than 1600 KGS, used in large place, such as banquet hall, multi-function hall, exhibition center, gym and conference room. Ultra-high type acoustic room divider is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 16 meters high partition can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.
