Acoustic Sliding Folding Partitions Movable Walls With Aluminium Door Track Rollers

Acoustic Sliding Folding Partitions Movable Walls With Aluminium Door Track Rollers

Product Details:

Place of Origin: Guangzhou,China
Brand Name: BUNGE
Certification: ISO9001
Model Number: 85 mm sliding partition walls

Payment & Shipping Terms:

Minimum Order Quantity: No MOQ
Price: US $80-130 per square meter
Packaging Details: Wooden boxes
Delivery Time: 15-20 days
Payment Terms: T/T
Supply Ability: 5000 square meter per month
Get Best Price Contact Now

Detail Information

Application: Hotel,banquet Hall Finishing: Melamine
Width: 500-1200 Mm Thickness: 85 Mm(3 1/4 Inch)
Product Name: Sliding Partition Walls Feature: Sound Insulation
High Light:

acoustic sliding partition

,

sound proof sliding partitions

Product Description

Movable Aluminium Door Track Rollers Acoustic Folding Sliding Partition Walls



Sliding partition walls FAQ



1. How to select the suitable movable wall for your site?



We have 4 types of sliding partition walls, 65 type, 85 type, 100 type and 125 ultra-high type.

.

You can choose the right movable wall upon the height and soundproof requirement as following.



65 type- Max height: 4000 mm,soundproof:32db to 43 db.



85 type- Max height: 6000 mm,soundproof:38db to 50 db.



100 type- Max height: 9000 mm,soundproof:42db to 55 db.



125 type- Max height: 17000 mm,soundproof:42db to 55 db.



2. What you should do on site?



A beam should built on site for track installation. The minimum distance leaving for track installation from false ceiling to top ceiling is 180 mm.



3. How to install?



We will provide the installation manual and video guiding the installation job.We can also dispatch the installation engineer supervising the installation as request.



4. What is lead time?



The lead time is 7 days to 10 days.



5. How to transport?



Sea transport is a common mode of transportation.In an emergency, can be air freight.



6. How do the goods packing?



Carton paper packaging,MDF batten cover all around corner.

The movable wall panel and track,fittings will be packed separately.



Aluminum Acoustic Soundproof Movable Wall Partition Composite Panel For Meeting Room Divider



Sliding partition walls technicals



Description of the whole system
Item Soundproof office partition walls
Partition Height 2-17 meters
Sound Transmission Class(STC) 32-53db
Description of partition accessories
Roller Imported dupont POM material roller,bearing capacity 225-1300kg
Track System Clear anodized 6063-T6 aluminum double track
Surface finish option MDF,melamine,HPL,fabric,PU,wood veer
Junction "T"junction, "L" juntion, cross/ "X" juntion
Glass wool density inside 64kg/m3
Interior profile Wooden, aluminum, steel
Application Hotel, banquet hall, ballroom , conference room, classroom, function hall, auditorium

Free Sample in 10 Days

Inquiry now and you will have your sample in 10 day if you pay the express.

3-year Warranty

The office partition wall made of 6063-T5 alumina, anti-aging, no fading and abrasion in 10 years.

OEM Service

Your logo can be printed on the packaging carto

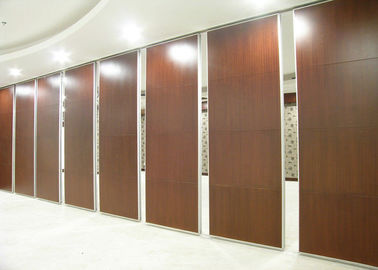

Acoustic Sliding Folding Partitions Movable Walls With Aluminium Door Track Rollers 1



Sliding partition walls features:



Individual panels that can be stored away for Maximum space usage.



Operable top and bottom seals for effortless operation.



Aluminum frame construction for enhanced acoustics.



The system offers various levels of sound reduction.



Unique track and carrier system ensuring quiet and easy operation.



Numerous panel stacking options for complete flexibility.



Top hanging and no floor track.



Extensive range of surface finishes can be available.

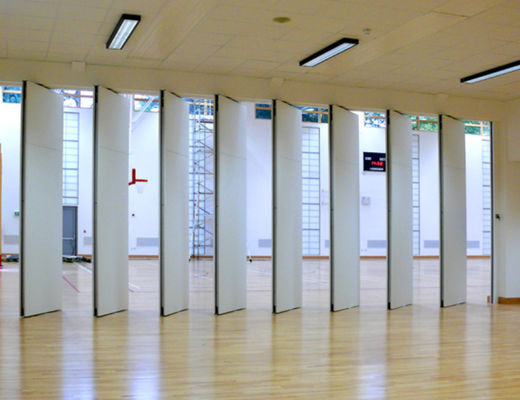

Acoustic Sliding Folding Partitions Movable Walls With Aluminium Door Track Rollers 2
