Conference Room Folding Operable Partition Walls Aluminum Hanging Suspension System
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | 85 mm office partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ |
|---|---|
| Price: | US $ 78-125 per square meter |
| Packaging Details: | Wooden boxes |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 square meter per month |
|
Detail Information |
|||
| Feature: | Acoustic | Material: | MDF+Aluminum |
|---|---|---|---|
| Application: | Conference Room,offices | Type: | Office Furniture |
| Finish: | Melamine | Product Name: | Office Partition Walls |
| High Light: | acoustic folding partition,folding room partitions |
||
Product Description

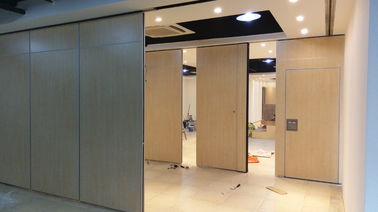

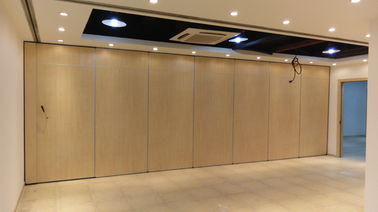

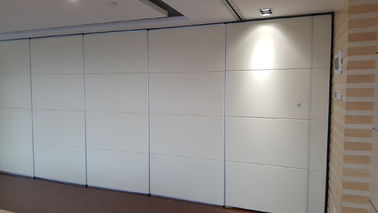

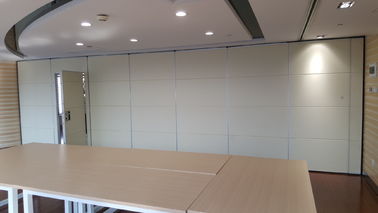

Conference Room Folding Operable Partition Walls Panels Office Sliding Wall Partitions
Technical Information:
| Model | BG65 | BG85 | BG100 |
| Suspension system | Aluminum hanging | Aluminum hanging | Aluminum hanging |
| Basic thickness | 65mm | 85mm | 100mm |
| Total thickness | 65/75/85/95mm | 80/90/100/110mm | 100/120/130mm |
| Max height | Up to 3800mm | Up to 6000mm | Up to 8000mm |
| Width | 600-1230mm | 600-1230mm | 800-1230mm |
| Floor/ceilingsealing strength | Telescopic aluminum tube with rubber strip | ||
| Side walls sealing strength | Double seal tape | ||
| Sound insulation level | 26dB-30dB | 28dB-34dB | 32-40dB |
Nice Price Products
FACTORY DIRECT PRICE--NICE QUALITY--NICE SERVICE--QUICK SHIPPING.
65 mm office partition walls ONLY FOR $85.
85 mm office partition walls ONLY FOR $98.
100 mm office partition walls ONLY FOR $118.
125 ultra-high system office partition walls ONLY FOR $130.
Please contact us for the Detailed Price.
WhatsApp:008613928983277
Sliding Partition Walls Components
Tracks: Made of good quality anodized aluminium 6063-T5 materials, hanging the movable walls panels with wheels.
Wheels/Rollers: It is the carrier for the movable walls, let the panels move more flexibly. Pulley bearing is more than 1600 KGS.
Connectors: Made of anodized aluminium 6063-T5 aluminum tracks, “L”, “T”, “＋”types are available.
Rubber/vinyl seal: Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation, wear-resistant.
Rock Wool: Density of 50kg/m3, help us reduce the noise and heat.
Handle: Operate the retractable being up and down.
Retractable mechanism: Control the movement of the top and bottom seal to form a excellent sound insulation performance.
Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the movable walls.
MDF board: 9 mm thickness, density of 760kg/m3, absorbent thickness expansion rate is less than 15%. Formaldehyde emission is 34mg/100g.
Advantages of Office Partition Walls Panels System
◆ The office partition walls panels are a hanging system,can be hidden upon drop ceiling, won’t see any tracks on the finish floor.
◆ Easy to collect,all of the office partition walls panels panels can be collected in a certain cabinet by one person quickly and conveniently, when a large space need to be recovered.
◆ The surface of the office partition walls panels can be customized, can match the decoration style of the whole space.
◆ Numerous panel stacking options for complete flexibility
◆ The office partition walls panels are sound proofing,can up to various levels of sound reduction.
◆ The office partition walls panels are made of high quality 6063-T5 aluminum materials,all of them are strong and wear resistant.
