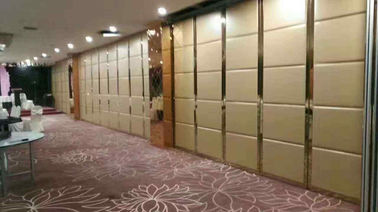

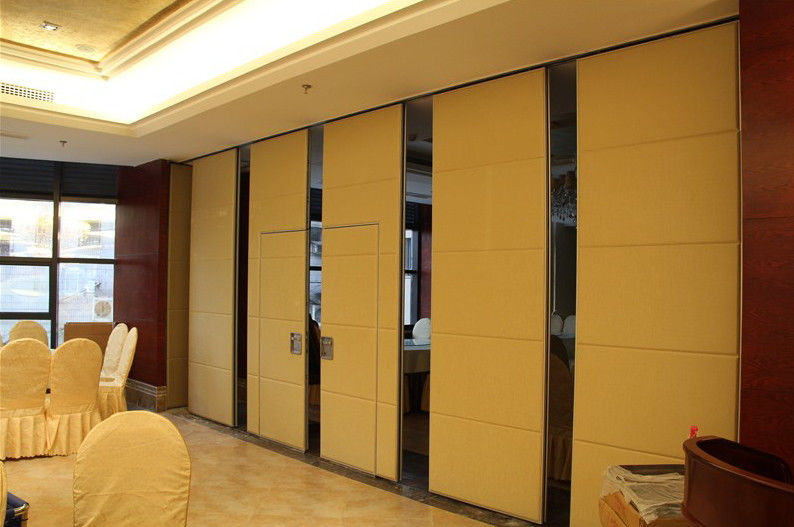

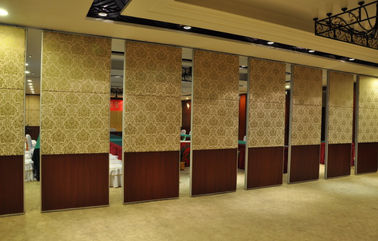

Sound Proof MDF Board Fabric Finish Movable Folding Partition Walls Commercial For Restaurant
Product Details:
Place of Origin: | Guangzhou,China |
Brand Name: | BUNGE |
Certification: | ISO9001 |
Model Number: | 85 mm sliding partition walls |
Payment & Shipping Terms:
Minimum Order Quantity: | No MOQ |
---|---|
Price: | US $ 78-125 per square meter |
Packaging Details: | Wooden boxes |
Delivery Time: | 7-15 days |
Payment Terms: | T/T |
Supply Ability: | 5000 square meter per month |
Detail Information |
|||
Feature: | Acoustic | Material: | MDF+Aluminum |
---|---|---|---|
Application: | Conference Room,offices | Type: | Office Furniture |
Product Name: | Sliding Partition Walls | Finish: | Fabric |
High Light: | acoustic sliding partition,sound proof sliding partitions |
Product Description
Sound Proof MDF Board Fabric Finish Movable Walls Sliding Partition Wall for Restaurant
Technical Information:
TYPE
|
BG65 |
BG85
|
BG100 |
Panel suspension
|
Top hung only
|
||
Track system
|
Single or twin point
|
||
Panel thickness
|
65MM
|
85MM
|
100MM OR 125MM
|
Panel height
|
Up to 4000mm,Heights greater than 3000mm refer to our Technical Dept
|
Up to 6000mm,Heights greater than 6000mm refer to our Technical Dept.inset Pass doors above 2400mm.Full Height pass door up to 3000mm high Document 'M'disabled doors-optional
|
|
Max height
|
4000mm with heavy duty track
|
6000mm with heavy duty track
|
18000mm with heavy duty track or steel track
|
Panel width
|
600-1200mm
|
||
Frame construction
|
Aluminium
|
Aluminium
|
Aluminium/steel
|
Face material
|
9mm/12mm
|
9mm/12mm
|
9mm/12mm/15mm
|
Fire safety
|
optional Class I or O
|
||
Vertical profiles
|
Aluminium,anodised with sealing profiles,painted-optional
|
Aluminium,anodised with sealing profiles,painted-optional
|
Aluminium,anodised with sealing profiles,painted-optional
|
Retractable seals
|
Aluminium,black with double rubber seals
|
Aluminium,black with double rubber seals
|
Aluminium,black with double rubber seals
|
Operation of seals
|
Manual,with supplied operating handle
|
||
Locking
|
Optional lock to pass doors
|
||
Pass Doors
|
Single open in oanel or double open in two panel
|
||
Sound insulation
|
41,43,48dB Rw
|
43,48,51,53dB Rw
|
48,51,53,58dB Rw
|
Weight
|
Approx 33-40kg/sq M
|
Approx 43-50kg/sq M
|
Approx 63-70kg/sq M
|
Sliding Partition Walls Components
Tracks: Made of good quality anodized aluminium 6063-T5 materials, hanging the movable walls panels with wheels.
Wheels/Rollers: It is the carrier for the movable walls, let the panels move more flexibly. Pulley bearing is more than 1600 KGS.
Connectors: Made of anodized aluminium 6063-T5 aluminum tracks, “L”, “T”, “+”types are available.
Rubber/vinyl seal: Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation, wear-resistant.
Rock Wool: Density of 50kg/m3, help us reduce the noise and heat.
Handle: Operate the retractable being up and down.
Retractable mechanism: Control the movement of the top and bottom seal to form a excellent sound insulation performance.
Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the movable walls.
MDF board: 9 mm thickness, density of 760kg/m3, absorbent thickness expansion rate is less than 15%. Formaldehyde emission is 34mg/100g.
Finishes of Movable Partition Walls
-
❶ Wooden (MDF, Plywood bare raw finish) & (Melamine, Veneer)
-
❷ Fabric (fabric with mdf board hard covers) & (fabric with sponge soft covers)
-
❸ Leather (leather with mdf hard covers) & (leather with sponge soft covers)
-
❹ Wallpaper, Vinyl, Fireproof board
-
❺ Acoustic panels
-
❻ Tempered glass. etc.
Externally, most movable partition wall panels look the same, but it’s not simply the outside which makes a good movable wall, it is what’s inside the panel which makes the difference.
