|Thickness:||65 Mm||Material:||MDF Board+Aluminium|
|Height:||Less Than 4 M||Service:||OEM Service|
|Application:||Hotel,banquet Hall||Panel Style:||Sliding And Folding|

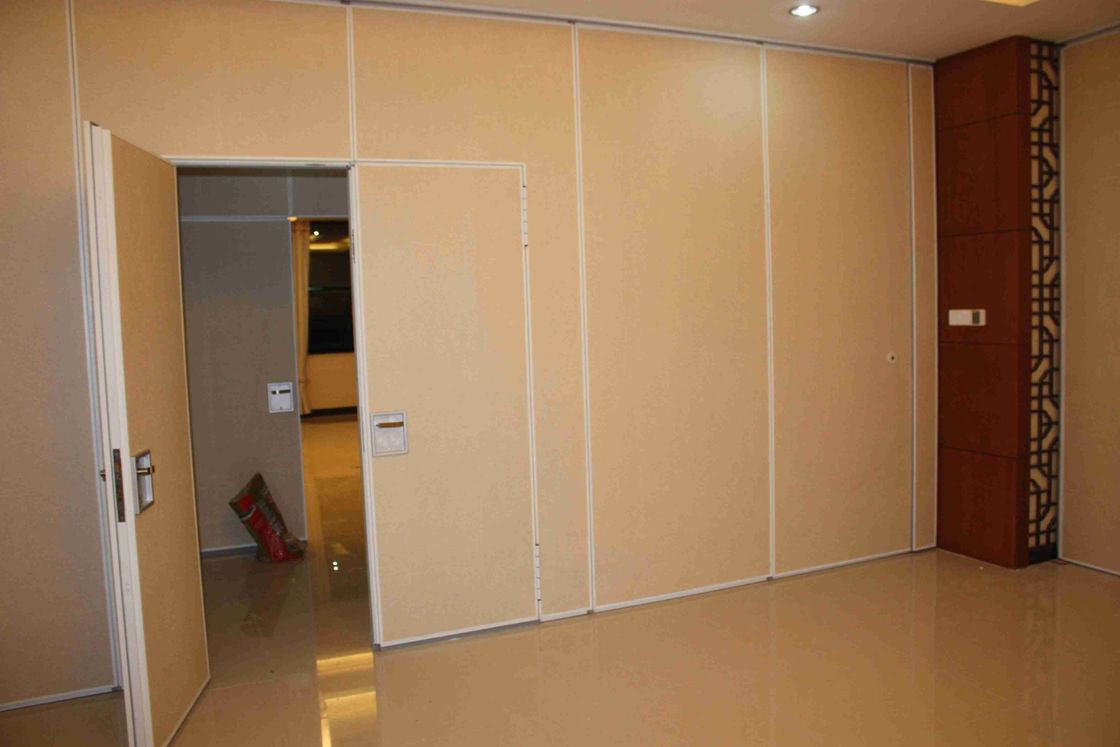

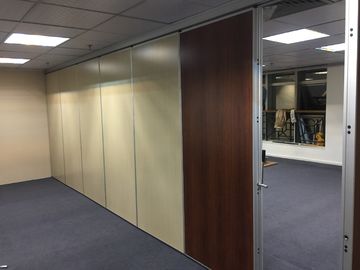

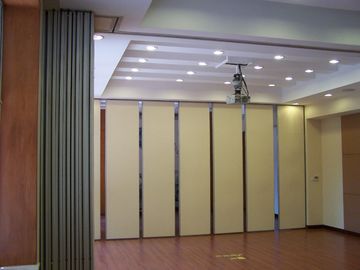

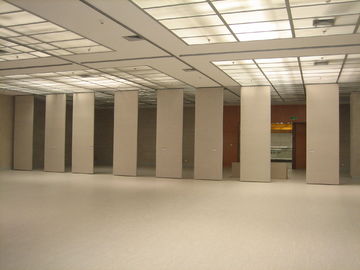

The acoustic sliding partition walls are a new way to divide spaces with elegance, while respecting the architectural environment in which they are inserted. They are composed of multiple individual elements, which flow along a horizontal guide attached to the ceiling, assembled one after another completing the entire wall.
It is not necessary any guidance on the floor, handling the elements is simple, fast and safe. The advantage of a soundproof sliding wall is essentially to occupy reduced space when it is stored, and when the wall is composed of all its elements.
Easy To move and soundproof
Thanks to the exclusive system: Polymer coated , self-lubricating, wear-resistant ball bearing trolleys.
In its versions, range has undergone the most stringent endurance and mechanical resistance tests in laboratories or in own Test Center. 3-years warranty for parts and labour.
Quick to install
Tool locking of top and bottom rubber seals thanks to a manual system in each panel.
Aluminium profiles that become totally invisible when flat by means of a hollow joint system.
1. No need floor suspension: There is no track on the floor, just install the track on the ceiling;
2. Stable and safe: It is stable and reliable after being cut off, and it is not easy to swing;
3. Insulation and energy conservation: excellent insulation performance, according to different seating rates, the large space is divided into small spaces to reduce the air conditioning power consumption;
4.High-efficiency fire prevention: The use of high-efficiency fireproof materials, good fireproof performance;
5. Beautiful and generous: any surface decoration, can be combined with the indoor decoration effect;
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Panel thickness||65 mm||85 mm||100 mm|
|Max height||4000 mm||6000 mm||18000 mm|
|Panel width||500-1200 mm||500-1200 mm||500-1200 mm|
|Face material||9 mm||9 mm||12 mm|
|Pass doors||Single door or Double door|
|Sound insulation||20-32dB Rw||28-36dB Rw||32-50dB Rw|
|Finish Material||Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.|
1.How to select the suitable movable wall for your site?
We have 4 types of movable wall, 65 type, 85 type, 100 type and 125 ultra-high type.
You can choose the right movable wall upon the height and soundproof requirement as following.
2.What you should do on site?
A beam should built on site for track installation. The minimum distance leaving for track installation from false ceiling to top ceiling is 180 mm.
3.How to install?
We will provide the installation manual and video guiding the installation job.We can also dispatch the installation engineer supervising the installation as request.
4.What is lead time?
The lead time is 7 days to 10 days.
5.How to transport?
Sea transport is a common mode of transportation.
6.How do the goods packing?
Carton paper packaging,MDF batten cover all around corner.
The movable wall panel and track,fittings will be packed separately.
7.What is procurement procedure?
Firstly,send us the shop drawings(if the shop drawing is not available, you can tell us the height from false ceiling to finished floor and width from wall to wall).
Secondly, we offer you the movable wall layout drawings for your confirmation.
Thirdly, we quote the movable wall in accordance with confirmed drawings.
