Floor To Ceiling Acoustic Room Dividers / Soundproof Movable Folding Room Partitions
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | 65 mm acoustic room dividers |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 square meters |
|---|---|
| Price: | US $74-118 per square meters |
| Packaging Details: | Paper carton inside,and wooden boxes for outside. |
| Delivery Time: | 15-25 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Thickness: | 65 Mm(2 9/16 Inch) | Application: | Banquet Hall,hotel |
|---|---|---|---|
| Feature: | Sound Proofing | Color: | Accept Customized |
| Product Name: | Acoustic Room Dividers | Style: | Sliding And Folding |
| High Light: | conference room dividers,sound proof room divider |
||
Product Description
Floor To Ceiling Acoustic Folding Room Partitions Soundproof Movable Room Dividers
Acoustic room dividers details:
A:1.Thickness:65 mm,85 mm,100 mm and 125 ultra-high panel.
2.Height:Can be up to 17 meters.
3.Structure:Top hunge system without the need for a floor tracks,only has the ceiling tracks and it will not damage the floor.
4.Panel width:The standard width is about 1000 mm,not over 1200 mm.
Soundproof acoustic room dividers can be used in conference centers, auditorium movable walls, hotels, auditoriums, corporate training facilities, gymnasiums, religious facilities, citizens or expositions, schools, banquet facilities and more.

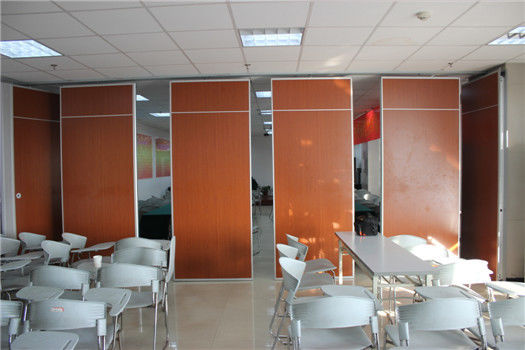

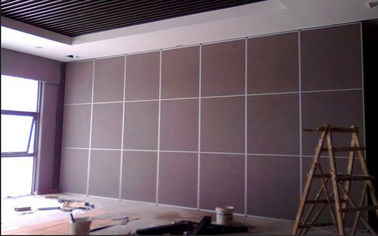

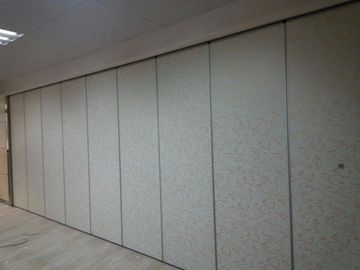

Acoustic room dividers cases
Acoustic room dividers are made of high-quality anodized aluminum frame and environmentally friendly composite panels that move on ceiling tracks and do not require floor rails. The standard thickness of the panel is 65mm, 80mm and 100mm and the width is up to 1219mm. The maximum height is up to 17 meters high.
The acoustic room dividers consists of a series of interlocking panel and a quick set of foldable top and bottom seals. STC 32 to 53 is reached in the laboratory environment. Its excellent performance in sound insulation and the easy operation make it ideal for restaurants, schools, offices, religions, hospitals, shopping malls and many other indoor applications.
A wide range of finish options are available for acoustic room dividers: melamine faced MDF or particle board, fabric, carpet, leather, veneer, high pressure laminate, deck, acoustic board, white board. The panels can also supplied unfinished for site decoration.
Acoustic room dividers technical details:
| Series | BG65 | BG80 / BG85 | BG100 & BG125 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
Sliding partition walls features:
1> Soundproof acoustic room divider is a modern decorative style partition with noise reduction, heat insulation, and fireproofing property. It can quickly and easily separate the space.
2> Acoustic room dividers are made of high-density aluminum frame, special made rubber seal, high-quality sound insulation cotton and finish panel which is usually flat and hard.
3> The finishing panel of acoustic room divider is inserted in the aluminum alloy frame, and assembled multi-directional wheels. The soundproof folding doors accordion room divider can be stored in many different ways.
4> No track is required on the floor. The acoustic room divider is mounted on ceiling track. It does not affect the whole style of decoration.
5> There is soundproof rubber around each acoustic room dividers board which can help isolate the sound.
6> The operation of acoustic room divider is easier and better than traditional free standing partition.
7> For convenient access, a single door or double doors can be added to the board.
8> There are many different finish options to meet the different requirements of customers and get different decorative effects.
