Ultra High Foldable Movable Partition Walls For Banquet , Restaurant , Church
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | BUNGE |
| Certification: | ISO 9001 |
| Model Number: | 85 mm movable partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 square meters |
|---|---|
| Price: | US $ 78-129 per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | 15-25 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Type: | 65,85,85,100 And Ultrahigh | Height: | 2000-16000 Mm |
|---|---|---|---|
| Surface: | Veneer,plaster,MDF,melamime | Slide Rail Load: | 250-1250kg/m |
| Product Name: | Movable Partition Walls | Feature: | Acoustic |
| High Light: | movable partitions systems,acoustic movable walls |
||
Product Description
Folding Movable Partition Walls for Banquet , Restaurant, Church and Conference Room

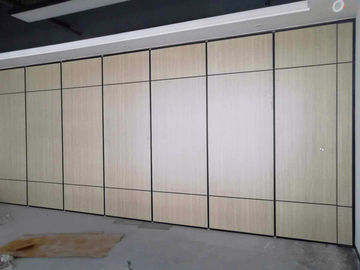

Movable partition walls project details
This project is located in San Francisco,American.BUNGE Factory susscessfully helped our American client to divide a big meeting rooms into many small ones.Our client chose the 85 mm thickness melamine surface panels.
There are 5 sets of walls,the width is 25’05’’,the height is 10’.From the ceiling to the concrete floor is also 10’,actually this size was enough for us to hang and install the movable partition walls.Also we provided the angel irons for our clients.
Actually the standard height of the movable partition walls panels can be 2.4 meters,but this project was over 3 meters.So we had divided the partitions into 2 parts.Also our client chose 2 kinds of colors chart for the up and bottom parts.
Bunge Movable Partition Walls FAQ
Q:Who We Are?
A:We are the movable partition walls for hotel supplier from Guangzhou,China.We have 100% real factory and we have more than 10 years experience in this line.Welcome to visit our factory and showroom.
Q:What is the details about the types of movable partition walls?
A:1.Thickness:65 mm,85 mm,100 mm and 125 ultra-high panel.
2.Height:Can be up to 17 meters.
3.Structure:Top hunge system without the need for a floor tracks,only has the ceiling tracks and it will not damage the floor.
4.Panel width:The standard width is about 1000 mm,not over 1200 mm.
Q:What are the finishings about the movable partition walls?
A:There are many surfaces for you to choose,such as themelamine,plywood,MDF Board,Natural wood Venner,fabric and the leather surface.In addition,the fabric and the leather surface can be done by soft cover,inside has the sponge.
Q:What is the movable partition walls made of?
A:It is a hanging system.There are many fittings for the movable partition walls,such as the tracks,trolley bearings,frames, sealings and so on.Please find the following picture for the whole structure.
Q:How to operate the movable partition walls?
A:When moving the movable partition walls,there is a 20-25 mm gap between the top of the panel and the underside of the head tracks.Once the panel is posititioned,acoustic integrity is maintained along the top and the bottom of the panels by extending presure seals.It will be operated by a handle.
Q:How we produce the movable partition walls and packing them?
A:Actually,each procedure are produced by BUNGE Factory ourselves,including the fittings.Nowadays,we packed the movable partition walls via a paper carton,but outside has the wooden boxes,so that the movable partition walls will not damage easily when we deliver to your site.
For further quesitons,please feel free to conact us : Whatsapp: 008613928983277.
Technical Information:
| Series | BG65 | BG80 / BG85 | BG100 & BG125 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
