MDF + Aluminum Office Partition Walls / Conference Room Sliding Folding Partitions
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | 85 MM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 square meters |
|---|---|
| Price: | US $84-138 per square meter. |
| Packaging Details: | Paper carton inside,and wooden boxes for outside. |
| Delivery Time: | 15-25 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Materials: | MDF+Aluminum | Color: | Accept Customized |
|---|---|---|---|
| Application: | Conference Room,office | Product Name: | Folding Partition Walls |
| Position: | Interior | Style: | Sliding And Folding |
| High Light: | acoustic folding partition,folding room partitions |
||
Product Description

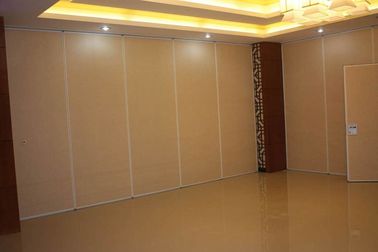

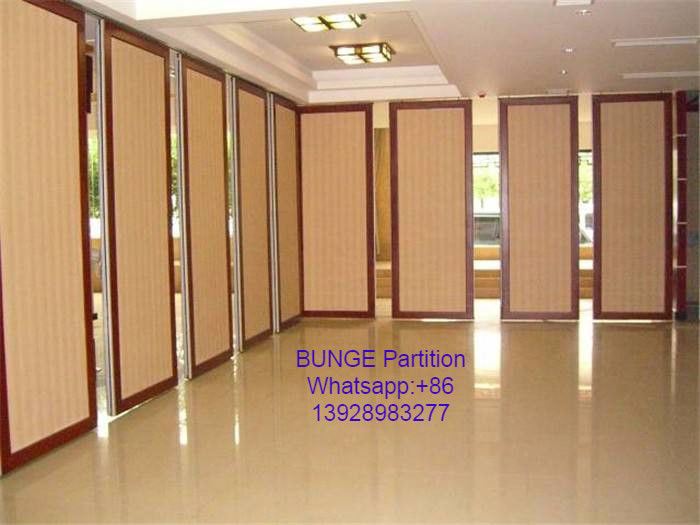

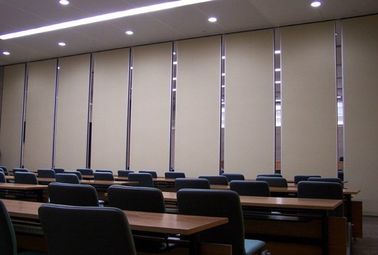

MDF + Aluminum Office Partition Walls / Conference Room Sliding Folding Partitions
Folding partition walls operation:
When moving a folding partition walls panel there is a 22.5-25 mm gap between the top of the panel and the underside of the head track, there is a similar gap between the bottom of the panel and the floor.
Once a folding partition walls panel is positioned, acoustic integrity is maintained along the top and bottom of the panel by extending pressure seals.
The pressure seals are extended and retracted by a single 180°turn of a removable operating handle.
Final closure of the folding partition wall is achieved by extending a telescopic sleeve on the last panel. This action simultaneously extends the top and bottom seals.
Folding partition walls application:
Stadium, Auditorium, Multifunction room, Meeting room, Studio and any other places where seek for high acoustic requirements.
Folding partition walls are specified where functional space delineation is an integral element within the partition project.
Due to their flexibility and cost effectiveness they allow large rooms to be conveniently sub-divided to maximize space utilization.
Principle applications include office interiors, meeting rooms, sports and leisure facilities, schools, colleges, churches, conference and function suites, exhibition centers, banks and restaurants.
Folding partition walls technical details:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 18000 mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9 mm | 9 mm | 12 mm |
| Pass doors | Single door or Double door | ||
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
|
Finish Material |
Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
| List of Movable Partition Series Parameter | |||||||
| Modle | Specification(mm) |
Acoustic Coefficient (dB) |
Sealing Scale Range(mm) |
Weight (kg/m2) |
Faceplate Material |
||
| Thickness | Width | Height | |||||
| 65# | 65 | 600 - 1230 | 4500 | 30 | 45 | 18 | Melamine |
| 34 | 45 | 22 | MDF | ||||
| 35 | 45 | 24 | Plaster Board | ||||
| 36 | 45 | 24 | Mgo Board | ||||
| 38 | 45 | 26 | Acoustic Panel | ||||
| 85# | 85 | 600 - 1230 | 7500 | 38 | 45 | 26 | Melamine |
| 42 | 45 | 27 | MDF | ||||
| 43 | 45 | 27 | Plaster Board | ||||
| 44 | 45 | 30 | Mgo Board | ||||
| 46 | 45 | 36 | Acoustic Panel | ||||
| 100# | 100 | 600 - 1230 | 9000 | 52 | 60 | 42 | Melamine |
| 56 | 60 | 44 | MDF | ||||
| 57 | 60 | 44 | Plaster Board | ||||
| 58 | 60 | 46 | Mgo Board | ||||
| 60 | 60 | 48 | Acoustic Panel | ||||
| ultrahigh | 100-125 | 600 - 1100 | 8000-16500 | 50-60 | 60 | 58 | All Board |
