Product Details:

Place of Origin: Guangzhou,China
Brand Name: BUNGE
Certification: ISO9001
Model Number: 65 mm sliding partition walls

Payment & Shipping Terms:

Minimum Order Quantity: 20 square meters
Price: $80-130 per square meter.
Packaging Details: Carton package, MDF batten on four section sides ,foam board on both front face.
Delivery Time: 7-10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 square meters per month.
Get Best Price Contact Now

Detail Information

Color: Accept Customized Thickness: 65 Mm(2 9/16 Inch)
Product Name: Sliding Partition Walls Height: 2000/13000 Mm
Style: Sliding Panel Width: 500 Mm--1220 Mm
High Light:

acoustic sliding partition

,

sliding folding partition

Product Description

Multi-Function Room Folding Sliding Partition Walls with Aluminum Tracks



Sliding partition walls specification:



1.65mm ,85mm, 100mm aluminum frame thickness panel ,Max height up to 15 meters.


2.Top supported without floor track or guide, only have track on the ceiling.


3.Clear anodized extruded aluminum tracks and frames,customized powder coated color are available.

4.Available in wide range of finishes, melamine ,fabric/PU leather, HPL, printing etc.



5.Fast delivery and Rich experiences in oversea project installation guide & supervision.

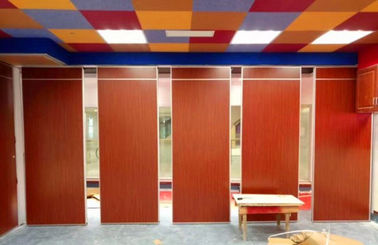

Multi - Function Room Folding Sliding Partition Walls Customized Color 0



Sliding partition walls features:



1.Space management ~ Sliding partition walls offer an effective space solution for many environments including offices, educational establishments, sporting facilities, dining and entertainment facilities, religious centres, or retail areas.


2.Smart use of space – Sliding partition walls offer a flexible solution for making the most of an interior space. Room sizes can be changed in a matter of moments to capitalise on the revenue potential of commercial space or simply create the most efficient use of floor space.


3.Acoustics ~ the sliding partition wall is the highest specification range of fully operable, individual-panel systems. Acoustic insulation noise reduction is achieved with a combination of acoustic infill’s and operable top and bottom seals.


4.Operation ~ space without a trace ~ when the operable seals are retracted the sliding partition walls panels will glide effortlessly and quietly along the unique aluminium overhead track system (no need for floor guide). Final closure of each panel is by a removable operating handle that extends the seal from the top and bottom of each panel forming an acoustic seal.

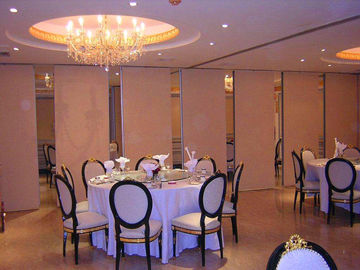

Multi - Function Room Folding Sliding Partition Walls Customized Color 1

Technical information:



Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65mm 80mm / 85mm 100mm
Panel height Up to 4000mm Up to 6000mm Up to 18000mm
Max height 4000mm 6000mm 18000mm
Panel width 600-1230mm 600-1230mm 600-1230mm
Frame construction Aluminum frame Aluminum frame Aluminum frame
Face material 9mm 9mm / 12mm 12mm
Fire safety Optional Class I or O Optional Class I or O Optional Class I or O
Vertical profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles
Retractable seals Aluminum black with
double rubber seals
Aluminum black with double rubber seals Aluminum black with double rubber seals
Operation of seals Manual, with supplied
operating handle
Manual, with supplied operating handle Manual, with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass doors Single open in panel or
double open in two panel
Single open in panel or double open in two panel Single open in panel or double open in two panel
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx30-48kg/sq M
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

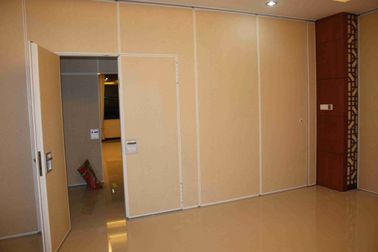

Multi - Function Room Folding Sliding Partition Walls Customized Color 2



Sliding partition walls accessories:



Track: The sliding partition walls tracks are made from extruded 6063 - T5 anodized aluminium. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets.



Aluminum sliding partition walls track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.


Seals: vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system.Retractable seal drop will be 23 mm.
