Commercial Furniture Aluminium Profile Foldable Partition Wall Retractable And Flexible
Product Details:
| Place of Origin: | China,Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 65 mm folding wall partitions |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 92 / 137 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Folding Wall Partitions | Application: | Hotel,restaurant |
|---|---|---|---|
| Thickness: | 65 Mm | Height: | Less Than 4 M |
| Surface: | Mdf Melamine,pu Leather | Door Material: | Aluminium Alloy + MDF Board |
| High Light: | acoustic folding partition,soundproof folding partition |
||
Product Description

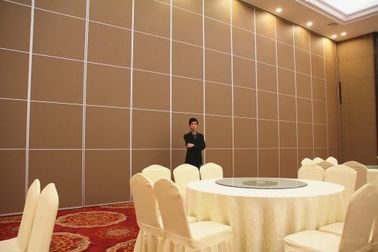

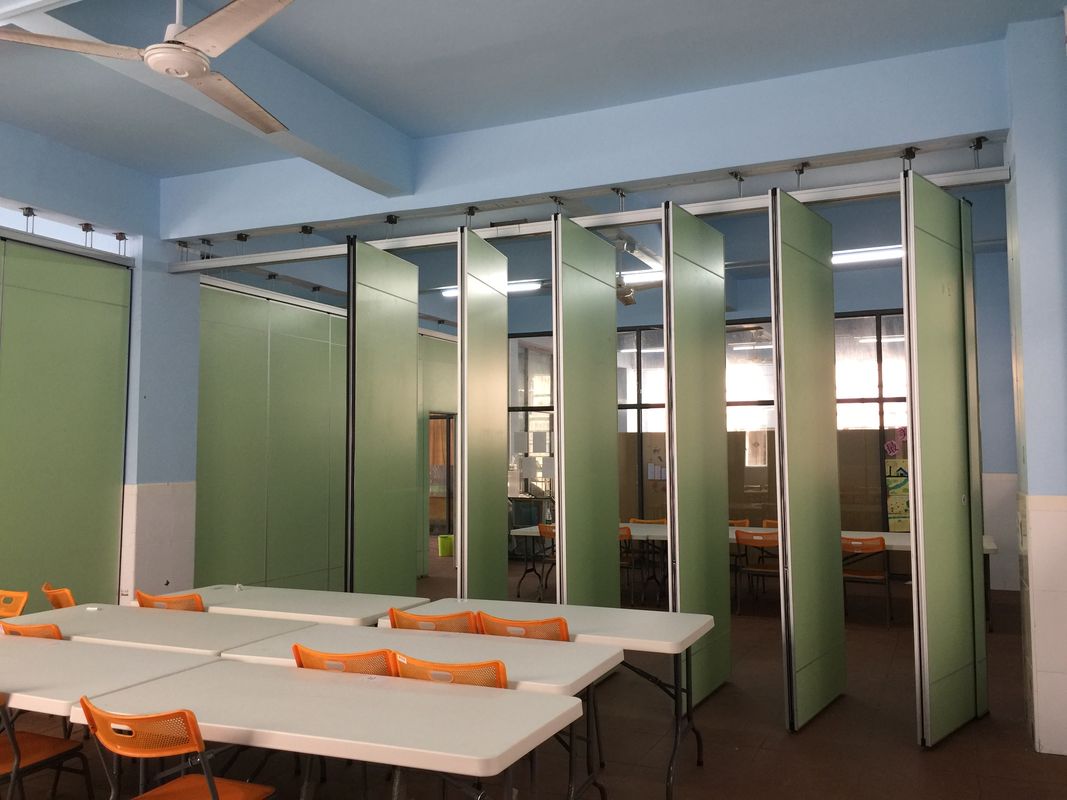

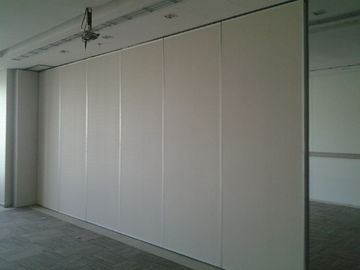

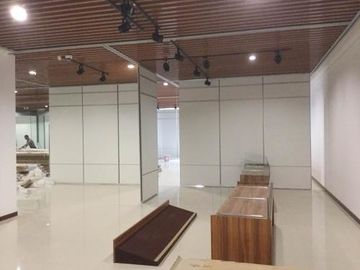

Commercial Furniture Sliding Aluminium Profile Hotel Operable Folding Wall Partitions
Specification:
The folding partition wall is a set of soundproof walls composed of every single partition. Each piece is equipped with two horizontal hanging wheels. It depends on the horizontal hanging wheel to make the hanging travel along the track.
It can make a 90 degree right angle turn and travel freely. Promote to other space collections, according to different space use needs, separated by multiple independent small space. The vertical contact points of each single piece partition are connected by concave and convex positions. The sealant strips are embedded and the upper and lower tops are equipped with a retractable soundproof seal mechanism.
Feature:
No floor rails: Top hung system without the need for a floor track.
Stable and safe: Stable and reliable after the partition, easy to swing.
Insulation energy saving: Excellent insulation performance, according to different seating rate, the large space is divided into small space to reduce air conditioning power consumption.
Efficient fire: The use of highly efficient fire prevention materials, fire performance is good.
Retractable and flexible: Retractable top and bottom seals ensure effortless movement of panels, numerous panel stacking options for complete flexibility,only a person can complete the whole process of cutting off.
Advantage:
Long-term use: with more economy and higher decorative, beautiful and safe, will not scratch the skin.
Cost savings: installation does not affect the construction of smallpox and the ground.
Various forms: optional with a variety of occasions partition wall, can be customized according to customer requirements.
Easy combination: in the re-assembly can make full use of building materials.
Material environmental protection: selection of high-quality melamine particleboard, sound insulation and sealing a good variety of accessories a variety of options.
Technical information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Track system:
For single or paired panels up to 250 kg. One 4-wheeled carrier is provided per panel, each wheel is consists of molded polymer tires on hardened steel ball bearings.Resilient mounted body for quite operation and load distribution.special for center stacking option. Usual dimension from the ceiling to the structure is 200 mm.
For panel up to 225 kg. Two carriers are provided per panel. Each carrier has two horizontal counter-rotating wheels that roll (not slide) in the track. Each wheel has precision ground bearings, encased with POM for quiet operation. Carriers easily negotiate square or angled corners without switches. Usual dimension from the ceiling to the structure is 200 mm.
Our service:
We design and manufacture value for money products with a one year warranty on all the outstanding ranges illustrated in this brochure.
We offer a complete service package covering site surveys, CAD technical drawings, and quotation presentation. Emphasis is placed on quality assurance backed by a comprehensive after sales service.
