Custom Hanging Track Roller Soundproof Folding Partition Walls / Movable Room Dividers

Custom Hanging Track Roller Soundproof Folding Partition Walls / Movable Room Dividers

Product Details:

Place of Origin: China,Guangzhou
Brand Name: BUNGE
Certification: ISO9001
Model Number: Series 65 mm folding partition walls

Payment & Shipping Terms:

Minimum Order Quantity: 10 square meters
Price: 97 / 121 dollar per square meter
Packaging Details: Carton package, MDF batten on four section sides ,foam board on both front face.
Delivery Time: Shipped in 10 days after payment, based on the quantity.
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 square meters per month
Get Best Price Contact Now

Detail Information

Product Name: Folding Wall Partitions Finished: Fabric,leather,melamine
Height: Less Than 6 M Thickness: 85 Mm
Open Style: Sliding And Folding Application: Hotel,restaurant
High Light:

acoustic folding partition

,

soundproof folding partition

Product Description

Custom Hanging Track Roller Soundproof Folding Partition Walls / Movable Room Dividers

Hanging Track Roller Soundproof Movable Dividers Hotel Folding Partition Wall



Specification:



We provide best and comfortable arrangement of acoustic folding partition wall suspended from ceiling track to sub-divide wide open areas which is flexible for functions like weddings, conferencing, meetings simultaneously in single big hall.



This modern technical facility is known as sliding Folding partition or Movable Wall. All types of partitions are acoustically treated and aesthetically very elegant for interior. We are committed to make your space comfortable and offer a comprehensive range of sliding folding partition systems to exactly fit your requirement.



The vertical channels for each panel incorporate vinyl seal(polymer) inserts that facilitate an acoustic seal when the panels are set out as a wall. We provide Panels in three categories or thickness, 65mm, 85mm and 100mm.



Feature:



Top hung system without the need for a floor track.


Retractable top and bottom seals ensure effortless movement of panels.


Concealed or exposed panel edge profiles.


Numerous panel stacking options for complete flexibility.


Extensive range of surface finishes available, easy construction and transportation.


The system offers various levels of sound reduction.


Combines elegance with robust construction.


Allow Customization.

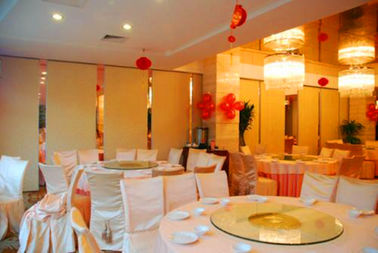

Custom Hanging Track Roller Soundproof Folding Partition Walls / Movable Room Dividers 0



Folding partition wall advantage:



Room to move, room to work or play. Public meeting or private function, assembly or seminar: Movable Acoustic Walls and Sliding Folding Partitions put all the options at your fingertips.



Gliding effortlessly along a concealed track suspended above the ceiling, our movable walls can provide all the acoustic and aesthetic qualities of a fixed wall, with the immeasurable advantage of maximum flexibility.



A variety of configurations and divisions can be achieved easily and rapidly. Once in place, spring loaded seals lock the panels into position.



The fully modular system allows for design on a project by project basis, taking account of all individual requirements. Installation is carried out by highly experienced engineers.



Application:



Its high performance per dollar value and the easiest in-field operation makes it very suitable for Hotel, banquet hall, conference room ,ballroom, muti-function hall, restaurant,classroom,office,religion,dance studio ,shopping arcades and many other place where seek for space divide with good soundproof performance .

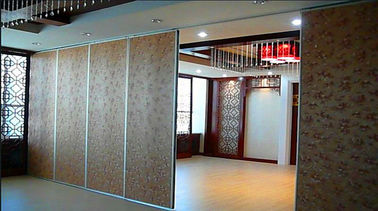

Custom Hanging Track Roller Soundproof Folding Partition Walls / Movable Room Dividers 1



Technical information:



Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65mm 80mm / 85mm 100mm
Panel height Up to 4000mm Up to 6000mm Up to 18000mm
Max height 4000mm 6000mm 18000mm
Panel width 600-1230mm 600-1230mm 600-1230mm
Frame construction Aluminum frame Aluminum frame Aluminum frame
Face material 9mm 9mm / 12mm 12mm
Fire safety Optional Class I or O Optional Class I or O Optional Class I or O
Vertical profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles
Retractable seals Aluminum black with
double rubber seals
Aluminum black with double rubber seals Aluminum black with double rubber seals
Operation of seals Manual, with supplied
operating handle
Manual, with supplied operating handle Manual, with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass doors Single open in panel or
double open in two panel
Single open in panel or double open in two panel Single open in panel or double open in two panel
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx30-48kg/sq M
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)



Our service:



A full professional design service.


Survey and installation guide.


Using top quality materials and components.


A fully experienced work team.


Maintenance contracts to ensure your valuable asset remains in full work order.
