• Acoustic Folding System Sliding Partition Walls For Classroom Fabric Surface Aluminium Frame
  • Acoustic Folding System Sliding Partition Walls For Classroom Fabric Surface Aluminium Frame
  • Acoustic Folding System Sliding Partition Walls For Classroom Fabric Surface Aluminium Frame
  • Acoustic Folding System Sliding Partition Walls For Classroom Fabric Surface Aluminium Frame
Acoustic Folding System Sliding Partition Walls For Classroom Fabric Surface Aluminium Frame

Acoustic Folding System Sliding Partition Walls For Classroom Fabric Surface Aluminium Frame

Product Details:

Place of Origin: China,Guangzhou
Brand Name: BUNGE
Certification: ISO9001
Model Number: Series 65 mm sliding partition wall

Payment & Shipping Terms:

Minimum Order Quantity: 10 square meters
Price: 90 /134 dollar per square meter
Packaging Details: Carton package, MDF batten on four section sides ,foam board on both front face.
Delivery Time: Shipped in 10 days after payment, based on the quantity.
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 square meters per month
Get Best Price Contact Now

Detail Information

Application: Classroom,office Height: Less Than 4 M
Thickness: 65 Mm Color: Multi Color
Open Style: Sliding Width: 500-1200 Mm
Service: OEM Service
High Light:

sliding folding partition

,

sound proof sliding partitions

Product Description

Fabric Surface Aluminium Frame Acoustic Folding System Sliding Partition Wall for Classroom

Description:



The acoustic sliding folding partition system is totally top supported, no floor tracks, no wall jam on wall , manually operated panels of convenient sizes, and can be stacked in area at ends with various parking option. The system when closed, its provide proper wall with complete sound barrier.



Sliding partition walls are acoustic sliding partitions available in three varying thicknesses and laboratory tested sound rating . This system is top hung. Each panel is individually supported by a track system mounted on the ceiling. No floor track is required.



This sliding folding partition system can be applied in hotels, Muti-functions halls, Meeting Room, Convention Center, Residential area, College and School, Banquet hall, Training rooms etc.



Technical information:



Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Panel thickness 65 mm 85 mm 100 mm
Max height 4000 mm 6000 mm 18000 mm
Panel width 500-1200 mm 500-1200 mm 500-1200 mm
Face material 9 mm 9 mm 12 mm
Pass doors Single door or Double door
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw



Finish Material

Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

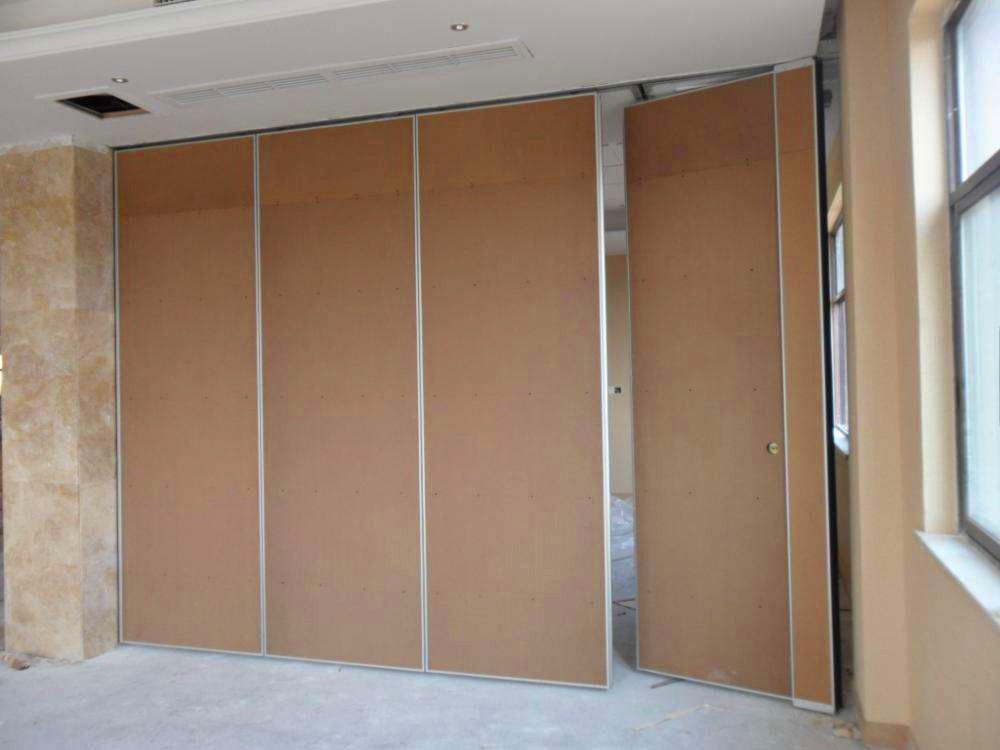

Acoustic Folding System Sliding Partition Walls For Classroom Fabric Surface Aluminium Frame 0



Feature:



Stable and self-supporting frame construction.


Flexibility through wide variety of panel arrangements.


Ease of use & movement due to light in construction.


Smooth and silent while in operation.


Good acoustic performance.


Availability of unlimited choice of finishes.



Advantage:



Room to move, room to work or play. Public meeting or private function, assembly or seminar: Movable Acoustic Walls and Sliding Folding Partitions put all the options at your fingertips.



Gliding effortlessly along a concealed track suspended above the ceiling, our movable walls can provide all the acoustic and aesthetic qualities of a fixed wall, with the immeasurable advantage of maximum flexibility.



A variety of configurations and divisions can be achieved easily and rapidly. Once in place, spring loaded seals lock the panels into position.

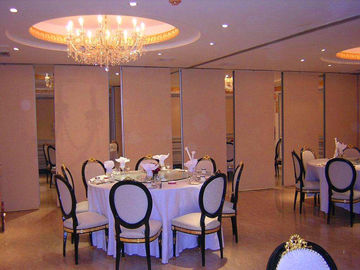

Acoustic Folding System Sliding Partition Walls For Classroom Fabric Surface Aluminium Frame 1



Structure:



Sliding partition wall consist of individual panels which are suspended from a head track system and then locked into place to create an acoustic wall. The systems can be on a single point or double point suspension. The panels can be stacked away using many different parking variations allowing maximum use of space.



Our service:



Smooth out cosmetic and surface damage.


Replacement of seals and activation hardware.


Reconditioning of trolleys, track, intersections and switches.


Relocation and rerouting of existing operable walls.


Demolish and replace with new acoustical partitions.


Improve soundproofing of partition walls and building envelope.


Repair and adjust to factory specification.
