Function Hall Top Suspended Acoustic Partition Wall Panel Standard Thickness 65mm 80mm 100mm
Product Details:
| Place of Origin: | China |
| Brand Name: | BUNGE |
| Certification: | ISO 9001 |
| Model Number: | 85 mm acoustic partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | US Dollars $ 82 / 125 per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | 10-25 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Color: | Accept Customized | Thickness: | 85 Mm |
|---|---|---|---|
| Feature: | Sound Insulation | Height: | 4 Meters |
| Surface: | Melamine | Produce Name: | Acoustic Partition Walls |
| High Light: | acoustic operable partitions,acoustic operable wall |
||
Product Description

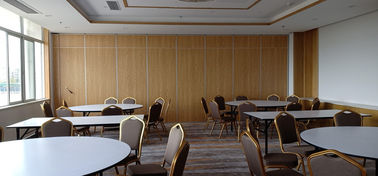

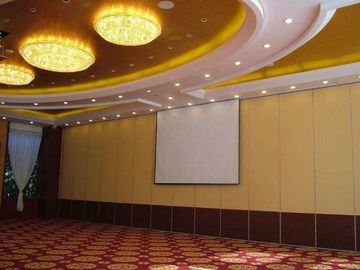

Function Hall Top Suspended Folding Sliding Movable Acoustic Partition Walls
Product Details of Acoustic Partition Walls

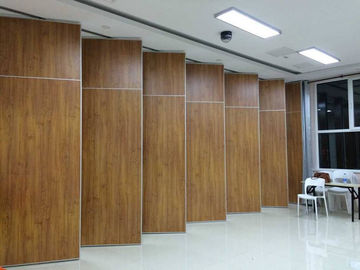

Acoustic partition wall is made of high quality anodized aluminum frame with environmentally composite materials.The panels move on a ceiling track with no requirement of floor guides or rails,the panel has a standard thickness of 65mm ,80mm and 100mm,and a width up to 1230mm.Maximum height can reach 17meter tall.
The acoustic partition walls consist of a series of concave/convex profile interlocking flat panels and the fast set retractable top and bottom seals ,its provide excellent acoustic insulation property of from STC-32 to 53 in labora-tory setting.Its high performance per dollar value and the easiest in-field operation makes it very suitable for restaurant,schools,office,religion,hospitals,shopping arcades and many other indoor applications product.

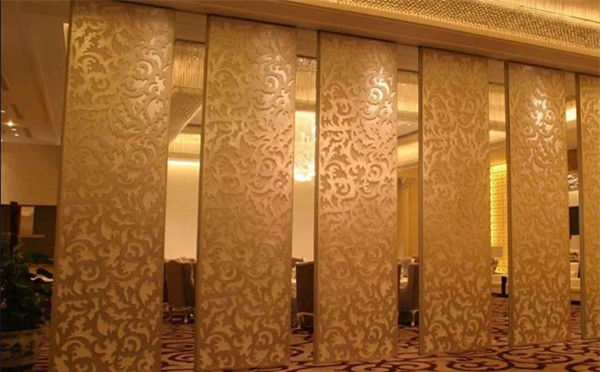

The acoustic partition wall has wide range of face finishes are available :melamine faced MDF or Plywood,
fabric,carpet,fabric,artificial,leather,wood veneer,high pressure laminate,Formica ,acoustic panel,white boad ect.,panels may also be supplied unfinished for field decoration,Standard frame color is clear anodized aluminum,custom powder coating colors are available.
Technical Information of Acoustic Partition Walls
| Description of the whole system | |
| Item | Acoustic partition walls |
| Partition Height | 2-17 meters |
| Sound Transmission Class(STC) | 25-53db |
| Description of accessories | |
| Roller | Imported dupont POM material roller,bearing capacity 225-1300kg |
| Track System | Clear anodized 6063-T6 aluminum double track |
| Surface finish option | MDF,melamine,HPL,fabric,PU,wood veer |
| Junction | "T"junction, "L" juntion, cross/ "X" juntion |
|
Model |
BG-65 series | BG-85 series | BG-100 series | TG-high series |
| Suspension system | Aluminum hanging | Aluminum hanging | Aluminum hanging | Steel hanging |
| Basic thickness | 65mm | 85mm | 100mm | 100mm |
| Total thickness | 65/75/85/95mm | 80/90/100/110mm | 100/120/130mm | 100/120/130mm |
| Max height | Up to 3800mm | Up to 4500mm | Up to 6500mm | Up to 12000mm |
| Width | 600-1230mm | 600-1230mm | 800-1230mm | 800-1230mm |
| Floor/ceiling sealing strength | Telescopic aluminum tube with rubber strip | |||
| Side walls sealing strength | Double seal tape | |||
| Sound insulation level | 26dB-30dB | 28dB-34dB | 32-40dB | 32-40dB |
| Panel structure | Aluminum frame with wooden keel | Aluminum frame with steel keel | ||
| Panel density | 22-28kg/sqm. | 24-32kg/sqm. | 32-50kg/sqm. | / |
| Surface material | Melamine laminate/fabric/PU leather/wallpaper/veneer/customized | |||
FAQ of Acoustic Partition Walls
Q1. Can I have a sample order for acoustic partition walls
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
Sample needs 3-5 days, mass production time needs 10-20 days for order quantity more than 300 square meter
Q3. Do you have any MOQ limit for partition order?
Low MOQ, 20 square meter, because its big size and volume
Q4. How do you ship the samples and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Do you provide installation?
We provide installation guide, in general, we send two person for installation instructions on site, customer need cover tickets, hotels, accommodations, 120-200USD one person per day for instructions
Q6. Is it OK to print my logo on packing?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
Yes, we offer one years warranty to our products.
