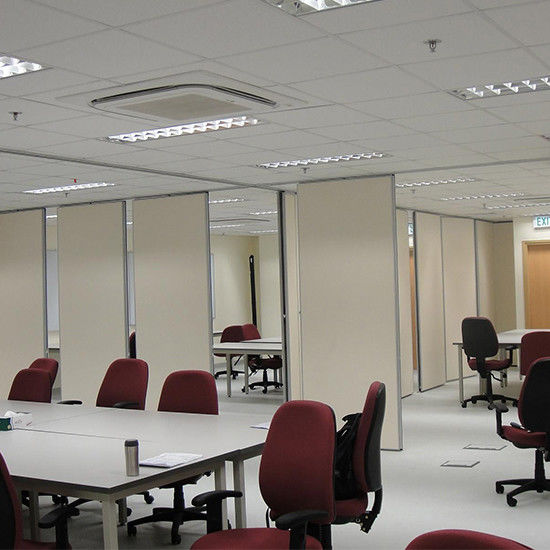

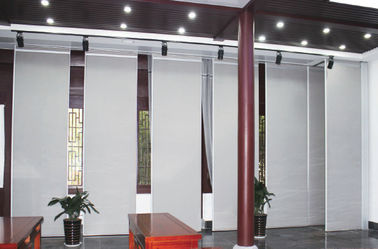

Light Weight Office Partition Walls / Aluminum Frame Folding Partition Walls with Doors
Product Details:
| Place of Origin: | China |
| Brand Name: | BUNGE |
| Certification: | ISO 9001 |
| Model Number: | 85 mm folding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | US Dollars $ 82 / 125 per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | 10-25 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Color: | Accept Customized | Thickness: | 85 Mm |
|---|---|---|---|
| Feature: | Sound Insulation | Height: | 4 Meters |
| Surface: | Melamine | Produce Name: | Folding Partition Walls |
| High Light: | acoustic folding partition,soundproof folding partition |
||
Product Description
Light Weight Office Partition Walls / Aluminum Frame Folding Partition Walls with Doors
Features about folding partition walls
1.Overhead type track, you just need to install the orbit on the floor or on the rack, there is no track on the floor, have no damage on the ground.
2.Unique aluminium materials ,which can be used for painting.
3. It is convenient to collect,plate can be hide in special coffer, have no effect to the whole appearance.
4. It is widely used for many occasions.
|
Folding Partition Walls System-Technical Information |
|||
| TYPE | 65A | 85A | 100A&125A |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 85mm | 100mm |
| Panel height | Up to 4000mm,Heights greater than 3000mm refer to our Technical Dept | Up to 6000mm,Heights greater than 6000mm refer to our Technical Dept.inset Pass doors above 2400mm.Full Height pass door up to 3000mm high Document 'M'disabled doors-optional | |
| Max height | 4000mm with heavy duty track | 6000mm with heavy duty track | 18000mm with heavy duty track or steel track |
| Panel width | 600-1200mm | 600-1200mm | 600-1200mm |
| Frame construction | Aluminium/steel | Aluminium/steel | Aluminium/steel |
| Face material | 12mm | 12/15/18mm | 12/15/18mm |
| Fire safety | optional Class I or O | optional Class I or O | optional Class I or O |
| Vertical profiles | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional |
| Retractable seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals |
| Operation of seals | Manual,with supplied operating handle | Manual,with supplied operating handle | Manual,with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass Doors | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel |
| Sound insulation | 40,44,47,50dB Rw | 40,44,47,50,53dB Rw | 40,44,47,50,53,58dB Rw |
| Weight | Approx 33-40kg/sq M | Approx 43-50kg/sq M | Approx 63-70kg/sq M |
Construction Methods
1.Track installation:Suspension fixed way is at the top of the folding partition walls board install the hanging wheel, and connected to the track suspension. The track and hanging wheel should be chosen according to the partition size and load weight.
2.Folding Partition Walls Panel installation: according to the design drawing, draw on each partition panel to mark the line wheel, fix the wheel with screws on the partition board top; Then the panel be put into track, let each panel in the perpendicular to the ground; Test and push-pull flexible rotation, and finally to fixed connection.
3.Debugging: movable panel need to discretion, sealing and so on debugging after installed. Then cleaning up the panel, complete the installation work.
