Fabric Surface Mdf Board Acoustic Wooden Folding Partition Wall Panels For Office
Product Details:
| Place of Origin: | China,Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 85 mm folding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 91 / 135 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Folding Partition Walls | Application: | Office,classroom |
|---|---|---|---|
| Thickness: | 85 Mm | Height: | Less Than 6 M |
| Surface: | Mdf Melamine,plywood,MDF Bare Finish | Color: | Multi Color |
| High Light: | soundproof folding partition,folding room partitions |
||
Product Description
Fabric Surface Sliding Aluminium Track Mdf Board Acoustic Office Wood Folding Partition Wall Panels
Specification:
The folding partition wall is a set of soundproof walls composed of every single partition. Each piece is equipped with two horizontal hanging wheels or single wheel. It depends on the horizontal hanging wheel to make the hanging travel along the track. It can make a 360 degree right angle turn and travel freely.
Promote to other space collections, according to different space use needs, separated by multiple independent small space. The vertical contact points of each single piece partition are connected by concave and convex positions. The sealant strips are embedded and the upper and lower tops are equipped with a retractable soundproof seal mechanism.
Feature:
Top hanging system without floor track, no need floor track.
From ceiling to finished floor folding partition wall.
Good soundproof feature that panels are included soundproof rock wool or soundproof felt.
Sliding and folding,when don't need to divide space, can be parking in one area.
Surface is custom designed, mainly melamine, fabric,leather ,Mdf bare finish,plywood and etc.
Application:

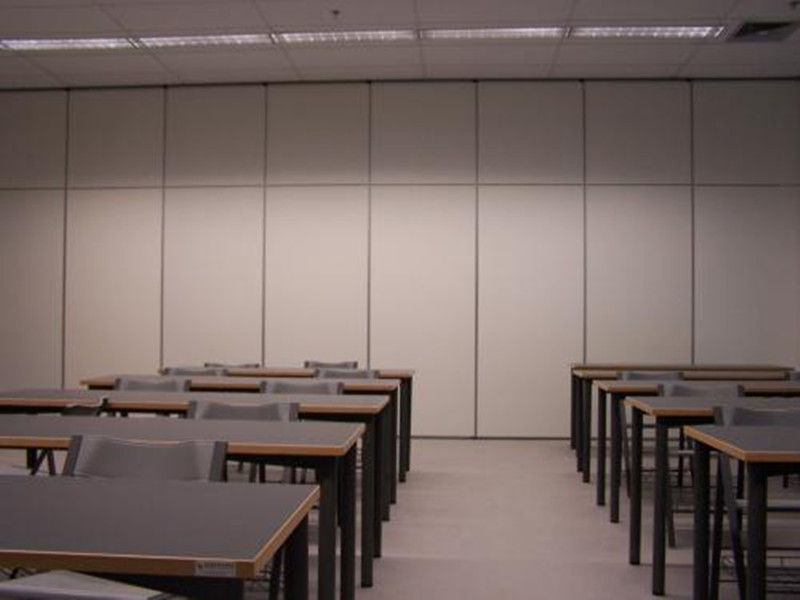

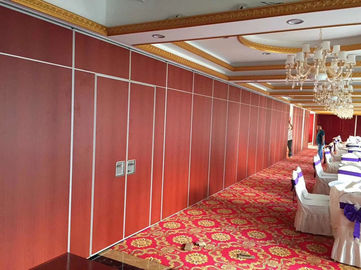

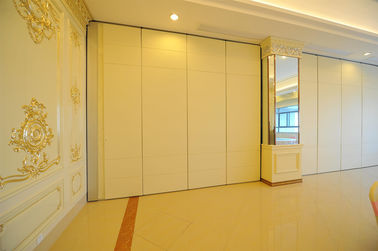

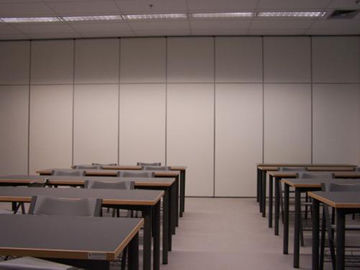

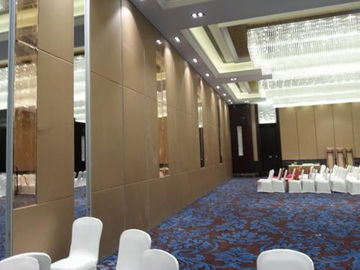

Folding partition wall is mainly using in multi function hall,banquet hall,laboratory,classroom,conference room,gymnasium,convention hall, kindergarten,art gallery,restuarant,meeting room,ballroom and etc.
Technical information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Advantage:
Long-term use: with more economy and higher decorative, beautiful and safe, will not scratch the skin.
Cost savings: installation does not affect the construction of smallpox and the ground.
Various forms: optional with a variety of occasions partition wall, can be customized according to customer requirements.
Easy combination: in the re-assembly can make full use of building materials.
Material environmental protection: selection of high-quality melamine particleboard, sound insulation and sealing a good variety of accessories a variety of options.
Our service:
We design and manufacture value for money products with a one year warranty on all the outstanding ranges illustrated in this brochure.
We offer a complete service package covering site surveys, CAD technical drawings, and quotation presentation. Emphasis is placed on quality assurance backed by a comprehensive after sales service.
