Melamine Surface Panel Height 5m Acoustic Room Dividers For Conference Room / Foldable Partition Wall
Product Details:
Place of Origin: | China,Guangzhou |
Brand Name: | BUNGE |
Certification: | ISO9001 |
Model Number: | Series 85 mm acoustic room divider |
Payment & Shipping Terms:
Minimum Order Quantity: | 10 square meters |
---|---|
Price: | 91 / 136 dollar per square meter |
Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 5000 square meters per month |
Detail Information |
|||
Material: | Aluminium Frame +MDF Board | Open Style: | Folding |
---|---|---|---|
Function: | Soundproof | Thickness: | 85 Mm |
Height: | 5 M | Service: | OEM Service |
Surface: | Melamine | Application: | Office,conference Room |
Position: | Commercial | ||
High Light: | sound proof room divider,banquet hall room dividers |
Product Description

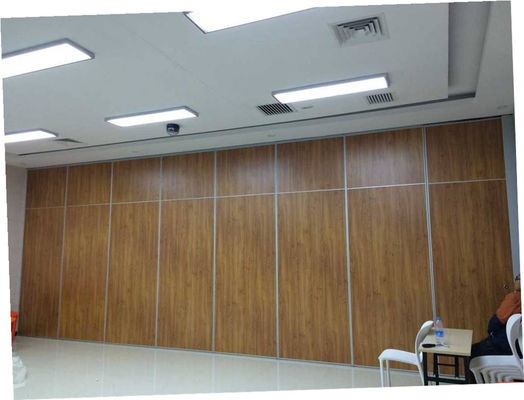

Melamine Surface Panel Height 5 m Sliding Folding Partition Wall Office Acoustic Room Dividers
Description:
Acoustic room dividers,Movable Partition Walls, the flexible space configuration, with little effort rooms can be partitioned, made smaller or larger to suit individual requirements, from conference rooms, school classrooms to large exhibition halls.
Options include single or double inset pass doors, glazing panels, virtually unlimited track arrangements and surface finishes, with melamine probably being the most popular.
Feature:
Individual panels that can be stored away for Maximum space usage.
Operable top and bottom seals for effortless operation.
Aluminum frame construction for enhanced acoustics.
The system offers various levels of sound reduction.
Unique track and carrier system ensuring quiet and easy operation.
Numerous panel stacking options for complete flexibility.
Top hanging and no floor track.
Extensive range of surface finishes can be available.
Advantage :
Divide the whole area into a number of rooms.
Provide privacy to the inmates from sight and sound.
Are fashionable in design, sizes and finishes customization.
Occupy lesser area.
Ceiling tracks, no floor track.
Sliding and folding.
Easily operate by manual in any position.
Application:
Movable partition wall is mainly using in multi function hall,banquet hall,laboratory,classroom,
conference room,gymnasium,convention hall,
kindergarten,art gallery,restuarant,meeting room,ballroom and etc.
Technical information:
TYPE | BG65 | BG85 | BG100 |
Panel suspension | Top hung only | ||
Track system | Single or twin point | ||
Panel thickness | 65 mm | 85 mm | 100 mm |
Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. | |
Max height | 4000mm | 6000mm | 18000mm |
Panel width |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
Frame | Aluminum | Aluminum | Aluminum |
Surface material | 9mm | 9mm | 12mm |
Fire safety | Optional class I | Optional class I | Optional class I |
Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals |
Operation of seals | Manual, with supplied operating handle | ||
Locking | Optional lock to passing doors | ||
Passing doors | Single open in one panel or double open in two panel | ||
Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
Our service:
We design and manufacture value for money products with a one year warranty on all the outstanding ranges illustrated in this brochure.
We offer a complete service package covering site surveys, CAD technical drawings, and quotation presentation. Emphasis is placed on quality assurance backed by a comprehensive after sales service.
