Floor To Ceiling Conference Room Movable Partition Wall With MDF Melamine Surface
Product Details:
| Place of Origin: | China,Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 65 mm sliding partition wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 89 /138 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Application: | Restaurant,hotel | Height: | 4 M |
|---|---|---|---|
| Material: | MDF Board+Aluminium | Thickness: | 65 Mm |
| Open Style: | Folding And Sliding | Service: | OEM/ODM Service |
| High Light: | sliding folding partition,sound proof sliding partitions |
||
Product Description

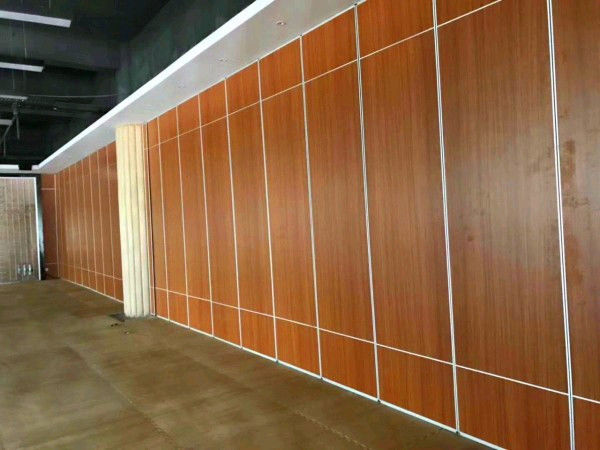

Floor to Ceiling Aluminium Track System Conference Room Movable Sliding Partition Wall
Description:
The sliding partition wall is a set of soundproof walls composed of every single partition. Each piece is equipped with two horizontal hanging wheels. It depends on the horizontal hanging wheel to make the hanging travel along the track. It can make a 90 degree right angle turn and travel freely.
Promote to other space collections, according to different space use needs, separated by multiple independent small space. The vertical contact points of each single piece partition are connected by concave and convex positions. The sealant strips are embedded and the upper and lower tops are equipped with a retractable soundproof seal mechanism.
Technical information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 18000 mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9 mm | 9 mm | 12 mm |
| Pass doors | Single door or Double door | ||
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
|
Finish Material |
Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Structure:
Sliding partition panels will be made from 12mm MDF boards and shall be 100mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminium frames with interlocking corner construction .The panel faces shall be finished with selected material.
Surface:
The panel surface will be as per the clients requirement finished either in Sliwal factory – China or by others. The normal finish such as:laminate,veneer,melamine,fabric etc.
Feature:
1. Floor less suspension: There is no track on the floor, just install the track on the ceiling;
2.Stable and safe: It is stable and reliable after being cut off, and it is not easy to swing;
3.Compartments environmental protection: the compartment effect is good, the maximum sound insulation coefficient up to 53 db;
4.Insulation and energy saving: excellent heat insulation performance, according to different occupancy rates, divide the large rating into small spaces to reduce air conditioning power consumption;
5.High-efficiency fire prevention: The production of high-efficiency fireproof materials, and good fireproof performance.
Our service:
1. Customize Design
We accept partition order with design given by you, so if you want to make partition with certain model which not yet in store we can order it also. A good design will make your house look nicer too, which is why do not forget to adjust the design first with the needs of the partition in your home.
2. Quick Creation
Partitioning services that we have will serve the partitioning quickly because the employees in charge of creating partitions are very experienced in this field. Do not hesitate to place a partition order in our place, especially if you want to order partitions in large quantities with certain deadlines, then we will be the best partner for you.
3. Quality Guaranteed
Finding a qualified partition is a task that you must do because not all Door Making Services Slides Fold can provide a quality partition. But you do not need to worry because we will give you the best space sealer, from the design side to its durability.
