High Sound Insulation Acoustic Operable Partition Walls With Aluminum Frame

High Sound Insulation Acoustic Operable Partition Walls With Aluminum Frame

Product Details:

Place of Origin: Guangdong
Brand Name: BANGE
Certification: ISO9001
Model Number: 85 mm sliding partition walls

Payment & Shipping Terms:

Minimum Order Quantity: 10 square meters
Price: US Dollars 80 - 120 per square meters
Packaging Details: Carton package, MDF batten on four section sides , foam board on both front face.
Delivery Time: 15-20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 square meters per month
Get Best Price Contact Now

Detail Information

Color: Accept Customized Application: Conference Room,office
Material: MDF+Aluminum Type: Commercial Furniture
Feature: Sound Proofing Product Name: Sliding Partition Walls
High Light:

acoustic sliding partition

,

sliding folding partition

Product Description

High Sound Insulation Aluminum Frame Acoustic Operable Sliding Partition Walls



Action Now:



1:Buy 30 square meters Get 5% Discount.



2:Buy 80 square meters Get 10% Discount.



3:Get a FREE SAMPLE.



4:Support a 3 YEARS WARRANTY.



5:Contact us for more details-Whatsapp:008613928983277.



Bunge Movable Partition Products as follow:


1. Ordinary Type : 65, 85; 100;


2. High Sound Proof Type: 85, 100;


3. Heavy Duty Type : 100, 125SH;


4. Glass Type: 65 (Glass Clip); 65 & 85(Aluminium Frame).



We Offer:


◆ A full professional design service.


◆ Survery and installation guide.


◆ Using top quality materials and components.


◆ A fully experienced work team.


◆ Maintenance contracts to ensure your valuable asset remains in full work order.

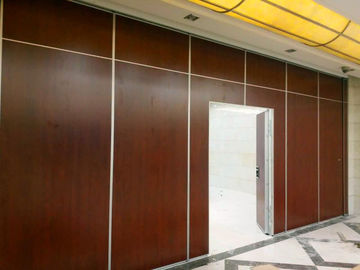

High Sound Insulation Acoustic Operable Partition Walls With Aluminum Frame 0
Specifications of Folding Partition Walls System


Series BG65 BG80 / BG85 BG100 & BG125
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65mm 80mm / 85mm 100mm
Panel height Up to 4000mm Up to 6000mm Up to 18000mm
Max height 4000mm 6000mm 18000mm
Panel width 600-1230mm 600-1230mm 600-1230mm
Frame construction Aluminum frame Aluminum frame Aluminum frame
Face material 9mm 9mm / 12mm 12mm
Fire safety Optional Class I or O Optional Class I or O Optional Class I or O
Vertical profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles
Retractable seals Aluminum black with
double rubber seals
Aluminum black with double rubber seals Aluminum black with double rubber seals
Operation of seals Manual, with supplied
operating handle
Manual, with supplied operating handle Manual, with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass doors Single open in panel or
double open in two panel
Single open in panel or double open in two panel Single open in panel or double open in two panel
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx30-48kg/sq M
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

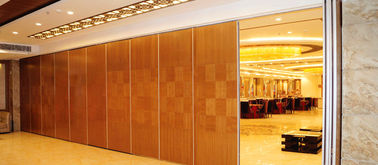

High Sound Insulation Acoustic Operable Partition Walls With Aluminum Frame 1

Features of Sliding Partition Walls



1. No need floor suspension: There is no track on the floor, just install the track on the ceiling;


2. Stable and safe: It is stable and reliable after being cut off, and it is not easy to swing;


3. Soundproof and environmental protection: sound insulation effect is good, the maximum sound insulation coefficient can reach 53dB;


4. Insulation and energy conservation: excellent insulation performance, according to different seating rates, the large space is divided into small spaces to reduce the air conditioning power consumption;


5.High-efficiency fire prevention: The use of high-efficiency fireproof materials, good fireproof performance.

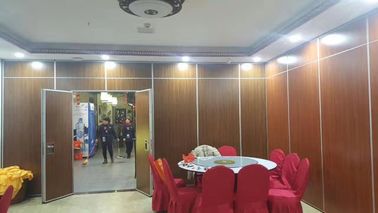

High Sound Insulation Acoustic Operable Partition Walls With Aluminum Frame 2
