Banquet Hall Wooden Acoustic Sliding Partition Walls / Movable Wall Panels
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | BANGE |
| Certification: | ISO9001 |
| Model Number: | 85 mm sliding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | US Dollars 80 - 120 per square meters |
| Packaging Details: | Carton package, MDF batten on four section sides , foam board on both front face. |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Sliding Partition Walls | Feature: | Sound Proofing |
|---|---|---|---|
| Size: | 85 Mm(3 1/4 Inch) | Color: | Accept Customized |
| Application: | Banquet Hall,hotel,ballroom | Position: | Interior |
| High Light: | acoustic sliding partition,sliding folding partition |
||
Product Description

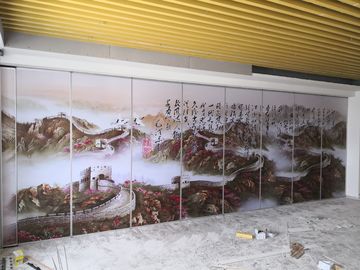

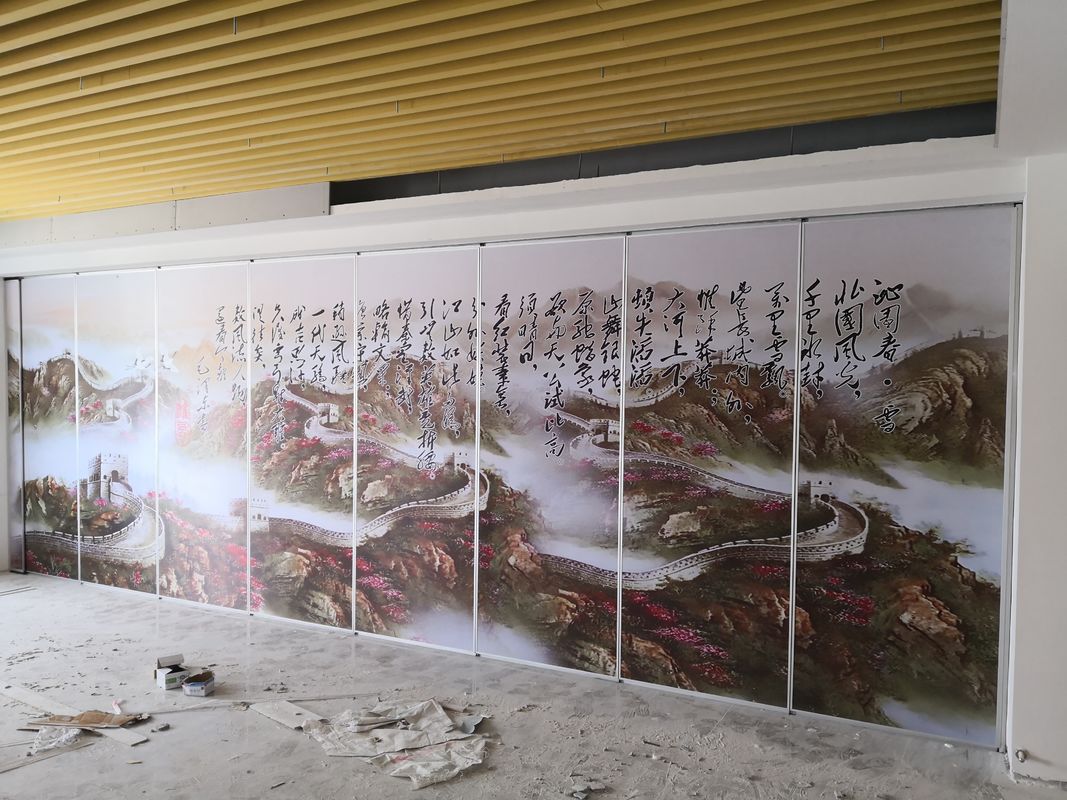

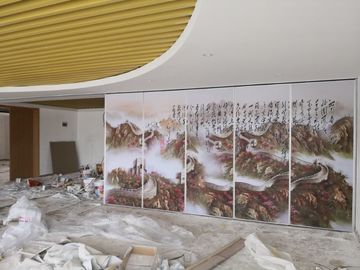

Banquet Hall Wooden Moveable Acoustic Sliding Partition Walls Panels
Specifications of Sliding Partition Walls System
| Model | BG65 Series | BG80 Series | BG100 Series | BG High-Series | |
| Suspensionsystem | Aluminum hanging | Steal Hanging | |||
| Basic Thickness | 65 mm | 80 mm | 100 mm | 100 mm | |
| Total thickness | 65/75/85/95mm | 80/90/100/110mm | 100/120/130mm | 100/120/130mm | |
| Max Height | Up to 3800 mm | Up to 6000 mm | Up to 8000 mm | Up to 15000 mm | |
| Width | 600-1230mm | 600-1230mm | 800-1230mm | 800-1230mm | |
| Floor/Ceiling Sealing Strength | Telescopic aluminum tube with rubber strip. | ||||
| Side walls sealing strength | Double seal tape | ||||
| Sound insulation level | 26-30 db | 28-34 db | 32-40 db | 42-52 db | |
| Panel structure | Aluminum frame with wooden keel | Aluminum frame with steel keel | |||
| Surface material | Melamine laminate/fabric/PU leather/wallpaper/veneer/customized | ||||
Advantages of Sliding Partition Walls
- High Soundproof and High Quality
The Rw for acoustic insulation (acoustic rating from 32dB to 55dB) is a fundamental aspect of movable sound-insulated walls and partitions. Bunge sliding partition walls are manufactured in accordance with strict construction and testing criteria to give a high level of quality. (These characteristics also apply to our special products like access doors that are fitted within wall systems. Furthermore, each individual project is given special attention at the design stage so that the requested sound-insulation is always attained. )
- Easy to Operate
Sliding partition walls have the characteristic of being very easy to maneuver and position. This is the result of the high quality, long-lasting components. The panels have a tongue-and-grove profile designed to obtain a perfect visual, geometric and sound-insulation continuity solution. An extendable pressure seal element is located at the top and bottom of each panel that provide sealing and panel stability to the floor and ceiling. Access doors, which are available in different sizes, are inserted in the panels and do not exceed the thickness of the wall system. Doors can be single of double leaf. The locking and releasing of the panels is done in an easy and rapid manner by means of a removable handle that operates a mechanical system. Panels are also easily slid on the overhead guide and this is guaranteed by a reliable mono or bi-track device and also because all systems have no floor guide. Panel storage is also extremely simple and can be designed to be hardly visible and various configurations are possible.
- Design and Technology
Design and technology are the essentials of a successful alliance of partition. The transformation of a large hall into two or more sound-insulated areas which perfectly respond to the requirements of the designer and the needs of the final user without sacrificing style and functionality, can all be achieved by means of Bunge movable sound-insulated walls. In view of the wide choice of finish available, Bunge movable walls can be personalized according to the individual whim or requirement.
- Widely application
The operable wall series is used wherever room space needs to be fully utilized. Hotels, conference centers, multi-function rooms, banquet halls, offices, training areas, etc. can all benefit from the flexibility of Bunge movable operable walls.
Details of Sliding Partition Walls
Sliding partition wall is also called movable partition wall. It can separate the space into several small spaces or turn several small spaces into big space ccording to your different need. Morever, it’s flexible sliding combination bring you a special experience.
1. Eight characters and functions:
(1) hang track on the ceiling, not the floor;
(2) heat insulation and fireproof
(3) stable and safe
(4) energy-efficientcy
(5) elegant appearance
(6) collection convenient
(7) widely used in different places
2. Usage:
Type 65 is suitable to use at 2m-3.5m height space.
Type 85 is suitable to use at 2m-6m height space.
Type 100 is suitable to use at 3m-9m height space.
3. Each panel load-bearing weight: 225kgs/ 450kgs/ 650kgs
4. Sound insulation coefficient:
Type 65 highest sound insulation coefficient can be reach is 36db.
Type 85 the highest sound insulation coefficient can be reach is 50db.
Type 100 the highest sound insulation coefficient can be reach is 53db.
