• Interior Commercial Auditorium Folding Room Dividers With Aluminium Track Roller
  • Interior Commercial Auditorium Folding Room Dividers With Aluminium Track Roller
  • Interior Commercial Auditorium Folding Room Dividers With Aluminium Track Roller
  • Interior Commercial Auditorium Folding Room Dividers With Aluminium Track Roller
Interior Commercial Auditorium Folding Room Dividers With Aluminium Track Roller

Interior Commercial Auditorium Folding Room Dividers With Aluminium Track Roller

Product Details:

Place of Origin: China,Guangzhou
Brand Name: BUNGE
Certification: ISO9001
Model Number: Series 65 mm sliding partition wall

Payment & Shipping Terms:

Minimum Order Quantity: 10 square meters
Price: 94/128 dollar per square meter
Packaging Details: Carton package, MDF batten on four section sides ,foam board on both front face.
Delivery Time: Shipped in 10 days after payment, based on the quantity.
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 square meters per month
Get Best Price Contact Now

Detail Information

Product Name: Sliding Partition Wall Application: Banquet Hall
Material: MDF Board+Aluminium Thickness: 85 Mm
Service: OEM Service Open Style: Folding
Height: 6 M Panel Thickness: 85 Mm
High Light:

acoustic sliding partition

,

sound proof sliding partitions

Product Description

Aluminium Track Roller Interior Commercial Folding Room Dividers Sliding Partition Wall



Description:



Sliding partition wall system is a high quality bespoke movable wall system to suit timber panels up to 150 kilogram in weight, there are multiple options for Door types, parking areas and track layouts.



Each door is a top hung straight sliding panel which sits inline with the other doors these panels can be moved into a parking area when the wall needs to be opened, pivot panels can be fixed or converted into sliding doors. Timber movable walls can be created to suit any space within reason.



Technical information:



Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Panel thickness 65 mm 85 mm 100 mm
Max height 4000 mm 6000 mm 18000 mm
Panel width 500-1200 mm 500-1200 mm 500-1200 mm
Face material 9 mm 9 mm 12 mm
Pass doors Single door or Double door
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw



Finish Material

Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

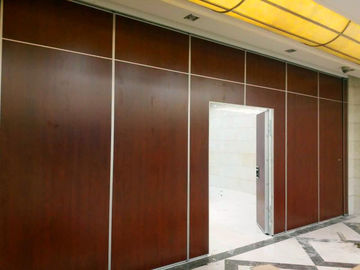

Interior Commercial Auditorium Folding Room Dividers With Aluminium Track Roller 0



Introduction:



The sliding partition wall is our individual panel partition system offering an acoustic insulation rating of up to 53 dB.


Ideally suited for high specification applications due to the sheer flexibility, numerous stacking arrangements available and the impressive acoustic qualities this system offers.



The panels are operated by means of an internal scissor-jack mechanism and move effortlessly along an aluminium head track, when closed they form a secure fixed wall.



Feature:



Top hung with no floor track.


Scissor-jack operating mechanism.


Available with virtually any surface finish.


Ideal for conference centers, hotels, offices & schools.


Angled, glazed, corner or junction panels for maximum flexibility.


Single or double point suspension for versatile stacking options.


Panels with hinged pass door, single or double leaf inset pass door panels for access through.

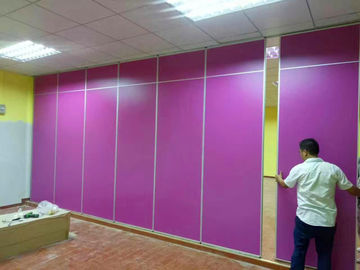

Interior Commercial Auditorium Folding Room Dividers With Aluminium Track Roller 1



Operate sliding partition wall:



When more flexibility is needed, multidimensional panels make it easy to rearrange the space. The system makes it possible to manually move the individual panels over multiple axes and thus to follow straight, curved or even crossed rails. As long as they remain on the same floor, the panels can be moved as far as a rail can drive them, whether for packing or storage.



Our service:



We design and manufacture value for many products with one year's warranty on all the outstanding ranges illustrated in this brochure.


They offer a complete service package covering site surveys, CAD technical drawings, and quotation presentation. Emphasis is placed on quality assurance backed by a comprehensive after sales service.
