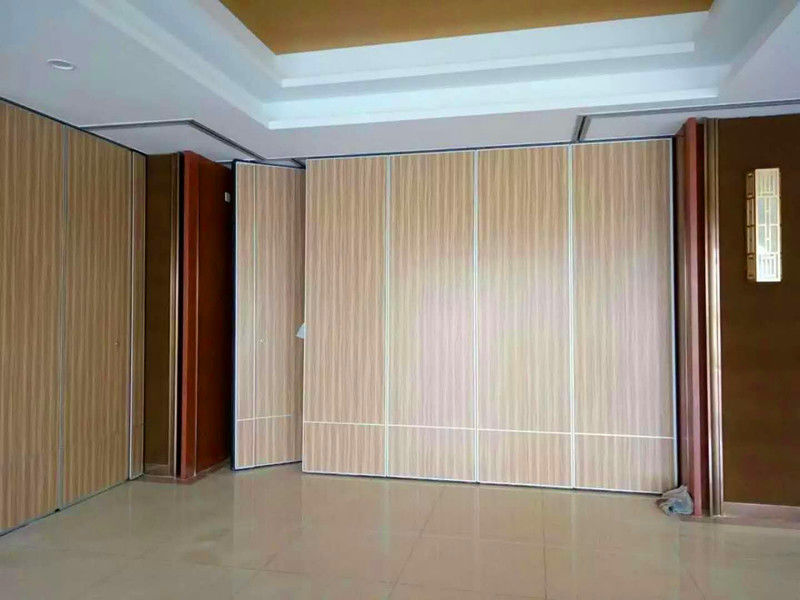

Portable Hotel Movable Partition Wall With Sound Reflective Material

Portable Hotel Movable Partition Wall With Sound Reflective Material

Product Details:

Place of Origin: China,Guangzhou
Brand Name: BUNGE
Certification: ISO9001
Model Number: Series 100 mm sound proof partition

Payment & Shipping Terms:

Minimum Order Quantity: 10 square meters
Price: 95 /129 dollar per square meter
Packaging Details: Carton package, MDF batten on four section sides ,foam board on both front face.
Delivery Time: Shipped in 10 days after payment, based on the quantity.
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 square meters per month
Get Best Price Contact Now

Detail Information

Finished: Fabric,Melamine Height: 7 M
Thickness: 100 Mm Color: Multi Color
Application: Hotel,restaurant Product Name: Sound Proof Partitions
High Light:

sounproof folding partition

,

movable sound proof partitions

Product Description

Movable Sound Reflective Material Portable Hotel Soundproof Partition Wall



Technical information:



TYPE Series 65 Series 85 Series 100
Panel suspension Top hung only
Track system Single or twin point
Panel thickness 65MM 85MM 100MM



Panel height

Up to 4000mm,Heights greater than 3000mm refer to our Technical Dept Up to 6000mm,Heights greater than 6000mm refer to our Technical Dept.inset Pass doors above 2400mm.Full Height pass door up to 3000mm high Document doors-optional
Max height 4000mm with heavy duty track 6000mm with heavy duty track 18000mm with heavy duty track or steel track
Panel width 600-1200mm
Frame construction Aluminium Aluminium Aluminium/steel
Face material 9mm/12mm 9mm/12mm 9mm/12mm
Fire safety optional Class I or O



Vertical profiles

Aluminium,anodize with sealing profiles,painted-optional Aluminium,anodized with sealing profiles,painted-optional Aluminium,anodized with sealing profiles,painted-optional

Retractable

seals

Aluminium,black with double rubber seals Aluminium,black with double rubber seals Aluminium,black with double rubber seals
Operation of seals Manual,with supplied operating handle
Locking Optional lock to pass doors
Pass Doors Single open in panel or double open in two panel
















































Specification:



The sound proof partition wall has brought great change to people's work and daily life. It can divide the large space into several individual rooms which can meet your specific need.



The partition wall is usually used in high-end hotels or restaurants. when holding some kinds of activities by different guests, such as holding wedding ceremony, victory banquet and some other big parties, we can fold the partitions, while at other time we can unfold them. The whole process is quite easy and convenient.



Series 100
It is thickness 100 mm (3 15/16 inch) per panel. Maximize height is about 8 meters.Soundproof feature is about 42 dB to 53 dB.

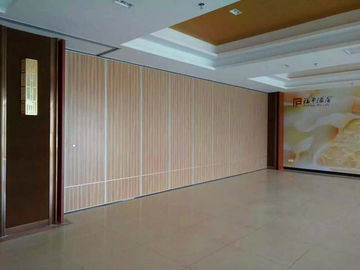

Portable Hotel Movable Partition Wall With Sound Reflective Material 0



Feature:



1.Top hung with no floor track required.


2.Retractable acoustic seals at top and bottom of each panel operated either by a quick release handle.


3.Single or twin point suspension for central or offset stacking options.


4.Variable track arrangements.


5.Whiteboard or Painted.


6.Optional inset pass doors,easy to be in or out.


7.Closure panel fitted with face operated telescopic "nose".



Structure:



The sliding partition wall panels are operated by means of an internal scissor-jack mechanism and move effortlessly along an aluminium head track, when closed they form a secure fixed wall.



Partition wall system is a high quality bespoke system to suit timber panels up to 150 kilograms in weight, there are multiple options for Door types, parking areas and track layouts.



Each door is a top hung straight sliding panel which sits inline with the other doors these panels can be moved into a parking area when the wall needs to be opened, pivot panels can be fixed or converted into sliding doors. Timber movable walls can be created to suit any space within reason.

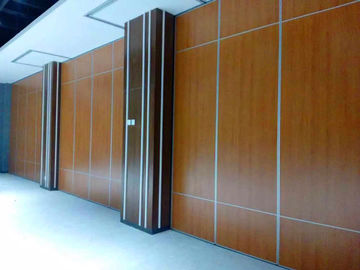

Portable Hotel Movable Partition Wall With Sound Reflective Material 1



Structure:



When the operable folding wall system is supported at the ceiling it runs along an adjustable aluminum upper track that is equipped with bearings inside of carriages. This enables the walls height to be adjusted by 15 mm.



The carriages are installed on every second wall panel and are located at the center of the panel. Because the wall hangs from the ceiling, it is important for the installation of the wall that the wall is attached to something solid (i.e. concrete ceiling, steel structure, wood beam etc).



In the case that the folding wall is supported by the ground, an aluminum track is installed on the floor where the carriages move the wall and at the top there is a guiding track. The height is also adjustable by 15 mm.
