Customized Foldable Operable Sliding Partition Walls Floor to Ceiling Aluminum Frame
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | BANGE |
| Certification: | ISO9001 |
| Model Number: | 85 mm sliding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | US Dollars 80 - 138 per square meters |
| Packaging Details: | Carton package, MDF batten on four section sides , foam board on both front face. |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Colors: | Can Be Customized | Product Name: | Sliding Partition Walls |
|---|---|---|---|
| Feature: | Sound Proof | Application: | Conference Room,office |
| Surface: | Plywood,mdf,melamine,fabric,leather | Height: | 2000 - 15000 Mm |
| High Light: | sliding folding partition,sound proof sliding partitions |
||
Product Description

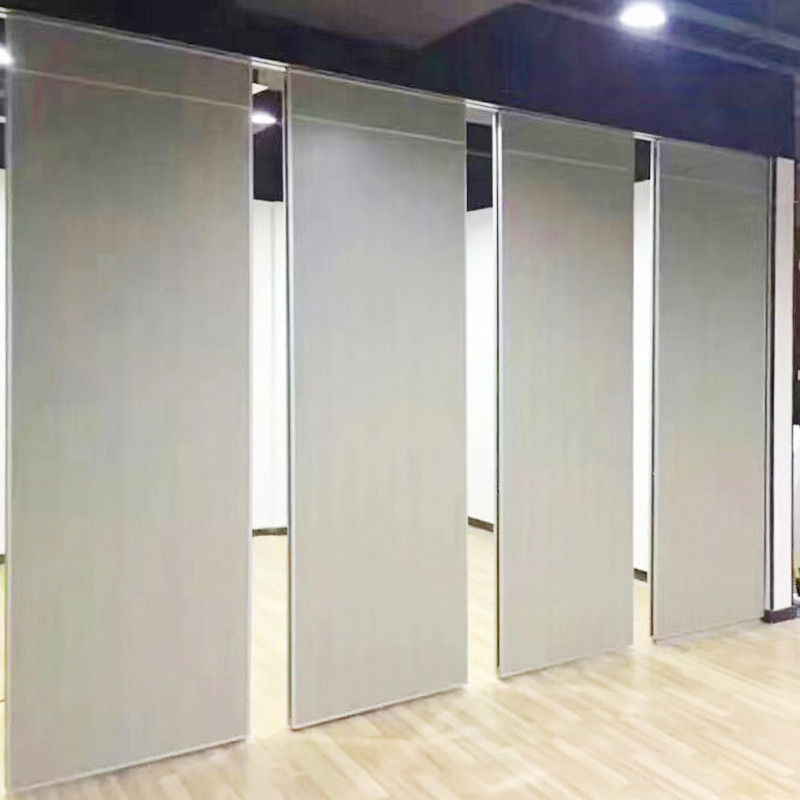

Aluminum Frame Floor to Ceiling Folding Sliding Operable Partition Walls
Features of Sliding Partition Walls System
1. No rail suspension: the floor has no track, just install the track on the ceiling;
2. Stable and safe: stable and reliable after partitioning, not easy to swing;
3. Sound insulation and environmental protection: sound insulation effect is good, the sound insulation coefficient can reach 53dB;
4. Insulation and energy saving: excellent thermal insulation performance, according to different occupancy rates, the large space is divided into small spaces to reduce air conditioning power consumption;
5. Efficient fire prevention: It is made of high-efficiency fireproof material and has good fireproof performance;
6. Beautiful and generous: the sliding partition walls surface is arbitrarily decorated, and can be combined with the interior decoration effect;
7. Retractable and flexible: the sliding partition wall is freely retractable and flexible, and one person can complete the whole process of partitioning;
8. Convenient collection: When closing the board, the partition can be hidden in the special storage cabinet, which does not affect the overall appearance;
9. Wide range of applications: can be used in conference halls, exhibition halls, restaurants, high clean factories and offices
Specifications of Sliding Partition Walls System
| Model | TG-65 series | TG-85 series | TG-100 series |
| Suspension system | Aluminum hanging | Aluminum hanging | Aluminum hanging |
| Basic thickness | 65mm | 85mm | 100mm |
| Total thickness | 65/75/85/95mm | 80/90/100/110mm | 100/120/130mm |
| Max height | Up to 3800mm | Up to 4500mm | Up to 6500mm |
| Width | 600-1230mm | 600-1230mm | 800-1230mm |
| Floor/ceiling sealing strength | Telescopic aluminum tube with rubber strip | ||
| Side walls sealing strength | Double seal tape | ||
| Sound insulation level | 26dB-30dB | 28dB-34dB | 32-40dB |
65 mm frame of the Sliding Partition Walls System
The frame of the 65-type sliding partition walls refers to the material used for the frame when the door panel is spliced. The 6055-T6 high-hardness aluminum alloy material can be used as the raw material for the partitioning aluminum alloy. The conventional oxidation color can be processed according to the customer's other colors.
The total thickness of the 65-type sliding partition walls frame can be 65mm. According to the thickness of the door panel, there are several models such as 65 type, 85 type and 100 type.
The 65-type sliding partition walls uses 9mm slots on both sides as the fixed position of the board, and the middle is filled with soundproof cotton. Built-in transmission rod, with the principle of jack, easy to lock the sliding partition walls with the transmission setting, the operable wall is as strong and solid as the solid wall. As long as the track is pre-buried before the ceiling is made, there is no need to lay the track on the ground.
FAQ of Sliding Partition Walls System
1. Are you a trading company or a factory ?
Our company was established in Guangzhou city,. We are a manufacturer engaged in sliding partition walls for more than 10 years. Welcome to visit our factory in Guzngzhou.
2.How can you guarantee the quality?
We provide three years warrenty.
3.How to finalize orders?
Please send your room drawing and provide requirements like partition surface finished and soundproof requirements, we will design the sliding partition walls for free. After your confirmation, we can start production.
4.How long is the lead time?
.
Normally 10-25 days upon receiving the deposit, base on the quantity 300 SQM
5.Can you do the installation?
Yes, we can send engineer to guide installtion, details please contact us.
6.How is the soundproof quality ?
From 30dB to 52dB, depends of which type and what partition surface finished you need. Contact us and we will provide professional suggestions.
