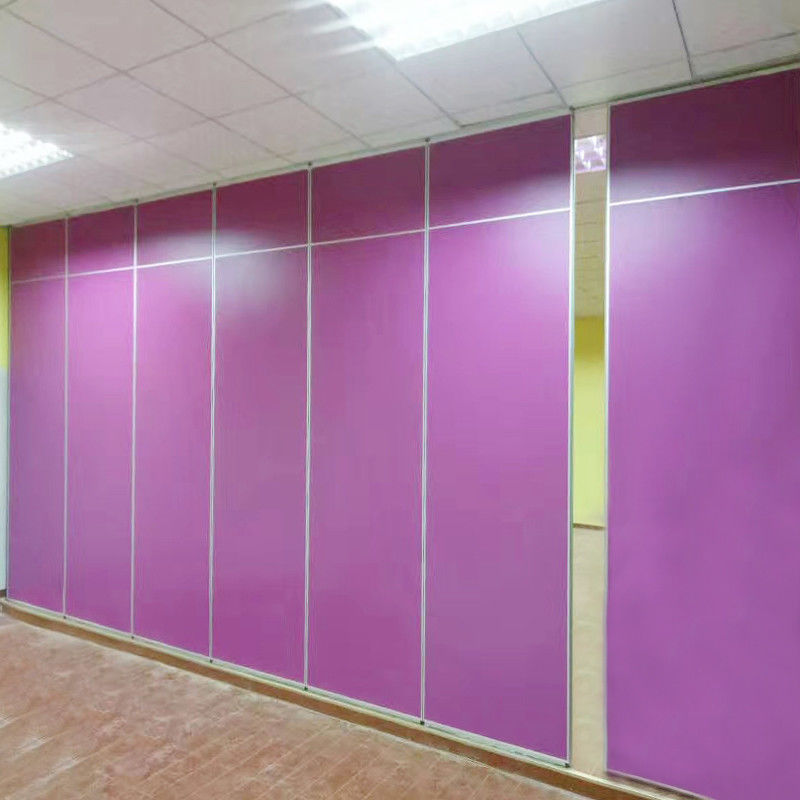

Modern Hotel Sliding Acoustic Partition Wall Melamine Surface Hanging System
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | BANGE |
| Certification: | ISO9001 |
| Model Number: | 85 mm acoustic partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | US Dollars 80 - 138 per square meters |
| Packaging Details: | Carton package, MDF batten on four section sides , foam board on both front face. |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Application: | Hotel,banquet Hall | Product Name: | Acoustic Partition Walls |
|---|---|---|---|
| Surface: | Melamine | Feature: | Sound Proofing |
| Position: | Interior | Width: | 800-1200 Mm |
| High Light: | acoustic operable wall,movable acoustic partition walls |
||
Product Description
Melamine Surface Hanging System Movable Sliding Acoustic Partition Walls
Details of Acoustic Partition Walls System
1. Poduction: 5000 squre meter per month;
2. All of the acoustic partitions are customized;
3. Three series for different choice:
65mm—up to 4ms H, 85mm—up to 6ms H, 100mm—up to 13ms H;
4. Panels width: 600mm to 1200mm, also can 2ms width for special request;
5. Panels height: up to 13ms height.
6. Panels thickness: 65mm—(2 9/16)”, 85mm—(3 3/8)”, 100mm—(3 15/16)”,
7. Sound proof: from 20db to 53db.
Bunge's reputation for quality and reliable products, clever designs and an insistence on excellent service is the reason why architects, engineers and contractors routinely insist on Bunge partition walls for their building projects.
Specifications of BUNGE Acoustic Partition Walls System
| TYPE | BG65 | BG85 | BG100 & BG125 |
| Panel suspension | Top hung only | ||
| Track system | Single or twin point | ||
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. | |
| Max height | 4000mm | 6000mm | 17000mm |
| Panel width |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
| Surface material | 9mm | 9mm | 12mm |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
| Locking | Optional lock to passing doors | ||
| Passing doors | Single open in one panel or double open in two panel | ||
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-52dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
Features of BUNGE Acoustic Partition Walls System
1. Movable, interlocking panels suspended from an overhead track system.
2. Sound rated panels for effective noise control.
3. Available in paired (folding) and individual (omni-directional) configurations.
4. Can include access doors for easy entry and exit.
5. Blend with a room's aesthetics, similar to a permanent wall when extended.
6. Available in a wide range of colours and finishes, including: MDF, Melamine, Fabric, Leather, veneer,Landscope painting, Wall paper, Wood mouldings, etc.
We Offer:
1) A full professional design service.
2) Survey and installation guide.
3) Using top quality materials and components.
4) A fully experienced work team.
5) Maintenance contracts to ensure your valuable asset remains in full work order.
6) Modern, Comfortable, Elegant and endurable, Environmentally-friendly materials.
7) Different styles with different material and price range, control cost in the best way.
8) Customized service: OEM, ODM available.
Common Applications of Acoustic Partition Walls System
1. Studios, recording rooms, listening rooms, rehearsal rooms and more professinally interspace timbre projects.
2. Theaters, indoor gymnasiums, discos, KTV rooms and more performance and entertainment location.
3. Meeting rooms, offices, halls, hotels and more sound absorption and secrecy projects.
4. Air-port, railways, bus-stops, manufactories, workshops and more noise reduction projects.
