Conference Room Removable Partition Wall Panel Width 500 mm - 1230 mm
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | BANGE |
| Certification: | ISO9001 |
| Model Number: | 85 mm sliding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | US Dollars 78 - 120 per square meters |
| Packaging Details: | Carton package, MDF batten on four section sides , foam board on both front face. |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Width: | 85 Mm(3 1/4 Inch) | Finish: | Fabric |
|---|---|---|---|
| Colors: | Accept Customized | Open Style: | Sliding |
| Feature: | Sound Proofing | Surface: | Melamine,leather,fabric,plywood |
| Application: | Conference Room,Office | Panel Width: | 500 Mm--1230 Mm |
| Product Name: | Sliding Partition Walls | Position: | Interior |
| High Light: | acoustic sliding partition,sliding folding partition |
||
Product Description

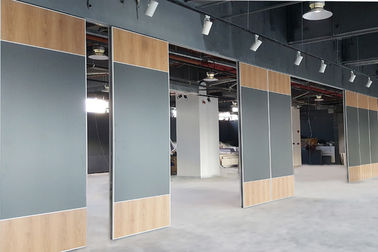

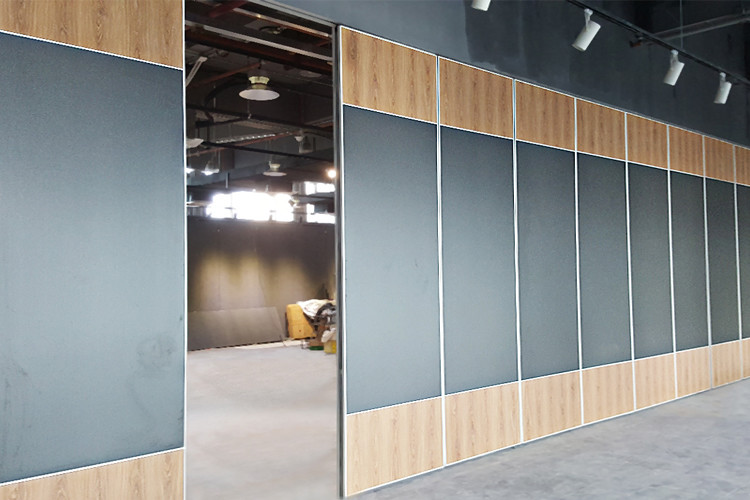

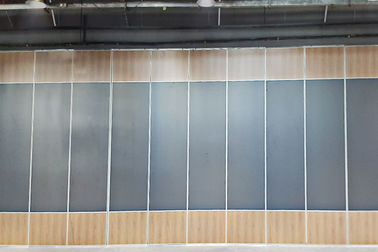

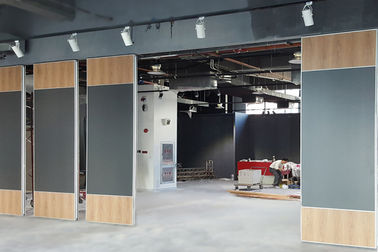

Conference Room Office Sound Proofing Removable Folding Sliding Partition Walls
The procedure of installing the sliding partition walls
1. Please designate the responsible person before construction and leave contact information to facilitate communication between the two parties on construction logistics.
2. If the ground has been finished before the track construction, if the carpet, floor tiles, floor, etc. have been laid, you need to do ground protection to prevent the welding sparks from damaging the ground.
3. You need to provide the height of the shed after the decoration is completed. We will determine the height of the track installation according to this height.
4. Because we need to calculate the size of the hanging track, you need to provide the net size of the finished wall and the pillar. We will hang the track according to this size.
5. After the track suspension is completed, the reserved wall size given by you cannot be changed. Because we calculate the construction according to this size, if the size is changed, the door panel will not operate.
6. After the track suspension is completed, our construction personnel will fill in the dimensional confirmation letter to provide accurate data for the production of the wallboard. You need to specify the person in charge of the site to confirm.
7. The movable partition should be horizontally perpendicular to the ground directly below the track, and the error should not exceed 1cm.
8. If there are other constructions at the same time, please do not pierce the foreign objects such as nails and insert them on the installed rails. This will cause the door pulleys to not run in the track.
9. Each group of tracks will have a “raw mouth”, which will be removed before installing the door panel, and then installed after the door panel is installed. This "raw mouth" cannot be sealed.
10. In order to facilitate future maintenance and maintenance, please reserve the inspection port near the ceiling track to facilitate the maintenance personnel to enter the inspection port for product maintenance and maintenance.
11. If you need to improve the sound insulation effect of the product, after the track is hung, you can make sound insulation between the track and the original shed.
12. After the door panel is hung, it needs to be debugged. Active partition reminder Do not use the door panel before our personnel have debugged the door panel, otherwise forcible use will result in damage to the door panel.
Specifications of Acoustic Movable Partition Walls System
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65mm | 85mm | 100mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9mm | 9mm | 12 mm |
| Pass doors | Single door or Double door | ||
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
The features of movable partition walls
1. No rail suspension: the floor has no track, just install the track on the ceiling;
2.Stable and safe: stable and reliable after partitioning, not easy to swing;
3.Sound insulation and environmental protection: sound insulation effect is good, the sound insulation coefficient can reach 53dB;
4.Insulation and energy saving: excellent thermal insulation performance, according to different occupancy rates, the large space is divided into small spaces to reduce air conditioning power consumption;
5.Efficient fire prevention: It is made of high-efficiency fireproof material and has good fireproof performance;
6.Beautiful and generous: the surface is arbitrarily decorated, and can be combined with the interior decoration effect;
7.Retractable and flexible: the partition is freely retractable and flexible, and one person can complete the whole process of partitioning;
8.Convenient collection: When closing the board, the partition can be hidden in the special storage cabinet, which does not affect the overall appearance;
10.Wide range of applications: can be used in conference halls, exhibition halls, restaurants, high clean factories and offices
