Sliding Aluminium Track Wheel Classroom Wall Partitions / Wooden Room Dividers
Product Details:
| Place of Origin: | China,Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 85 mm movable partition wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 91 / 135 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Function: | Soundproof | Color: | Multi Color |
|---|---|---|---|
| Height: | 6 M | Service: | OEM Service |
| Metal Type: | Aluminium | Thickness: | 85 Mm |
| Open Style: | Sliding | Width: | 500-1200 Mm |
| Position: | Commercial | Application: | Classroom,office |
| Panel Type: | Melamine | ||
| High Light: | movable walls on wheels,movable partitions systems |
||
Product Description

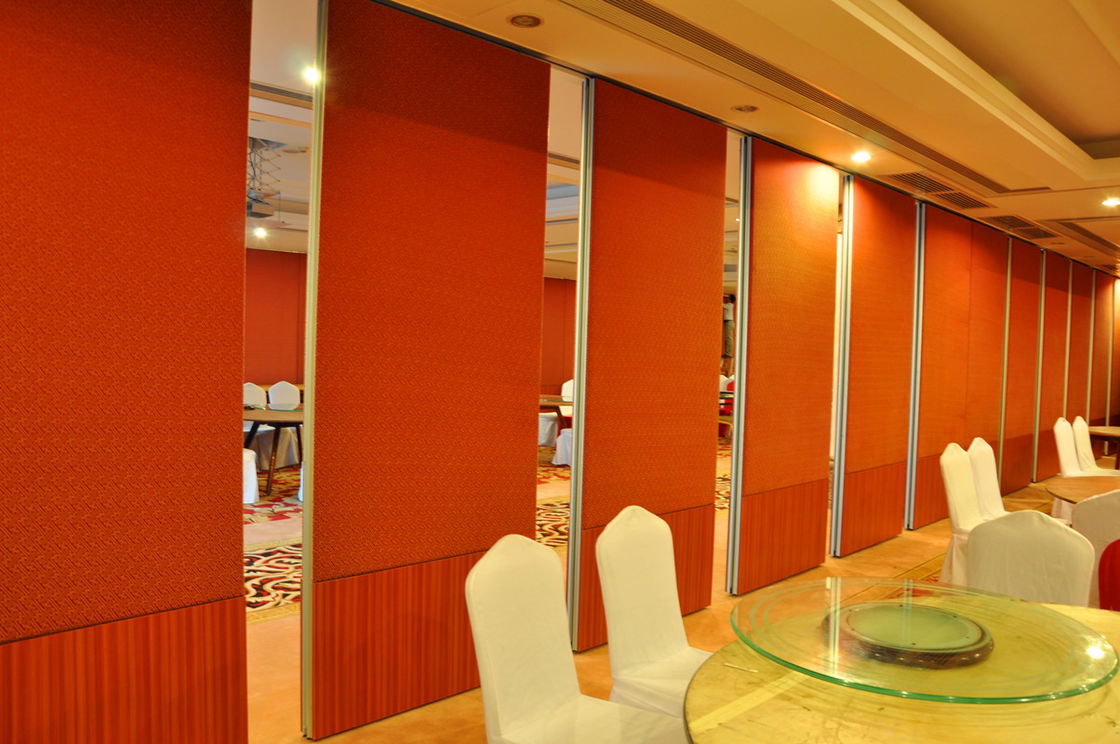

Sliding Aluminium Track Wheel Wooden Room Dividers Classroom Movable Partition
Description:
The movable partition wall is a set of soundproof walls composed of every single partition. Each piece is equipped with two horizontal hanging wheels. It depends on the horizontal hanging wheel to make the hanging travel along the track. It can make a 90 degree right angle turn and travel freely.
Promote to other space collections, according to different space use needs, separated by multiple independent small space. The vertical contact points of each single piece partition are connected by concave and convex positions. The sealant strips are embedded and the upper and lower tops are equipped with a retractable soundproof seal mechanism.
Feature:
1. Each partition relies on a universal suspension wheel to make a suspended movement along the rails. It can make a 90-degree right-angle turn and can flexibly space multiple independent spaces.
2. The outer frame of the partition is made of reinforced aluminum alloy, and the interior is equipped with a retractable soundproof seal mechanism.
3. Active partition screen models: 65 type, 85 type, 100 type, ultra-high type, high interval, etc., the external reference plane gypsum board, MDF, iron, color steel and other options.
4. In the division of hotel rooms can be up to sound insulation, the highest sound insulation can reach 53 decibels.
Technical information:
| Panel Suspension | Top hanging system without the need for a floor track. |
| Panel Width | Each panel 600mm-1200mm. |
| Track | Aluminum Or Steel Track |
| Roller on panel | Single or Double Roller |
| Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top and bottom seals | Top and bottom pressure retractable seals ensure effortless moved and locked. |
| Module | 700mm - 1200mm maximum. |
| Panel stacking | Numerous panel stacking options for complete flexibility. |
| Panel Surface | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
| Finishes | Satin anodized or polyester powder coating to all exposed aluminium components available in a wide range of colour as standard. |
Track adjustment:
1. Remember that the rails are loose enough on all brackets. Guaranteed track pause time.
2. Tighten all rail connections and adjust the rail height correctly. The rail mounting direction must also be straight and horizontal.
3. In the installation of track facilities, sound insulation and mineral wool are necessary for installation.
4. There are "L", "T" and "Ten" spurs for the track. There are left and right points for the connection of the steering. It is generally not recommended to use the "10" spur. L and T are trimmed to their corresponding size, and their position is indicated by a numerical marker.
Advantage:
Whether you’re looking for acoustic movable walls to minimize unwanted sounds or to modernism the layout of your office, we have just the solution! Our acoustic movable walls are designed to suit your exact specification, including your unique budget requirements. No matter which of our concertina walls you choose to install to your property, you’re sure to discover products that are priced competitively, making it inevitable for you to receive the best value for your money.
Getting the design of your office perfect will enable you to increase the productivity and work efficiency of your workforce. When it comes to maximizing space, movable Partitions can help you to create an environment that is practical and encouraging for your employees and any visitors. The acoustic movable walls and folding partitions are designed to open easily, welcoming natural light and creating an illusion of extra space.
Operation:
When more flexibility is needed, multidimensional panels make it easy to rearrange the space. The system makes it possible to manually move the individual panels over multiple axes and thus to follow straight, curved or even crossed rails. As long as they remain on the same floor, the panels can be moved as far as a rail can drive them, whether for packing or storage.
