Operable Room Division Hotel Sound Proof Partition Wall Aluminium Frame
Product Details:
| Place of Origin: | China,Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 85 mm sound proof partitions |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 87 /125 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Finished: | Melamine | Certificate: | ISO9001 |
|---|---|---|---|
| Height: | 6 M | Thickness: | 85 Mm |
| Width: | 500-1200 Mm | Application: | Hotel,great Hall |
| Product Name: | Sound Proof Partitions | Service: | OEM Service |
| Open Style: | Sliding | Position: | Commercial |
| Color: | Multi Color | ||
| High Light: | sounproof folding partition,movable soundproof partition |
||
Product Description
Aluminium Frame Acoustic Operable Room Division Hotel Sound Proof Partition Walls
Technical information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 18000 mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9 mm | 9 mm | 12 mm |
| Pass doors | Single door or Double door | ||
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
|
Finish Material |
Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Specification:

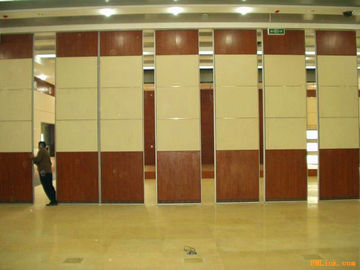

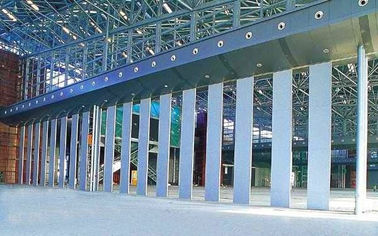

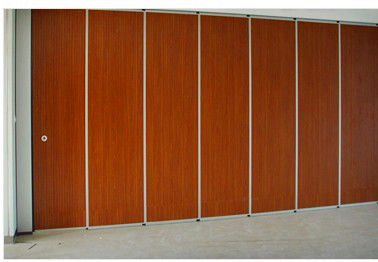

Movable Partition Walls, the flexible space configuration, with little effort rooms can be partitioned, made smaller or larger to suit individual requirements, from conference rooms, school classrooms to large exhibition halls.
Options include single or double inset pass doors, glazing panels, virtually unlimited track arrangements and surface finishes, with melamine probably being the most popular.
The best door for maximum acoustic performance, with variable options on sound reduction from 32 dB (Rw) to 53 dB(Rw).
Surface:
1. The partition wall of the movable partition series consists of glass, melamine board, fire board, color steel plate, gypsum board and other decorative materials.
2.The heart is made of aluminum alloy frame and steel with fire, moisture, noise, environmental protection, non-deformation and other functions, in the hotel partition layout, color and surface decoration, etc. to maintain the hotel after the partition is simple and exquisite, durable and flexible use Diversified spaces and very stylish hotel interior style after partition.
Feature:
1.Space management ~ Movable walls offer an effective space solution for many environments including offices, educational establishments, sporting facilities, dining and entertainment facilities, religious centres, or retail areas.
2.Smart use of space – Movable walls offer a flexible solution for making the most of an interior space. Room sizes can be changed in a matter of moments to capitalise on the revenue potential of commercial space or simply create the most efficient use of floor space.
3.Acoustics ~ the movable wall is the highest specification range of fully operable, individual-panel systems. Acoustic insulation of up to 53 dB noise reduction is achieved with a combination of acoustic infill’s and operable top and bottom seals.
Operation:
When the operable seals are retracted, panels glide effortlessly and quietly along the unique aluminium overhead track system (no need for floor guide).
Telescopic end panels enable the wall to be locked off to complete the acoustic seal. The track and carrier system provides ease of operation and directional flexibility, allowing panel stacking in countless configurations.
FAQ:
1.How to select the suitable movable wall for your site?
We have 4 types of movable wall, 65 type, 85 type, 100 type and 125 ultra-high type.
You can choose the right movable wall upon the height and soundproof requirement as following.
65 type- Max height: 4000 mm,soundproof:32db to 43 db.
85 type- Max height: 6000 mm,soundproof:38db to 50 db.
100 type- Max height: 9000 mm,soundproof:42db to 55 db.
125 type- Max height: 17000 mm,soundproof:42db to 55 db.
2.What you should do on site?
A beam should built on site for track installation. The minimum distance leaving for track installation from false ceiling to top ceiling is 180 mm.
3.How to install?
We will provide the installation manual and video guiding the installation job.We can also dispatch the installation engineer supervising the installation as request.
