85mm Operable Sliding Partition Walls For Multi - Purpose Hall Decorative
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | BANGE |
| Certification: | ISO9001 |
| Model Number: | 85 mm sliding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | US Dollars 80 - 120 per square meters |
| Packaging Details: | Carton package, MDF batten on four section sides , foam board on both front face. |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Open Style: | Sliding | Product Name: | Sliding Partition Walls |
|---|---|---|---|
| Feature: | Sound Proofing | Size: | 85 Mm |
| Color: | Accept Customized | Application: | Office,hotel,conference Room |
| Panel Width: | 500 Mm--1230 Mm | Door Material: | Melamine Board |
| Surface: | Melamine,leather,fabric,plywood | Position: | Interior |
| Width: | 85 Mm(3 1/4 Inch) | ||
| High Light: | sliding folding partition,sound proof sliding partitions |
||
Product Description

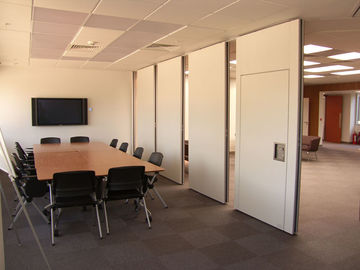

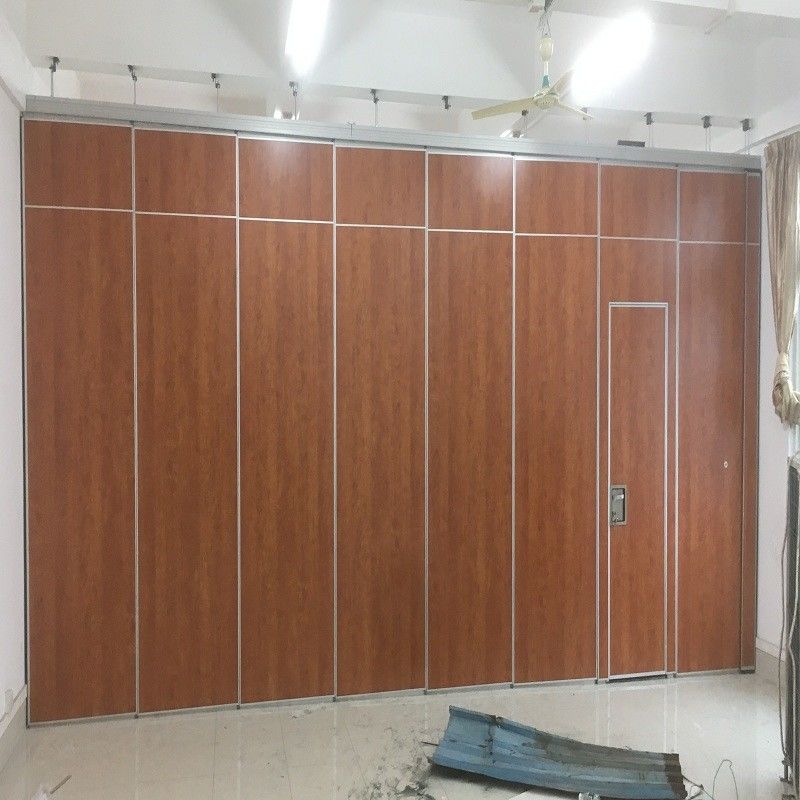

Multi-Purpose Hall Decorative Acoustic Operable Sliding Partition Walls
Brand Name:BUNGE
Year of Establishment:2011
Model Number:85 mm acoustic operable walls
MOQ:10 square meters
Delivery Time:8-12 days
Supply Ability:5000 square meters per month
Packing Details:Carton package,outside with wooden boxes.
Payment Terms:T/T is most common for us,others are also ok.
Specifications of Sliding Partition Walls System
| Model | BG65 | BG85 | BG100 |
| Suspension system | Aluminum hanging | Aluminum hanging | Aluminum hanging |
| Basic thickness | 65mm | 85mm | 100mm |
| Total thickness | 65/75/85/95mm | 80/90/100/110mm | 100/120/130mm |
| Max height | Up to 3800mm | Up to 6000mm | Up to 8000mm |
| Width | 600-1230mm | 600-1230mm | 800-1230mm |
|
Floor/ceiling sealing strength |
Telescopic aluminum tube with rubber strip | ||
|
Side walls sealing strength |
Double seal tape | ||
| Sound insulation level | 26dB-30dB | 28dB-34dB | 32-40dB |
Advantages of Sliding Partition Walls System
◆Junction of sliding partition walls modules meet requirements for corner, three or four way abutments.
◆The sliding partition wall is a hanging system.Top hung without track at floor level.
◆ Retractable acoustic seals at top and bottom, operated either by quick release handle or semi-automatically with electronic controls.
◆Acoustic operable walls panel finishes include vinyl, veneer, melamine laminate, a magnetic dry wipe enamelled writing surface or paint.
◆Single or two point suspension for centre or remote parking options.
◆The sliding partition walls are made of high quality 6063-T5 aluminum materials,all of them are strong and wear resistant.
Aluminum Components of Sliding Partition Walls System
Tracks:Made of good quality anodized aluminium 6063-T5 materials,hanging the acoustic operable walls panels with wheels.
Wheels/Rollers:It is the carrier for the acoustic operable walls,let the panels move more flexibly.Pulley bearing is more than 1600 KGS.
Connectors:Made of anodized aluminium 6063-T5 aluminum tracks,“L”, “T”, “＋”types are available.
Rubber/vinyl seal:Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.
Rock Wool:Density of 60kg/m3,help us reduce the noise and heat.
Handle:Operate the retractable being up and down.
Retractable mechanism:Control the movement of the top and bottom seal to form a excellent sound insulation performance.
Magnetic Strip:Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the acoustic operable walls.
MDF board:9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g.
Common Applications of Sliding Partition Walls System
BUNGE sliding partition walls can be used to Convention Centers, Gymnasiums, Religious Facilities, Hotels, Auditoriums, Corporate Training Facilities, Civic or Exposition Halls, Schools, Banquet Facilities, etc.
With BUNGE sliding partition walls systems, there are no more barriers to maximizing the potential of your available building spaces.
