Product Details:

Place of Origin: China,Guangzhou
Brand Name: BUNGE
Certification: ISO9001
Model Number: Series 85 mm movable partition wall

Payment & Shipping Terms:

Minimum Order Quantity: 10 square meters
Price: 95 / 129 dollar per square meter
Packaging Details: Carton package, MDF batten on four section sides ,foam board on both front face.
Delivery Time: Shipped in 10 days after payment, based on the quantity.
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 square meters per month
Get Best Price Contact Now

Detail Information

Function: Soundproof Color: Multi Color
Height: 4 M Service: OEM Service
Metal Type: Aluminium Thickness: 65 Mm
Open Style: Sliding Width: 500-1200 Mm
Position: Commercial Application: BA
Panel Type: Melamine
High Light:

movable partitions systems

,

acoustic movable walls

Product Description

Acoustic Folding Partition Wall,Movable Wall Partitions,Office Partition Wall​



Description:


Whether you are looking for a space-division solution for your residential, small commercial or large commercial application, partitions are trouble free. Each partition is custom made to fit your opening, so that you don't have to make your opening fit the partition.


Movable partitions have been the perfect solution for millions of customers worldwide. From the handsome, rigid folds of our single-panel and twin-panel models to the soft folds of our model, it provides a solution for almost every conceivable sound and sight division requirement.



Movable partitions are installed throughout all types of educational institutions, convention centers, hotel conference rooms and meeting rooms, medical and religious facilities, corporate offices, training facilities, restaurants and lounges, apartment complexes and homes worldwide. This is just to name a few.



Because of their design statement and performance, movable partitions have become the product of choice, preferred over other comparably priced accordion partitions that offer so much less.


Feature:


Maximize your space and versatility your workplace.


Supply high quality soundproof and fire performance.


Sliding aluminium track can be easy to move and park panel.


Top hanging system without floor track. (No need floor guide).


Manual system easy to operate.


Environmental protection material MDF board.


Application to office,banquet hall,classroom,gallery and etc.


Passing door easy to be in or out of workplace.

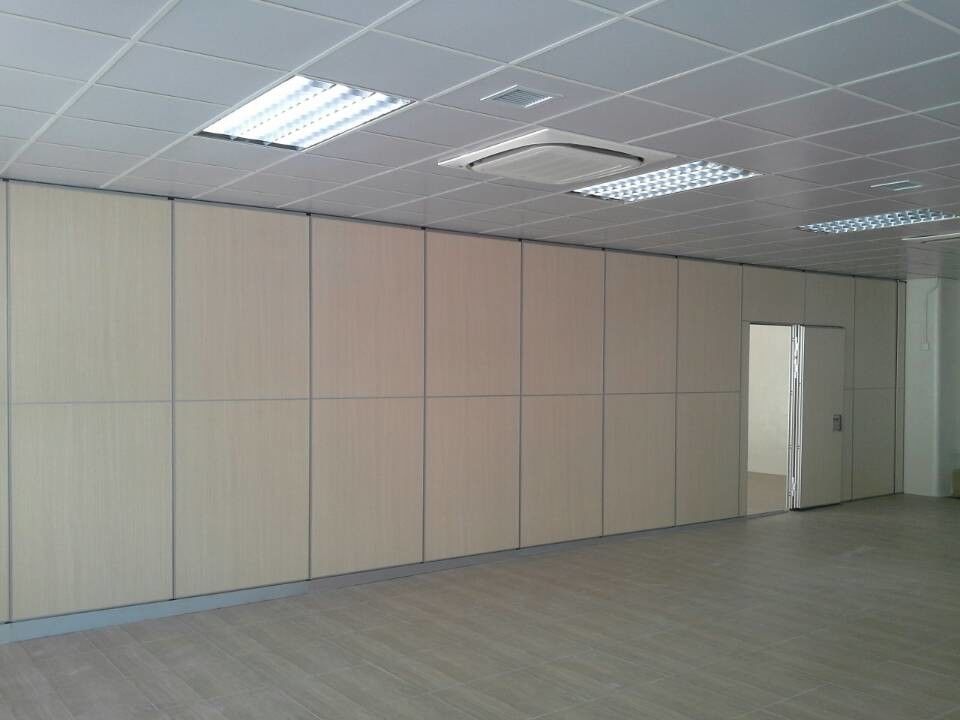

Residential Movable Partition Walls Top Hanging System Without Floor Track 0


Technical information:



Panel Suspension Top hanging system without the need for a floor track.
Panel Width Each panel 600mm-1200mm.
Track Aluminum Or Steel Track
Roller on panel Single or Double Roller
Panel Frames Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.
Top and bottom seals Top and bottom pressure retractable seals ensure effortless moved and locked.
Module 700mm - 1200mm maximum.
Panel stacking Numerous panel stacking options for complete flexibility.
Panel Surface MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes Satin anodized or polyester powder coating to all exposed aluminium components available in a wide range of colour as standard.


Structure:


The operable wall structure is composed of aluminum profiles, sheets of treated particleboard or MDF and insulation. The combined structure forms a panel that has a total thickness of 85mm and depending on the insulation material ensures a soundproof resistance of 40-49 dB (decibels).



When the operable folding wall system is supported at the ceiling it runs along an adjustable aluminum upper track that is equipped with bearings inside of carriages. This enables the walls height to be adjusted by 15 mm. The carriages are installed on every second wall panel and are located at the center of the panel.



In the case that the folding wall is supported by the ground, an aluminum track is installed on the floor where the carriages move the wall and at the top there is a guiding track. The height is also adjustable by 15 mm.

At the end of the wall, a jamb profile is installed to close the last panel and which is also used as a door. This, together with the jamb is installed to start the wall and allows for the walls width to be adjusted 20 mm.

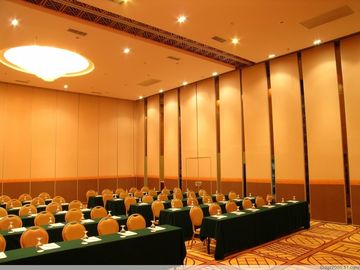

Residential Movable Partition Walls Top Hanging System Without Floor Track 1



Advantage:



The movable walls are a fine investment to make, no matter how much space you have available! Here, we have developed a wealth of knowledge and expertise over the years, installing movable walls and folding partitions, so you can rest assured that you’re in capable hands.



Specializing in design, manufacture and installation, we make sure that your movable walls are installed correctly, providing you with a temporary solution for dividing areas within your office. At movable Partitions, we accommodate the needs and requirements of all client’s, meeting and exceeding criteria, wherever possible.



Operation:



When more flexibility is needed, multidimensional panels make it easy to rearrange the space. The system makes it possible to manually move the individual panels over multiple axes and thus to follow straight, curved or even crossed rails. As long as they remain on the same floor, the panels can be moved as far as a rail can drive them, whether for packing or storage.
