Melamine Surface Movable Banquet Hall Partition Wall , Sliding Acoustic Room Dividers
Product Details:
| Place of Origin: | China,Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 85 mm movable partition wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 97 / 121 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Color: | Multi Color | Open Style: | Sliding |
|---|---|---|---|
| Position: | Commercial | Height: | 6 M |
| Thickness: | 85 Mm | Width: | 500-1200 Mm |
| Panel Type: | Melamine | Application: | Banquet Hall,conference Room |
| Function: | Soundproof | ||
| High Light: | movable walls on wheels,acoustic movable walls |
||
Product Description
Sliding Acoustic Room Dividers,Movable Wall System
Description:

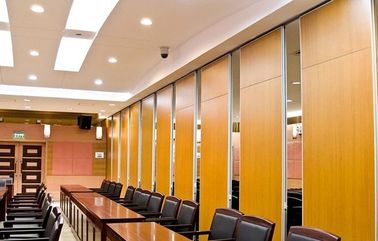

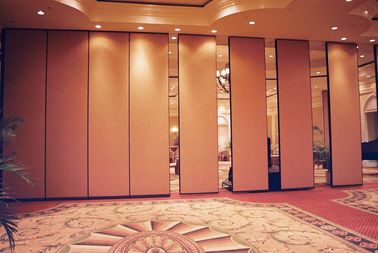

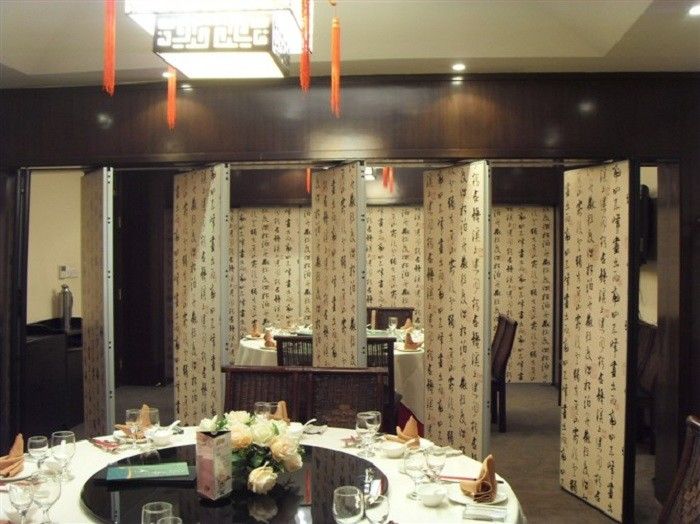

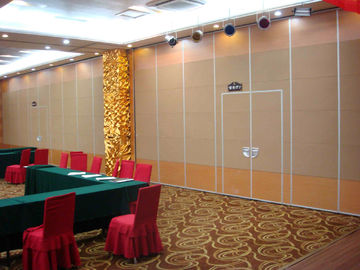

The activity screen is a movable wall that can be easily dismantled and reloaded, and is often found in large spaces such as hotels, exhibition halls, restaurants, and offices.
Movable wall can also be used as mobile screens, movable partitions, and track partitions. It is a kind of movable wall that can separate large spaces into adjacent small spaces. It can serve as a common wall and increase the function of large spaces. This screen is generally fire-resistant, flexible and easy to install and can be recycled.
There are 65, 85, 100 types of active screens, as well as G80 models with semi-glass and telescopic G40 models.
Feature:
Top hung without track at floor level.
Retractable acoustic seals at top and base operated either by quick release handle or semi-automatically with controls.
Single or two point suspension for center or remote parking options.
Variable track arrangements for corner, three or four way abutments.
Technical information:
| TYPE | BG65 | BG85 | BG100 | |
| Panel suspension | Top hung only | |||
| Track system | Single or twin point | |||
| Panel thickness | 65 mm | 85 mm | 100 mm | |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. | ||
| Max height | 4000mm | 6000mm | 18000mm | |
| Panel width |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
|
| Frame | Aluminum | Aluminum | Aluminum | |
| Surface material | 9mm | 9mm | 12mm | |
| Fire safety | Optional class I | Optional class I | Optional class I | |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | |
| Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | |
| Operation of seals | Manual, with supplied operating handle | |||
| Locking | Optional lock to passing doors | |||
| Passing doors | Single open in one panel or double open in two panel | |||
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw | |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M | |
Operation:
When moving a wall panel there is a 22.5-25 mm gap between the top of the panel and the underside of the head track, there is a similar gap between the bottom of the panel and the floor.
Once a panel is positioned, acoustic integrity is maintained along the top and bottom of the panel by extending pressure seals.
The pressure seals are extended and retracted by a single 180°turn of a removable operating handle.
Final closure of the wall is achieved by extending a telescopic sleeve on the last panel. This action simultaneously extends the top and bottom seals.
FAQ:
1.How to select the suitable movable wall for your site?
We have 4 types of movable wall, 65 type, 85 type, 100 type and 125 ultra-high type.
You can choose the right movable wall upon the height and soundproof requirement as following.
65 type- Max height: 4000 mm,soundproof:32db to 43 db.
85 type- Max height: 6000 mm,soundproof:38db to 50 db.
100 type- Max height: 9000 mm,soundproof:42db to 55 db.
125 type- Max height: 17000 mm,soundproof:42db to 55 db.
2.What you should do on site?
A beam should built on site for track installation. The minimum distance leaving for track installation from false ceiling to top ceiling is 180 mm.
3.How to install?
We will provide the installation manual and video guiding the installation job.We can also dispatch the installation engineer supervising the installation as request.
4.What is lead time?
The lead time is 7 days to 10 days.
5.How to transport?
Sea transport is a common mode of transportation.In an emergency, can be air freight.
