|Height:||4 M||Service:||OEM Service|
|Metal Type:||Aluminium||Thickness:||65 Mm|
|Open Style:||Sliding||Width:||500-1200 Mm|
The partition wall is a good consideration of the propagation of sound waves, greatly improving the soundproofing of the partition. Partition models 65 type (65mm thick), 85 type (85mm thick), 100 type (100mm thick), ultra-high type, partition reference plane material gypsum board, fiber board, glass magnesium board, color steel plate, sound-absorbing board, A variety of panels, such as melamine panels, are available for selection. The structure and frame are made of 6063-T6 reinforced aluminum alloy. The installation height is less than 10,000mm.
Maximize your space and versatility your workplace.
Supply high quality soundproof and fire performance.
Sliding aluminium track can be easy to move and park panel.
Top hanging system without floor track. (No need floor guide).
Manual system easy to operate.
Environmental protection material MDF board.
Application to office,banquet hall,classroom,gallery and etc.
Passing door easy to be in or out of workplace.
|Panel Suspension||Top hanging system without the need for a floor track.|
|Panel Width||Each panel 600mm-1200mm.|
|Track||Aluminum Or Steel Track|
|Roller on panel||Single or Double Roller|
|Panel Frames||Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.|
|Top and bottom seals||Top and bottom pressure retractable seals ensure effortless moved and locked.|
|Module||700mm - 1200mm maximum.|
|Panel stacking||Numerous panel stacking options for complete flexibility.|
|Panel Surface||MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.|
|Finishes||Satin anodized or polyester powder coating to all exposed aluminium components available in a wide range of colour as standard.|
All of our operable wall systems are individually tailored to your exact requirements and are therefore the perfect solution when high acoustic performance and a feeling of quality are the main priorities.

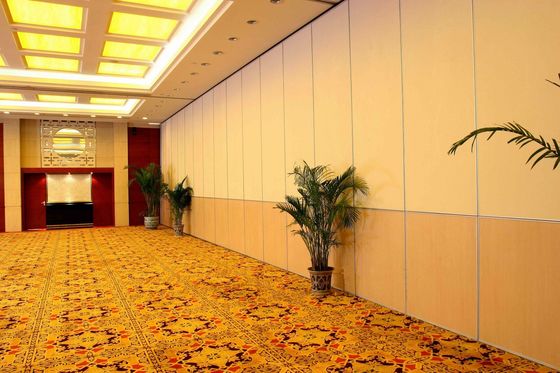

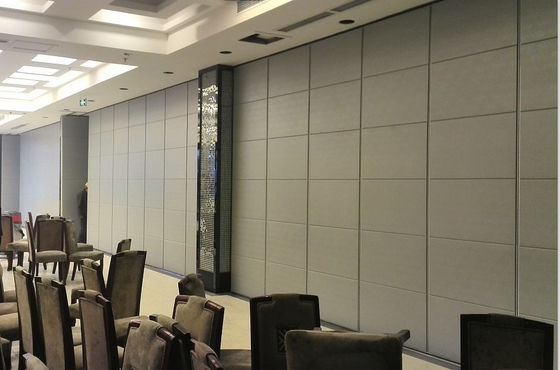

Whilst widely used within hotel banqueting suites and conference centers with large muti-functional spaces they are also ideally suited for use within offices to give added flexibility to meeting, training and conference rooms.
The individual panels can be easily operated by handle because they are ceiling hung there is no potential obstruction from floor track to worry about giving maximum flexibility on how the space is used.
Our Top Hung acoustic operable walls were designed specifically with the office refurbishment sector in mind. With sound attentions available from 37dB RW to 53 dB RW, there is no acoustic issue between rooms that the Top Hung Operable Wall cannot cater for.
Sound reduction ratings are often quoted from laboratory test results which are misleading in respect of final performance values. They are merely useful for initial specification purposes. Independent on-site tests as carried out by partners are recommended as in-situ results will differ from laboratory test certification and are therefore the only true guide to achievable sound attenuation.
1. Remember that the rails are loose enough on all brackets. Guaranteed track pause time.
2. Tighten all rail connections and adjust the rail height correctly. The rail mounting direction must also be straight and horizontal.
3. In the installation of track facilities, sound insulation and mineral wool are necessary for installation.
4. There are "L", "T" and "Ten" spurs for the track. There are left and right points for the connection of the steering. It is generally not recommended to use the "10" spur. L and T are trimmed to their corresponding size, and their position is indicated by a numerical marker.
