Product Details:

Place of Origin: Guangdong
Brand Name: BANGE
Certification: ISO9001
Model Number: 85 mm movable partition walls

Payment & Shipping Terms:

Minimum Order Quantity: 10 square meters
Price: US Dollars 80 - 120 per square meters
Packaging Details: Carton package, MDF batten on four section sides , foam board on both front face.
Delivery Time: 15-20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 square meters per month
Get Best Price Contact Now

Detail Information

Open Style: Sliding Product Name: Movable Partition Walls
Feature: Sound Proofing Size: 85 Mm
Color: Accept Customized Application: Office,hotel,conference Room
Panel Width: 500 Mm--1230 Mm Door Material: Melamine Board
Surface: Melamine,leather,fabric,plywood Position: Interior
Width: 85 Mm(3 1/4 Inch)
High Light:

movable partitions systems

,

acoustic movable walls

Product Description

Banquet Hall Commercial Decorative Aluminium Soundproof Movable Partition Walls



The details about sliding partition walls



Banquet hall partition is a kind of sliding wall that can divide a large space into a small space. It can serve as a multi-purpose room with multiple functions.Top hanging system without floor track. Also is seal and has good sound insulation.



Our factory can provide four series product let you have a choosing. Panel height is from finished floor to ceiling or beam. Panel width is from wall to wall.



Series 65



It is thickness 65 mm (2 2/4 inch) per panel. Maximize height is about 4.2 meters.

Soundproof feature is about 32 dB to 43 dB.



Series 85



It is thickness 85 mm (3 1/4 inch) per panel. Maximize height is about 6 meters.

Soundproof feature is about 38 dB to 50 dB.



Series 100



It is thickness 100 mm (3 15/16 inch) per panel. Maximize height is about 8 meters.

Soundproof feature is about 42 dB to 53 dB.



Series ultra height



Maximize height is about 15 meters.

Soundproof feature is about 42 dB to 53 dB.

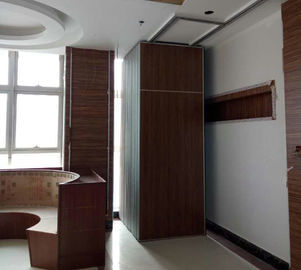

Durable Aluminium Acoustic Movable Partition Walls For Commercial Decorative 0



The specification of movable partition walls



Mainly structure is generally composed of aluminium track, rollers, sealing strips, aluminium frames, reference surface materials, sound insulation materials, transmission rods, and sealant strips.



When moving the movable partition walls there is a 22.5-25mm gap between the top of the panel and the

underside of the head track, there is a similar gap between the bottom of the panel and the floor.

Once a panel is positioned, acoustic integrity is maintained along the top and bottom of the panel by extending pressure seals.



The pressure seals are extended and retracted by a single 180°turn of a removable operating handle.Final closure of the wall is achieved by extending a telescopic sleeve on the last panel. This action simultaneously extends the top and bottom seals.



There are wide of range face finishes are available :melamine faced MDF or Plywood, fabric, carpet, fabric, artificial, leather,wood veneer, high pressure laminate,Formica ,acoustic panel,white boad ect., Panels can also be supplied unfinished for field decoration,Standard frame color is clear anodized aluminum,custom powder coating colors are available.



BUNGE movable partition walls works with Architects,designer,developers,contractores and owners in design product selection,decorative finishes,project management and after-sales warranty services as her one-stop solution business service.

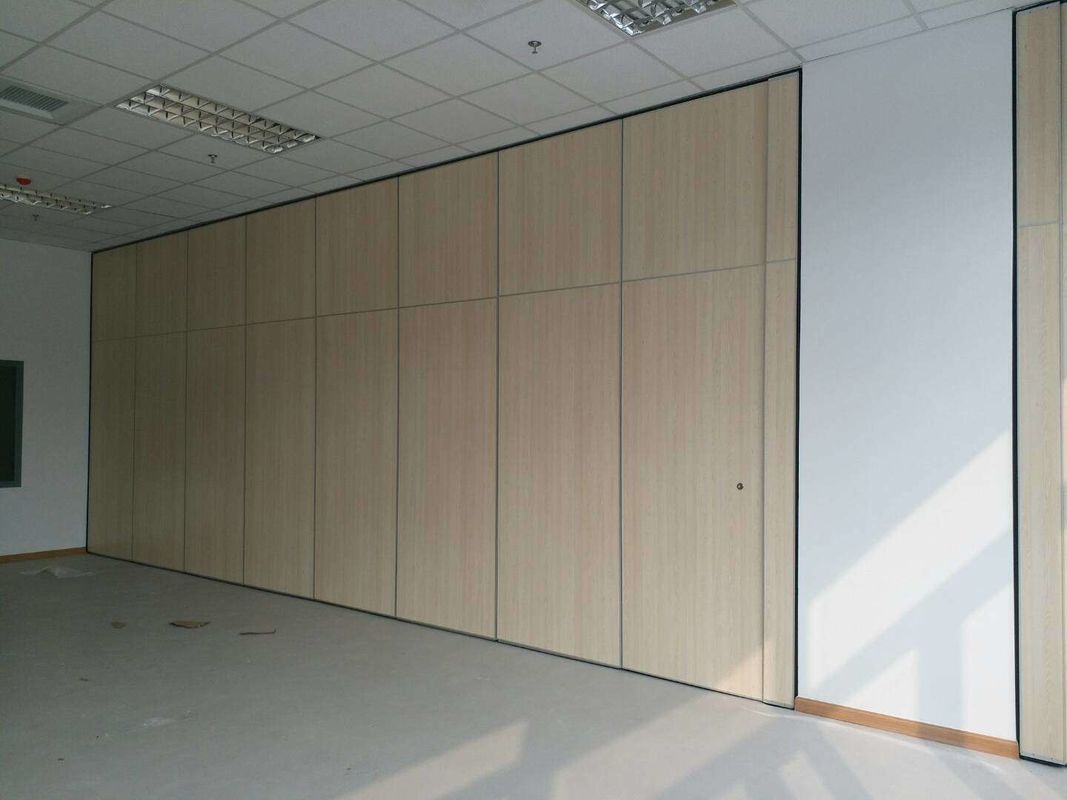

Durable Aluminium Acoustic Movable Partition Walls For Commercial Decorative 1

Panel Suspension: Top hunge system without the need for a floor track.
Panel Width: Each panel 600mm-1200mm.
Track: Aluminum OR Steel Track
Rollor on panel Single or double roller
Panel Frames: Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.
Top&bottm seals: Top and bottom pressure retractable seals ensure effortless moved and locked.
Module: 700mm - 1200mm maximum.
Panel stacking: Numerous panel stacking options for complete flexibility.
Panel face: MDF,Plywood,woven fabric.Leather,Natural wood veneer, Melamine,Wood moldings, etc
Finishes: Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard.



1. Are you a trading company or a factory ?


Our company was established in Guangzhou city,. We are a manufacturer engaged in movable partition for more than 10 years. Welcome to pay a visit to our factory in Guzngzhou.



2.How can you guarantee the quality?


We provide three years warrenty.



3.How to finalize orders?


Please send your room drawing and provide requirements like partition surface finished and soundproof requirements, we will design the partition for free. After your confirmation, we can start production.



4.How long is the lead time

.
Normally 10-25 days upon receiving the deposit, base on the quantity 300 SQM



5.Can you do the installation?



Yes, we can send engineer to guide installtion, details please contact us.

6.How is the soundproof quality ?



From 30dB to 55dB, depends of which type and what partition surface finished you need. Contact us and we will provide professional suggestions.

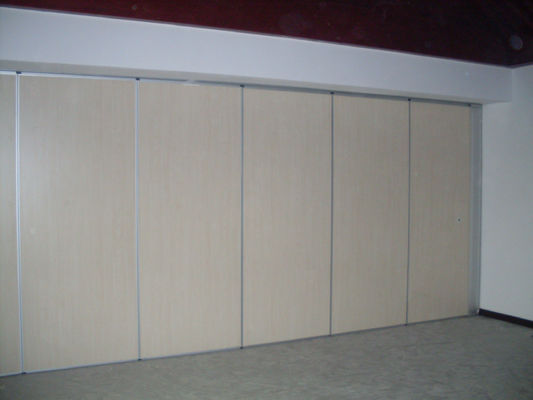

Durable Aluminium Acoustic Movable Partition Walls For Commercial Decorative 2
