|Height:||4 M||Service:||OEM Service|
|Metal Type:||Aluminium||Thickness:||65 Mm|
|Open Style:||Sliding||Width:||500-1200 Mm|
The movable sound insulation wall is a set of soundproof walls composed of every single partition. Each piece is equipped with two horizontal hanging wheels. It depends on the horizontal hanging wheel to make the hanging travel along the track.
It can make a 90 degree right angle turn and travel freely. Promote to other space collections, according to different space use needs, separated by multiple independent small space. The vertical contact points of each single piece partition are connected by concave and convex positions. The sealant strips are embedded and the upper and lower tops are equipped with a retractable soundproof seal mechanism.
Individual interlocking panels.
High acoustic rating as standard.
Extensive range of surface finishes.
Full versatility on use of space.
Ease of operation.
Excellent sound insulation.
|Panel Suspension||Top hanging system without the need for a floor track.|
|Panel Width||Each panel 600mm-1200mm.|
|Track||Aluminum Or Steel Track|
|Roller on panel||Single or Double Roller|
|Panel Frames||Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.|
|Top and bottom seals||Top and bottom pressure retractable seals ensure effortless moved and locked.|
|Module||700mm - 1200mm maximum.|
|Panel stacking||Numerous panel stacking options for complete flexibility.|
|Panel Surface||MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.|
|Finishes||Satin anodized or polyester powder coating to all exposed aluminium components available in a wide range of colour as standard.|
All of our operable wall systems are individually tailored to your exact requirements and are therefore the perfect solution when high acoustic performance and a feeling of quality are the main priorities.
Whilst widely used within hotel banqueting suites and conference centers with large muti-functional spaces they are also ideally suited for use within offices to give added flexibility to meeting, training and conference rooms.
The individual panels can be easily operated by handle because they are ceiling hung there is no potential obstruction from floor track to worry about giving maximum flexibility on how the space is used.
Installing track system:
1. As shown on the drawing, check the track that the track parts are assembled on the floor before installation.
2. Mark the track line and place the bracket in a specific position.
3. Mount the rail brackets to the ceiling.
4. Check if the mobile partition is rigidly fixed on the track. When the rails and brackets must be loosely stored in the storage area, so that the bracket plate can be moved to other places.
5. At the end, measure the proper location of the storage track before adjusting the main track facility. This is very important for the intersection placement.
The operable wall structure is composed of aluminum profiles, sheets of treated particleboard or MDF and insulation. The combined structure forms a panel that has a total thickness of 85mm and depending on the insulation material ensures a soundproof resistance of 40-49 dB (decibels).
In the case that the folding wall is supported by the ground, an aluminum track is installed on the floor where the carriages move the wall and at the top there is a guiding track. The height is also adjustable by 15 mm.

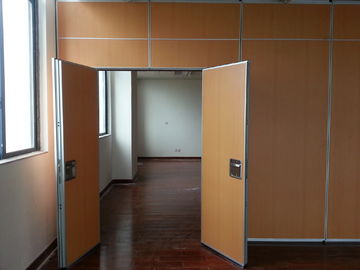

At the end of the wall, a jamb profile is installed to close the last panel and which is also used as a door. This, together with the jamb is installed to start the wall and allows for the walls width to be adjusted 20 mm.
