Acoustic Movable Hotel Acoustic Partition Wall With Hanging System Sliding Roller
Product Details:
| Place of Origin: | China,Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 85 mm wooden partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 94 / 128 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Service: | OEM Service | Height: | 6 M |
|---|---|---|---|
| Width: | 500-1200 Mm | Surface: | Melamine,leather |
| Open Style: | Folding | Function: | Soundproof |
| Application: | Hotel,restaurant | Color: | Multi Color |
| Position: | Commercial | Sliding Style: | Sliding |
| Metal Type: | Aluminium | Thickness: | 85 Mm |
| High Light: | acoustic operable partitions,acoustic operable wall |
||
Product Description

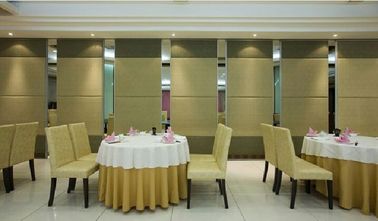

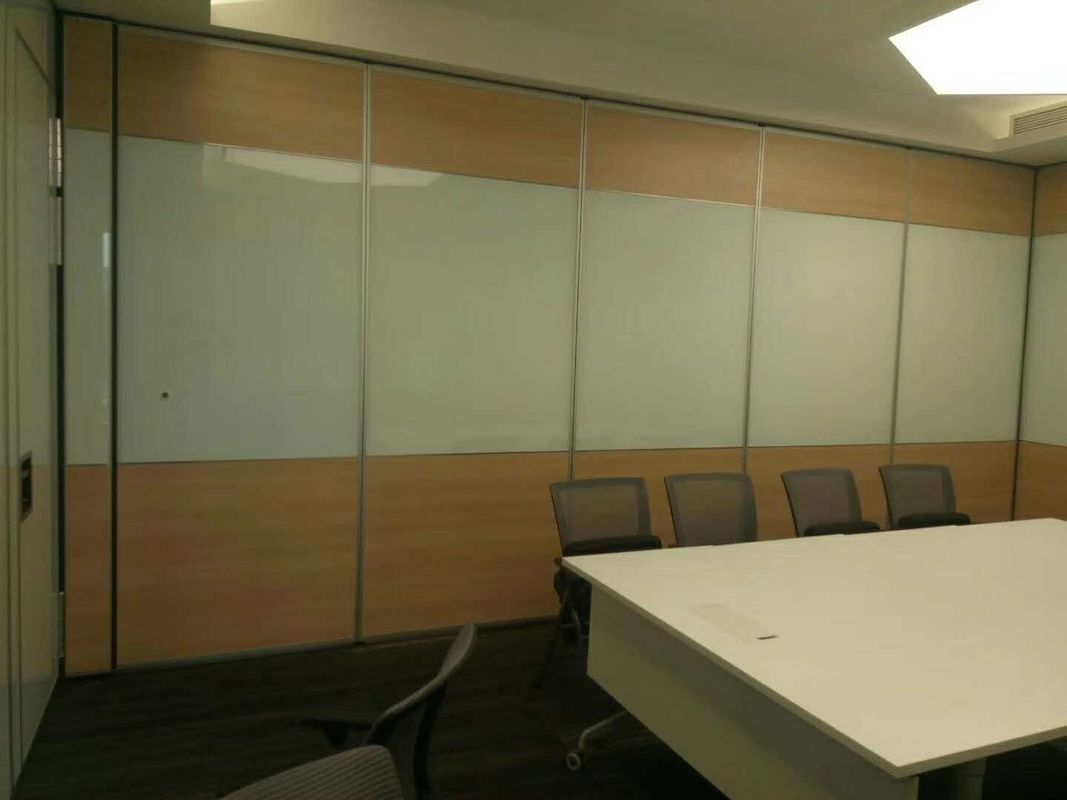

Sliding Roller Acoustic Movable Hotel Wooden Partition Wall
Specification:
Movable wooden partition wall offer reliable solutions for your space division requirements. We have been devoted to the act or process of creating quality, functional areas for residential, commercial and industrial applications. The strength of our company is based upon a combination of our 10 years experience, representing established manufacturers committed to quality, an attention to detail, and an installation crew bent on completing the job right and on schedule.
Staying current with the latest architectural and engineering trends as well as a hands on approach from conception to completion has also helped keep clients coming back for more. Give us a call and talk to our professionals about folding walls, accordion doors, roll-up partitions and flexible space design.
Acoustic performance:
Our sliding partition walls are consistently rated with the highest acoustical performance in the industry in real life environments not just in the lab.
Identify Sound Flanking paths to reduce sound transmission to and from the entire acoustical envelope,walls, ceiling, floors, air ducts, windows, etc.
Determine optimal sound absorbing material to help minimize the level of sound generated in your space.
Sound proofing maximization.
Provide stylish acoustical design solutions.
Sound testing provided by us or independent sound testing company.
Feature:
Environmental protection and light material.
Top hung system without the need for a floor track.
Retractable top and bottom seals ensure effortless movement of panels.
Concealed or exposed panel edge profiles.
Numerous panel stacking options for complete flexibility.
Extensive range of surface finishes available, easy construction and transportation.
The system offers various levels of sound reduction.
Combines elegance with robust construction.
Improved sound insulation with a reduced wall thickness.
Space savings in the parking area.
Low specific weights with obvious structural advantages.
Technical information:
| TYPE | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | ||
| Track system | Single or twin point | ||
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. | |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
| Frame | Aluminum | Aluminum | Aluminum |
| Surface material | 9mm | 9mm | 12mm |
| Fire safety | Optional class I | Optional class I | Optional class I |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
| Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle | ||
| Locking | Optional lock to passing doors | ||

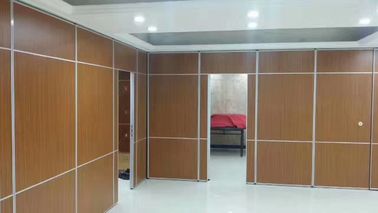

| Passing doors | Single open in one panel or double open in two panel | ||
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
Installation details:
1. Before the renovation, the on-site measurement must be performed. According to the measurement data and the construction structure of the site, the design drawings shall be issued by the construction party, and the two parties shall confirm to enter the next step without any doubt.
2. Partition production is usually completed by a design company in its own factory. The installation engineering part is produced on site. Therefore, after confirming the design drawings, the requirements for glass thickness, materials, hardware accessories, and borders shall be analyzed and explained.
3. Pay attention to the strong and weak power engineering during construction, because he not only concerns the installation and wiring of the company's supporting facilities in the future, so he must find a professional qualified cabling company, and have professional and technical personnel to carefully measure the construction site, and then All the drawings on the drawings show the status of reserved switches, sockets, and the direction of various lines.
4. When installing the active partition, be sure to pay attention to the configuration of the air conditioner's reasonable position, especially the central air conditioner. Special attention must be paid to keeping the air outlet and return air outlet in each functional area.
